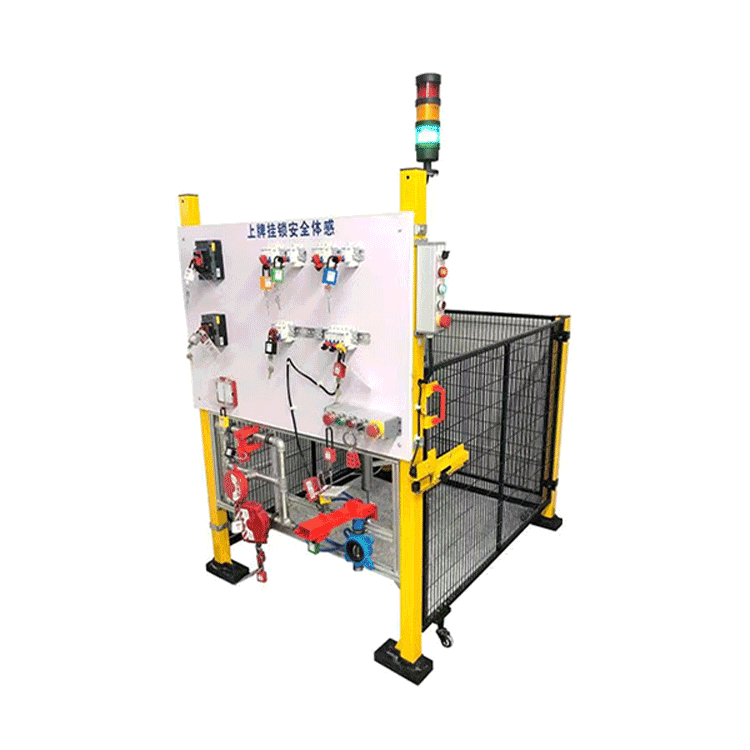

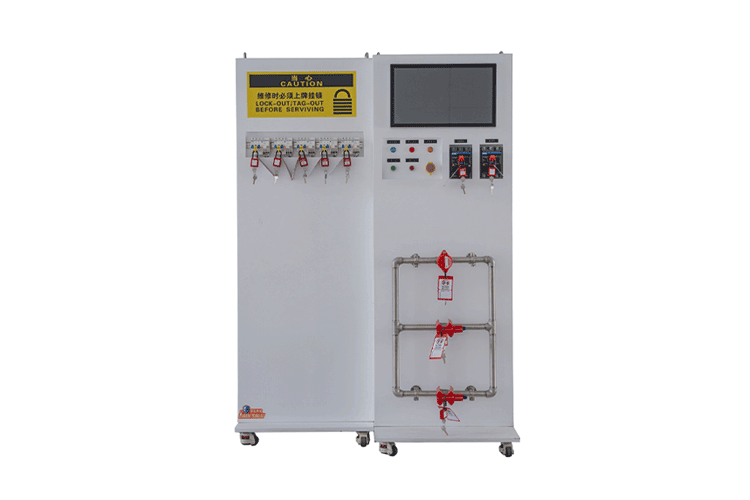

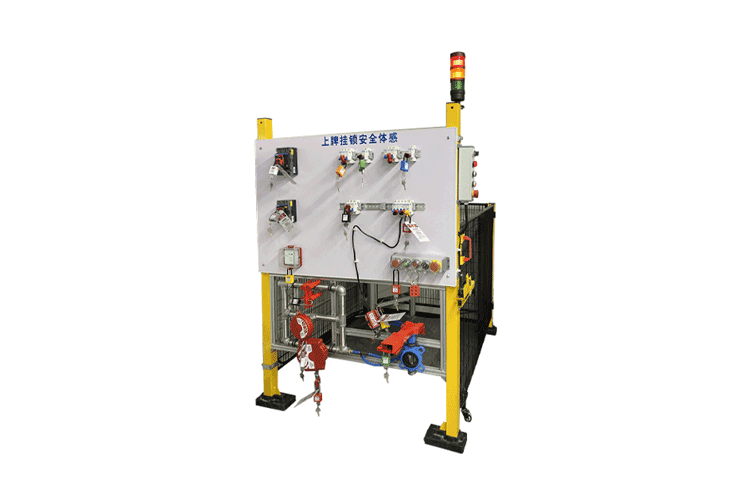

Registered Lock Security and Comfort Device

Feature Brief

Objective: The locking and unlocking tactile experience of various types of safety locks (electrical locks, gate locks, cable locks, etc.), the locking operation experience of different locks, and the setup of the safety lock management board. Simulate the "danger" caused by accidental operation when the lock is not tagged.

Process Design

1. The posting and locking system is a safety measure taken to protect the operator's personal safety during equipment adjustments and maintenance, preventing sudden machine startups. It involves locking the start mechanism and posting warning signs to prevent accidents.

2. Lockout/Tagout Procedure: Shutdown - Power Off - Disconnect Breakers - Lock配电箱 - Tag (Under Maintenance, Do Not Close) - On-site Supervision by a Designated Person - Conduct on-site safety confirmation.

Module Function Requirements

Key Technical Specifications

Model: HK-SS 150

Rated Voltage: AC 220V/50Hz/10A

Pressure: N/A

Dimensions: 1500*1200*2000mm

Weight: 200 Kg

Main Configuration
