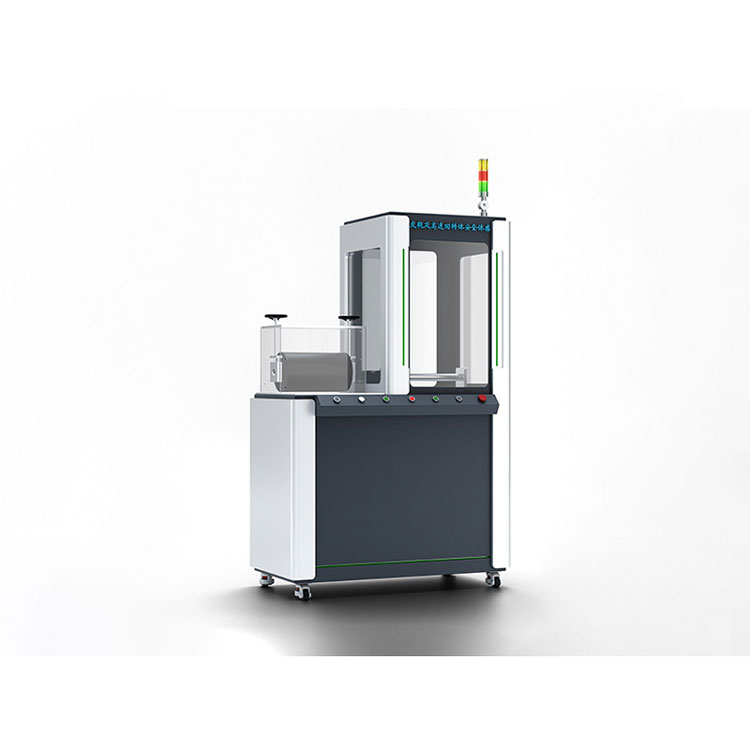

Skin roller and high-speed rotation safety sensory equipment

Feature Overview

This equipment is a safety sensory device for rubber rolls and high-speed rotating bodies, simulating the experience of mechanical gripping that occurs during the rotation of rubber rolls and high-speed rotating bodies.

Key Features: Understand the protective function of automatic safety gates. Recognize that rotating equipment continues to rotate due to inertia after shutdown, posing a risk of entanglement. This equipment consists of a protective cover, leather roller clamp, and high-speed rotating body entanglement and crushing.

Process Design

1. Place the experience equipment in the reserved position with an AC220V power outlet and plug in the power supply.

2. When ready for the experience, turn on the rotary switch on the left side of the device. The power indicator light will illuminate, and the device will be powered on. Wait for the device to complete initialization.

3. Click the roller start button, place the belt clamp roll demonstration tool, pull the tool tightly with both hands, and watch the roller shaft press and rotate to pull the tool into the machine until your hands can no longer resist the pulling force generated by the shaft, quickly hitting the safety sensor. This experience the dangers caused by the mechanical clamp, and also understand the effectiveness of the safety sensor.

4. Press the high-speed rotation body start button, manually feed the缠卷体验道具 slowly into the feeding opening of the protective cover above the equipment, where it is immediately wrapped and clamped onto the body of the rotation body upon contact. This demonstrates the significant danger associated with high-speed rotation bodies, as well as the risk of being wrapped even after the rotating equipment has stopped due to inertia. Learn the correct operational standards for machinery to avoid safety threats.

5. After completing the experience, shut off the power to complete one person's session.

Module Function Requirements

Key Technical Specifications

Model: HK-PG 120

Rated Voltage: AC 220V/50Hz/5A

Pressure: N/A

Rated Power: 600W

Dimensions: 1200*600*1950mm

Weight: 300 Kg
