Electrical Shock Injury Safety Sensory Center

Feature Overview

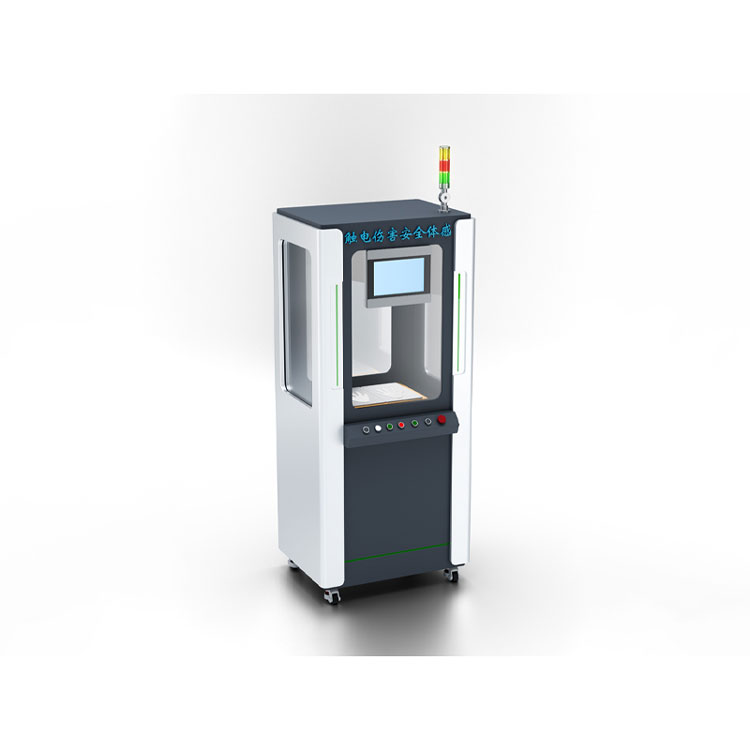

The name of this equipment is the Electric Shock Safety Sensory Simulator. It allows users to experience the sensation of electric shocks on the body under different dry and wet conditions, simulating the feeling of being electrocuted in various scenarios.

Purpose:

1. Familiarize yourself with basic electrical knowledge and the effects of electricity on the human body.

2. Hazards of electric shock.

Note: Safety voltage: 36V, 24V, 12V, 6V.

When a person comes into contact with an electrified object, electricity flows through the body, causing sensations like pricking, spasms, pain, and ventricular fibrillation, which can result in injury.

Training Program:

1. The experience of electric shock on the human body in a dry state.

2. Experience of electric shock when touching a wet body.

3. The experience of electric shock under humid conditions.

Process Design

Place the experience equipment in the reserved position with an AC220V power outlet and plug in the power.

When ready to experience, turn on the device's rotary switch, the power indicator light will illuminate, and the device will be powered on. Wait for the device to complete initialization.

Press the start button, place your hand on the iron plate first, gradually increase the current, and note the reading when you feel numbness in your palm; then, place your hand on a damp cloth and note the reading when you feel numbness. This will demonstrate how different levels of dryness and wetness affect the tactile sensation on the human body.

After experiencing, turn off the power to complete one person's experience at a time.

Module Function Requirements

Key Technical Specifications

Model: HK-CD 80

Rated Voltage: AC 220V/50Hz/5A (Touch Voltage: 24V)

Pressure: N/A

Rated Power: 800W

Dimensions: 800*600*1950mm

Weight: 120 kg

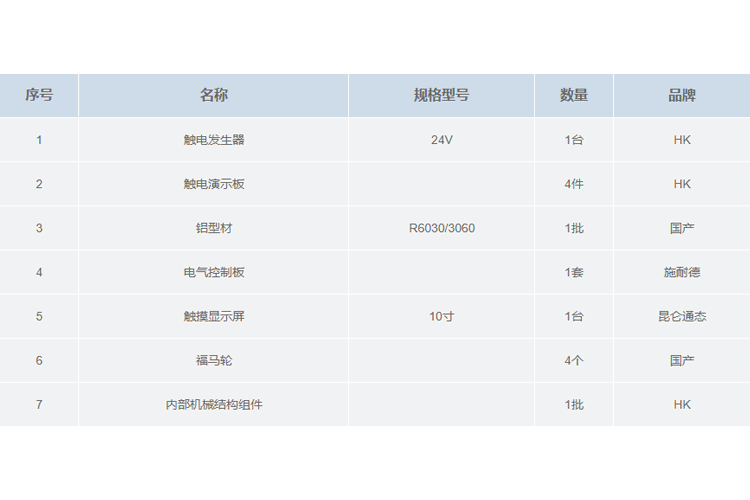

Main Configuration
