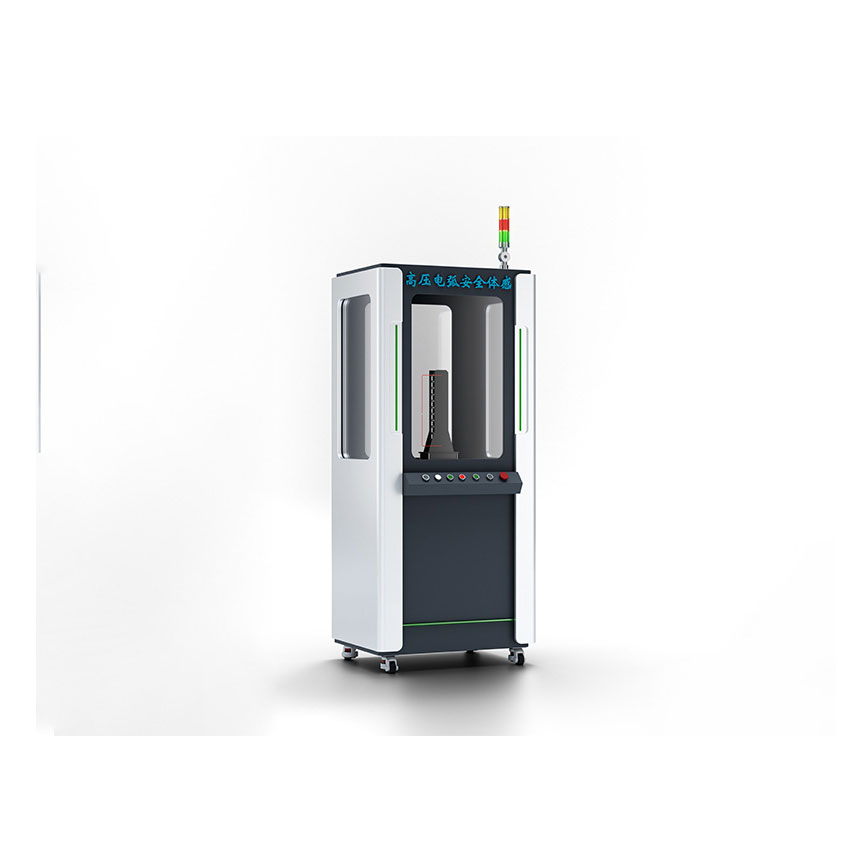

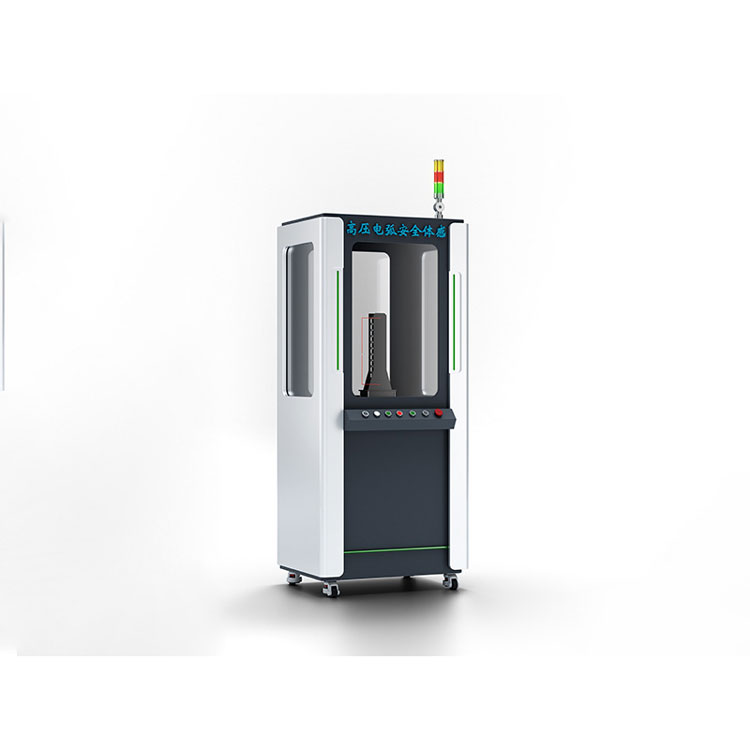

High-voltage Arc Safety Sensing Equipment

Feature Overview

The equipment demonstrates the generation of high-voltage arcs, allowing trainees to directly understand how high-voltage arcs are produced. Demonstration of sensory experience: Through the demonstration of high-voltage arcs, gain a direct understanding of the harm caused by arcs, actively implement safety protection measures, and prevent accidents from occurring.

Process Design

Position the experience equipment in the reserved location with an AC220V power outlet and plug in the power supply.

When ready to use, turn the switch on the left side of the device. The power indicator light will illuminate, and the device will be powered on. Wait for the device to initialize.

Press the arc start button, and the device will generate high voltage electricity. The arc produced does not need to be in complete contact to cause "high voltage arc shock." Press the second arc start button to observe a strong arc between the two conductors and understand the harmfulness of the arc.

After experiencing, turn off the power, and complete one person's experience at a time.

Module Function Requirements

Key Technical Specifications

Model: HK-GY 80

Rated Voltage: AC 220V/50Hz/10A

Pressure: N/A

Rated Power: 1000W

Dimensions: 800*600*1950mm

Weight: 120 Kg

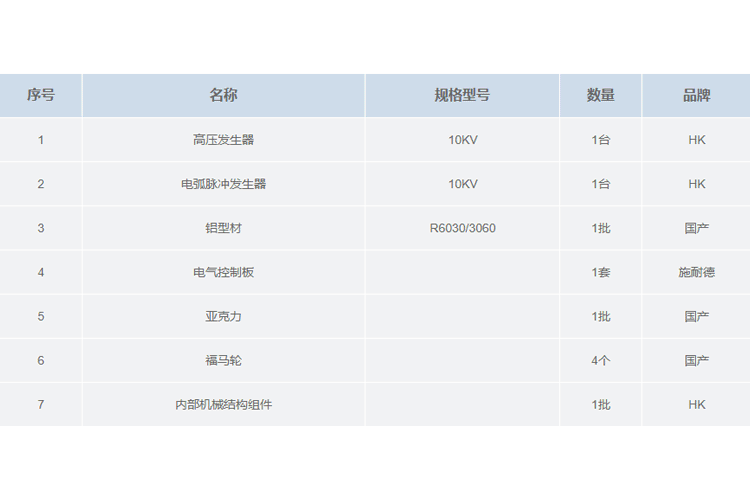

Main Configuration
