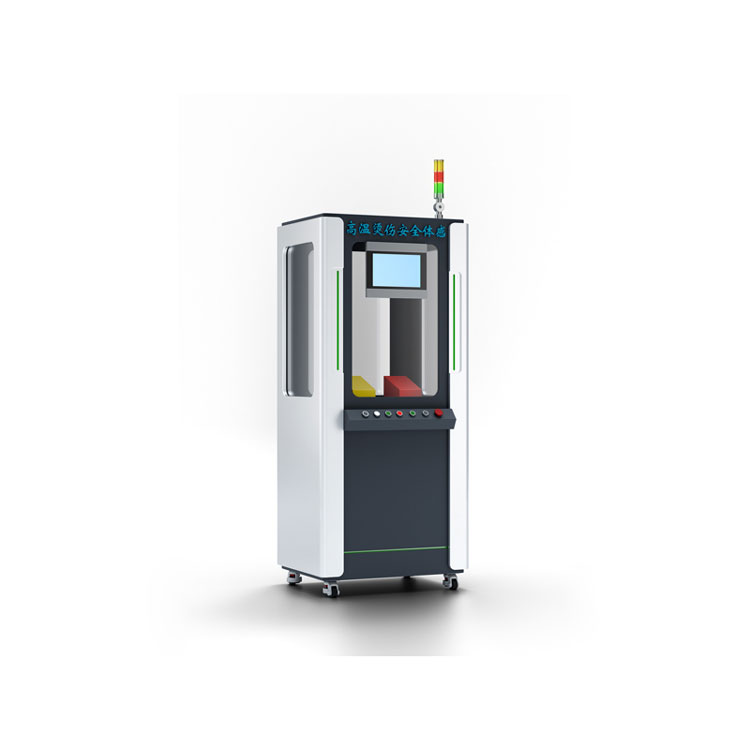

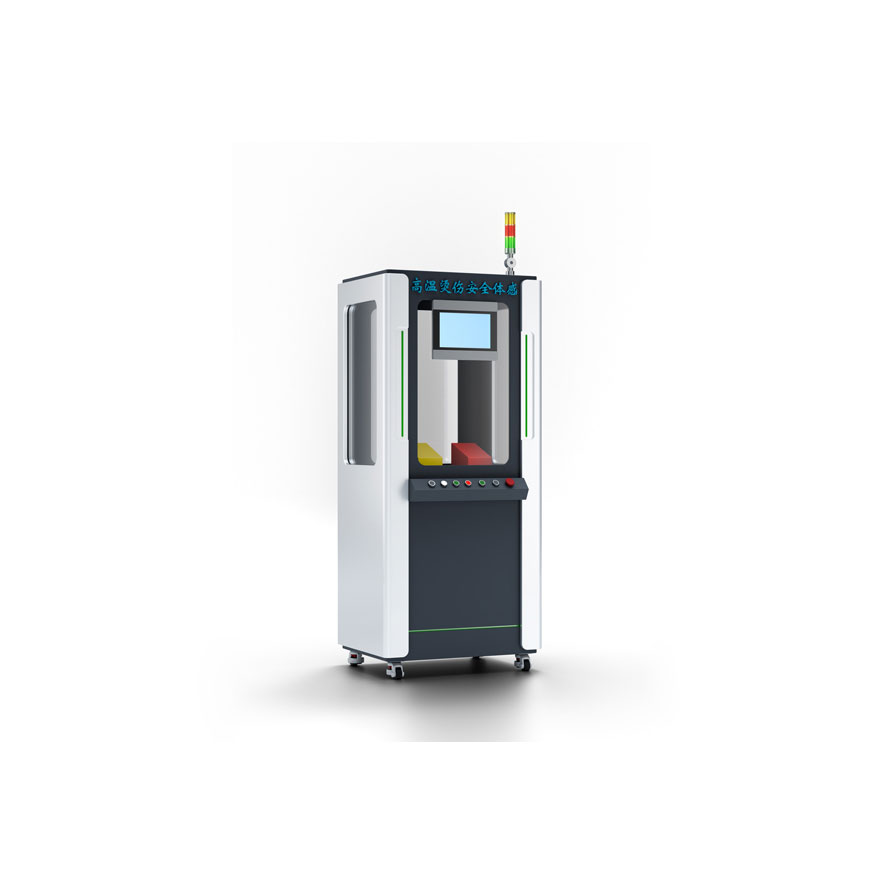

High-Temperature Burn Safety Sensory Equipment
Feature Overview
This device is a high-temperature burn safety sensory simulator, which provides experiences with different burn temperatures, different grades of high-temperature gloves, identification and learning of various high-temperature hazards in the factory, and human experiences at different temperature levels to understand the sensation of high-temperature burns.
Equipment Features:
1. Smart display function, showing the temperature value as the device's heating temperature.
2. Safety protection features, limiting the temperature range to ensure a safe experience.
3. Smart control feature, innovatively using infrared touch operation to control the device's working status.
Application Range: This equipment is suitable for high-temperature burn hazard sources in various industries, including indoor and outdoor safety experience centers, factories, schools, fire departments, and other places that require safety education.
Process Design
1. Place the experience equipment in the reserved spot with an AC220V power outlet and plug in the power.
2. When preparing for the experience, turn on the toggle switch on the left side of the device. The power indicator light will illuminate, indicating the device is powered on. Wait for the device to complete initialization.
3. Press the left heating start button, and touch the heating touchpad with both hands or one hand to experience the low-temperature heating. Then, press the right heating start button to enjoy the high-temperature heating experience. Put on gloves and repeat the above steps to feel the sensation of wearing high-temperature gloves and understand their importance.
4. After the experience is complete, turn off the power to finish one person's session.
Module Function Requirements
Key Technical Specifications
Model: HK-GW 80
Rated Voltage: AC 220V/50Hz/10A
Pressure: None
Rated Power: 800W
Dimensions: 800*600*1950mm
Weight: 100 Kg
Temperature Control Range: RT+10～100℃
Application Environment Conditions:
Ambient Temperature: 50℃～+30℃ (average temperature within 24 hours ≤ 30℃)
Ambient Humidity: ≤85%RH

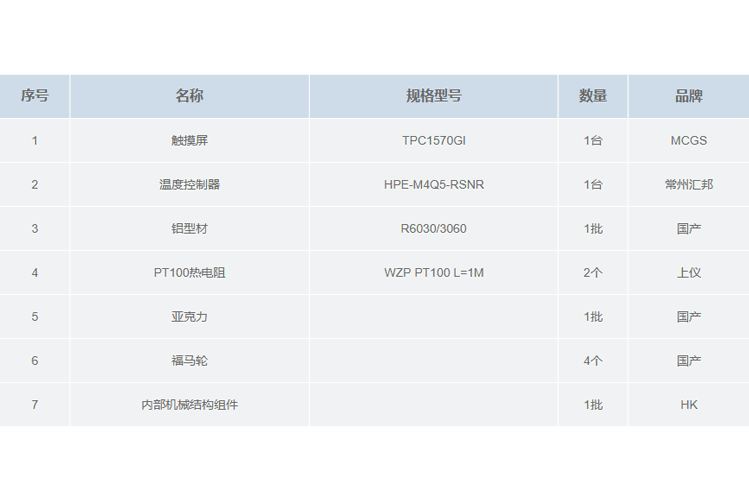

Primary Configuration
