Description

It includes both with and without graphite. Particle sizes range from 1.0 to 1.5mm, 1.5 to 2.0mm, and 2.0 to 3.0mm. It melts and rapidly expands within the injection sleeve and at the top of the injection head, forming an excellent lubricating film inside the sleeve due to its capillary action. It is easy to use and does not require the traditional spray systems with dropper pumps used for oil-based or water-based products.

Appearance: White, yellow, clear (not graphite), granular.

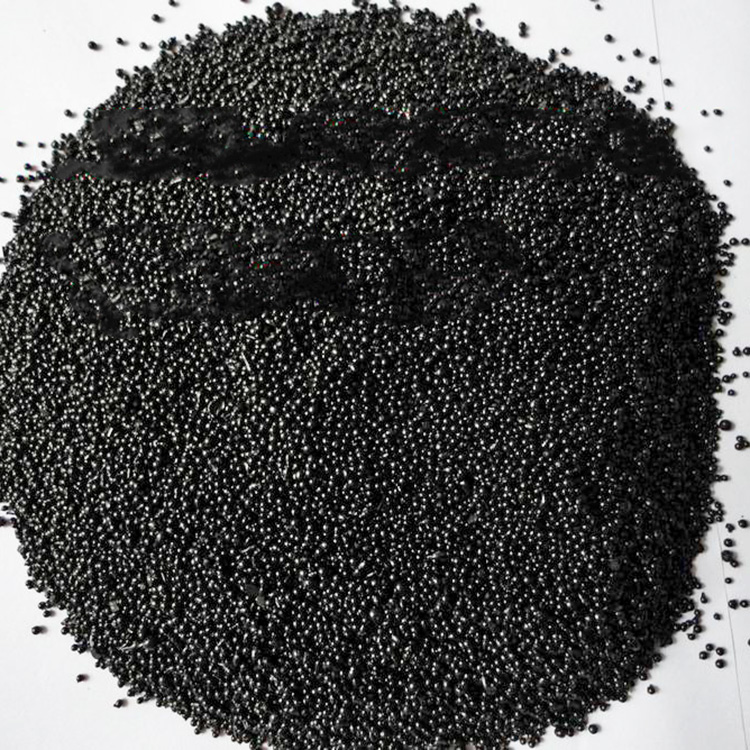

Application Range: Injection sleeves with diameters ranging from 50-120mm; Black Granules: Contain graphite, spherical beads.
Density at 20℃: 0.5-0.7 cm³.
Application Range: Injection sleeves with diameters ranging from 50 to 160mm.

【Usage Instructions】

Add granules to the casting chamber using a particle emitter.
Usage based on different punch diameters
60mm 0.4-0.5g
80mm 0.6-0.8g
100mm 1.0-1.3g
140mm 1.7-2.5g
150mm 2.2-4.0g
The determination of usage depends on the casting weight and requires experience-based trial and error.

【Advantages】

1. Free from contamination typically produced by general oil lubricants.
2. Reduce the incidence of casting pores.
3. Extends the service life of the plunger tube and reduces the adverse effects caused by friction.
4. The lifespan of die-casting punches for factory use is generally doubled compared to those lubricated with pure oil.
Increase jet speed.
6. Complete consumption of granules during casting, free of lubricant contamination.
7. The die-castings have no oil stains on the surface, presenting a clean and glossy finish.
8. During the reuse of gating systems, runners, and slabs, there should be no oil stains, no smoke, and no air pollution.
9. No wastewater treatment required, no water cooling system or cleaning injection nozzles needed.
10. Extremely economical, saving on expenses.
11. Enhance process safety.
