F23-A+ Dual-speed Six-way Crane Remote Controller, Chain Hoist Remote Controller, One-touch Dual-speed Remote Controller





F23-A+ Six-way (dual speed up/down) crane remote control
Taiwan Yu Ding Remote Control, Industrial Remote Control, Crane Remote Control, Vehicle Remote Control

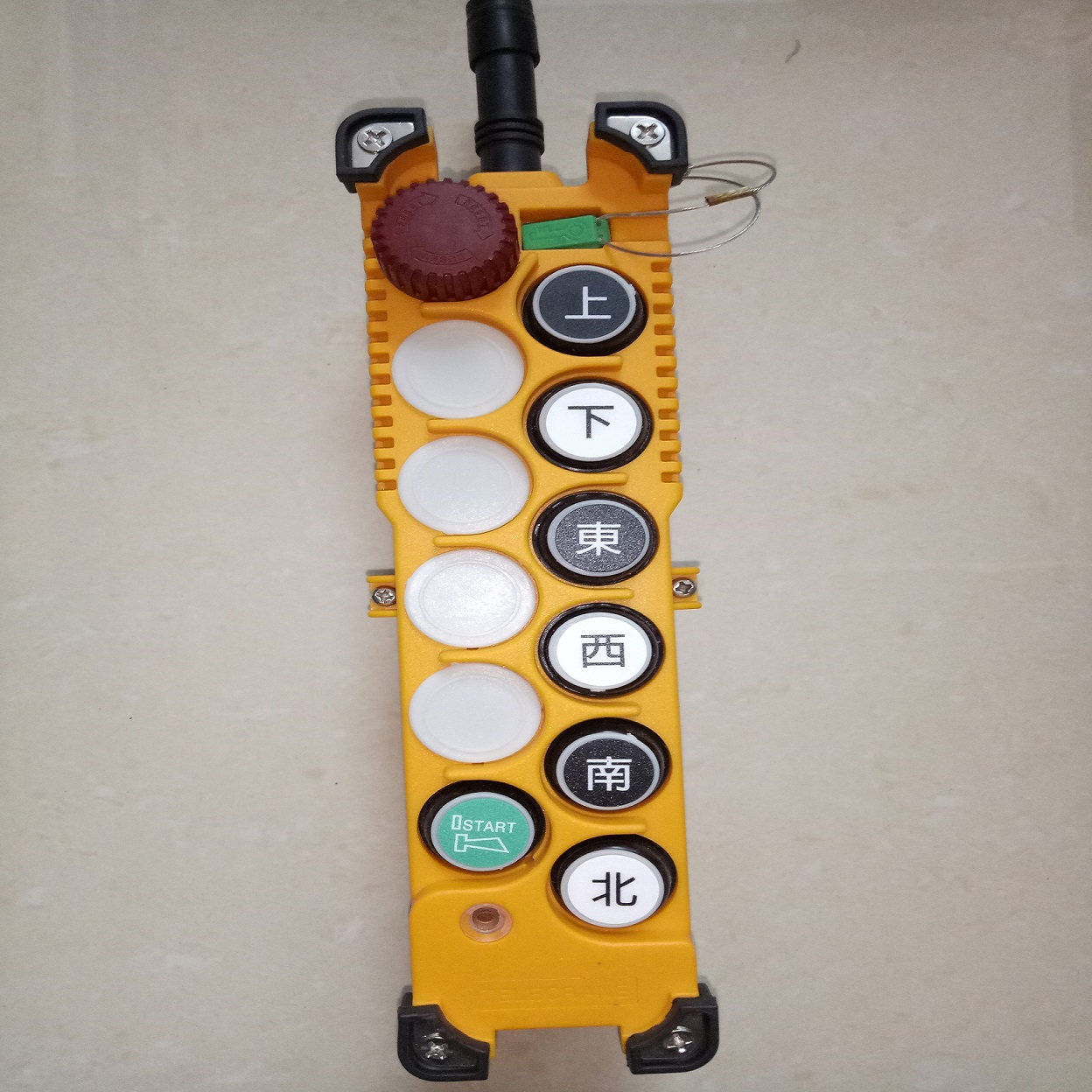

Transmitter (handheld)
Dimensions: 21.8 x 6.0 x 6.0 cm
Weight: Approximately 350 grams

Receiver
Dimensions: 29x23x7 cm
Weight: 1900g

6 push buttons (up/down dual-speed) + 1 start/alarum button + mushroom stop button
*11 control points reached
* Equipped with a battery voltage warning device that automatically cuts off the circuit when the voltage is insufficient.
Safety key switch to prevent unauthorized use.

*Up/Down, East/West, South/North can be set to whether they mutually inhibit each other.
*The power button can be set on the computer to function as power on, acceleration, skip, and normal modes.
*Unique dual-motor mode: When the button is pressed for the first speed, the first-speed relay is energized; pressing it further energizes the second-speed relay while de-energizing the first-speed relay (used for hoists with dual-motor fast/slow speeds)

Control Distance: Up to 100 meters
Security Code: 32 bits (4.3 billion combinations)
Operating Temperature: -35℃ to +80℃ (Battery temperature tolerance not considered)
Protection Level: IP65
Transmitter Power Supply: DC 3V (2 AA alkaline batteries can last for a month)
Receiver Power Supply: AC 380V/220V/48V selectable, or DC 12V/24V
Output Contact Capacity: 5A fully sealed relay output (using 250V/10A AC relay, 5A fuse).

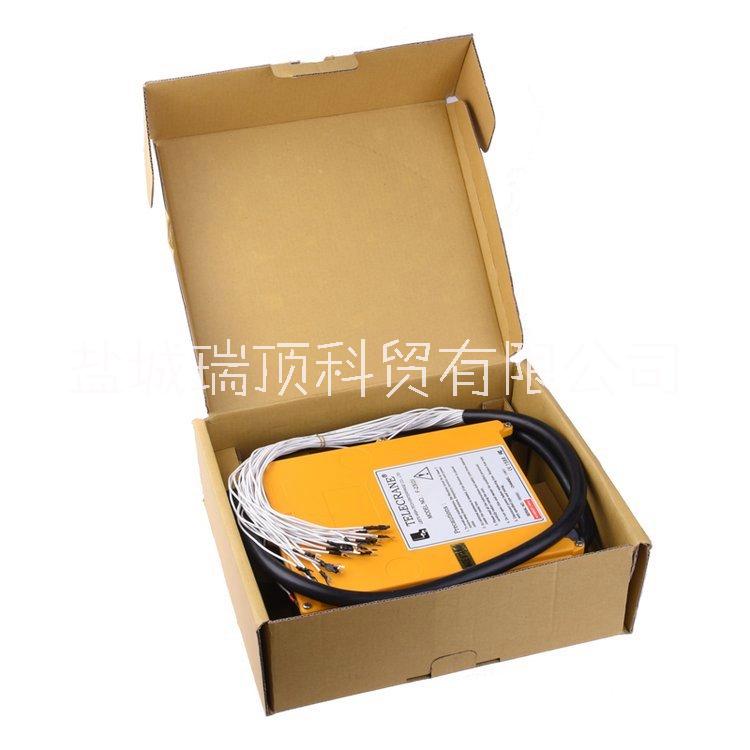

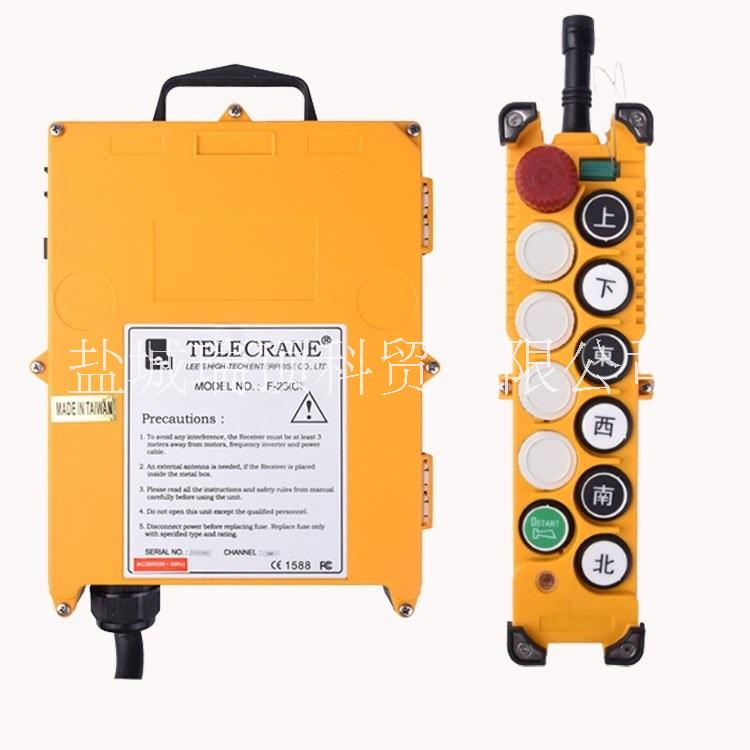

Standard Configuration:
1 Transmitter with strap
Receiver 1 Unit
Receiver features a waterproof interface (connection cable required)
1 Operation and Maintenance Manual 1 copy

Suitable for MD dual-speed electric hoists, or cranes with dual-speed hoists only, and industrial control remote operation with 10 points or fewer.

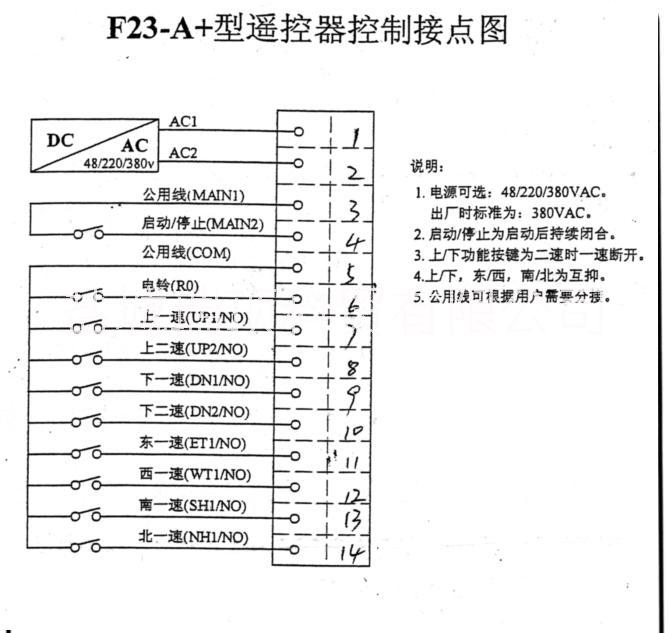

F23-A+ wiring diagram
