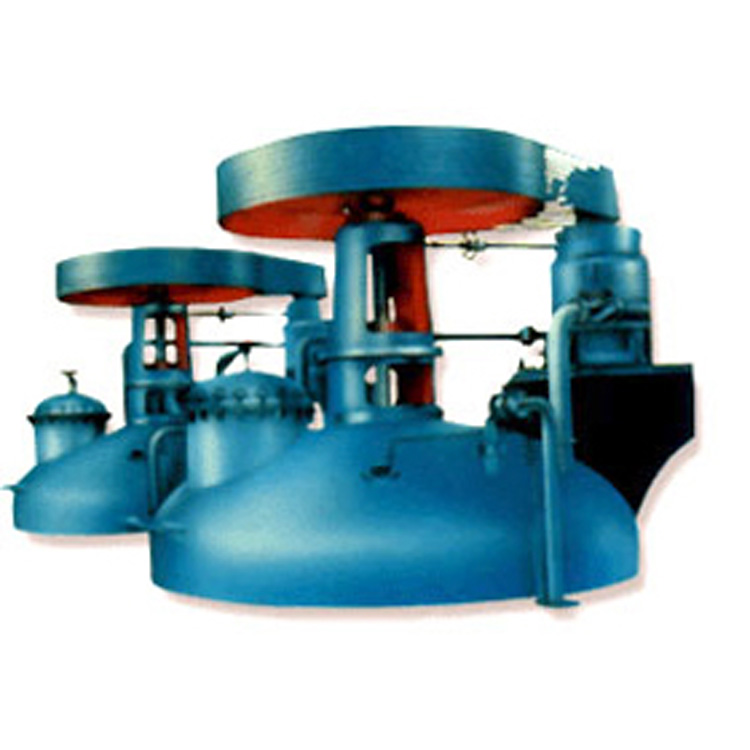

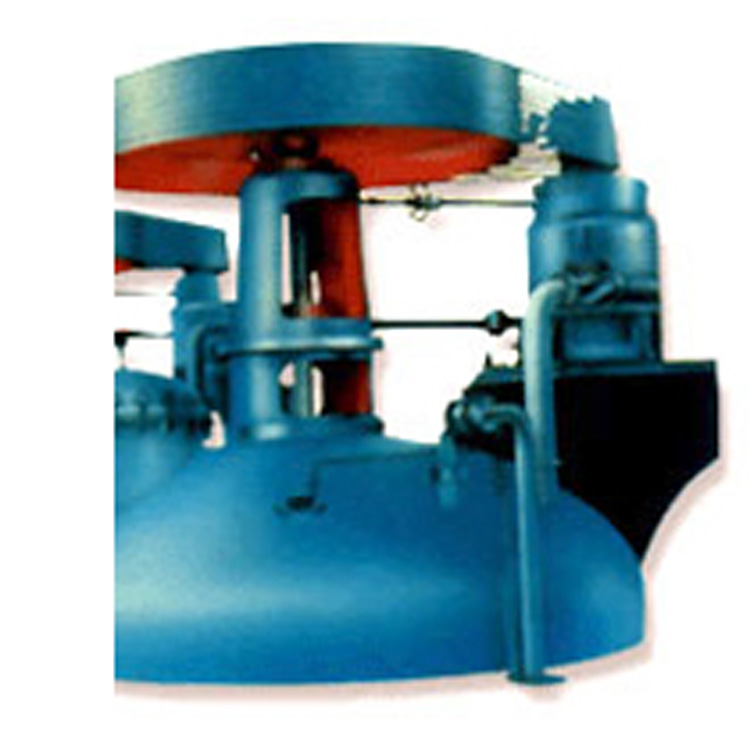

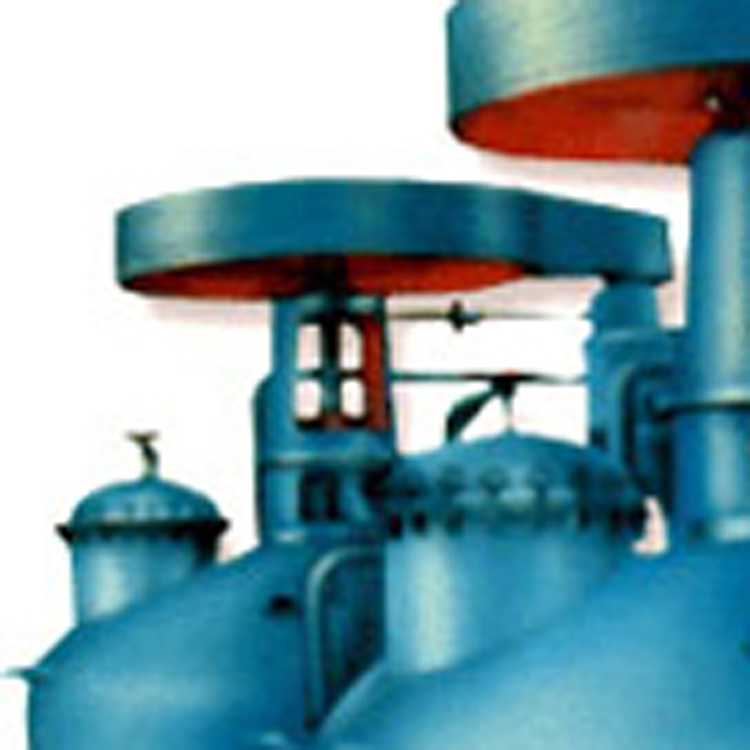

Fermentation Vessel
Fermentation Vessel Main Technical Parameters
| Nominal Volume m3 | Tubing Diameter (Dg) mm | Tubular Height (H) mm | Heat Exchange Area m2 | Agitator shaft speed rpm | Agitator shaft power KW |
| 10 | 1800 | 3800 | 14 | 160-260 | 17-22 |
| 15 | 2000 | 4800 | 18 | 166-260 | 22-30 |
| 20 | 2200 | 5000 | 22 | 180-260 | 30-37 |
| 30 | 2400 | 6600 | 34 | 150-250 | 45-55 |
| 40 | 2600 | 7500 | 45 | 150-250 | 55-75 |
| 50 | 2800 | 8000 | 58 | 150-250 | 55-90 |
| 60 | 3000 | 8300 | 65 | 150-250 | 60-115 |
| 75 | 3200 | 8800 | 84 | 150-250 | 90-145 |
| 100 | 3600 | 9400 | 114 | 150-250 | 120-125 |
| 150 | 4200 | 10800 | 165 | 150-250 | 165-275 |
| 200 | 4600 | 11500 | 220 | 140-240 | 215-360 |
