I. Applications of High-Temperature Test Chambers
This equipment is primarily designed for testing the adaptability of electrical appliances, electronic products, their components, and other materials under high-temperature storage, transportation, and usage conditions. The test equipment is mainly used to simulate environmental conditions for products in accordance with national standards or customer-defined requirements, testing their physical properties and other relevant characteristics under high temperatures. After testing, the performance of the products is evaluated through inspections to determine if they still meet the specified requirements for product design, improvement, certification, and factory inspection.
Section II: Main Technical Specifications of the Equipment
1. Temperature Range: RT+10~100℃、150℃、200℃、250℃、300℃、Non-standard temperatures
2. Temperature fluctuation: ±0.5℃
3. Temperature Deviation: ≤2℃
III. Reference Specifications

Note: Custom sizes available according to customer's technical specifications!

IV. Structural Characteristics of the Equipment
1. The equipment is primarily composed of the housing, heating system, air circulation system, and control system.

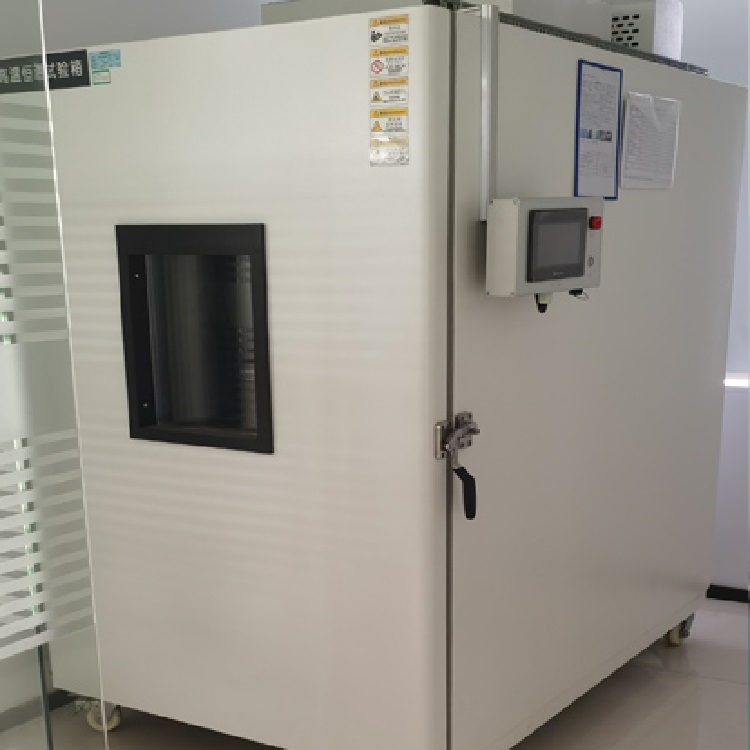

2. The cabinet shell is made of cold-rolled steel plate with electrostatic powder coating, while the inner lining is constructed from SUS304 stainless steel plate. The door features a large observation window in the middle, complete with an observation light, allowing users to clearly view the testing conditions of the sample.
3. The overall appearance is aesthetically pleasing and generous. The insulation layer is ultra-fine glass wool, featuring high strength and excellent thermal insulation properties.
4. The main temperature controller for this equipment is an intelligent digital temperature controller, easy to learn and operate, with compatible operations across different function levels. It features a digital calibration system and built-in non-linear correction tables for common thermocouples and resistance thermometers for stable measurements. Equipped with on/off and PID artificial intelligence control functions, 0.2-level accuracy, and multiple alarm modes. Features independent and unique BTHC balanced temperature control method for heating.
5. Electric appliances are executed with Schneider series products, ensuring safety and stability.
V. Relevant Standards
GB 10589-89 Technical Conditions for High-Temperature Test Chambers
GB/T5170.2-1996 Method for Verification of Basic Parameters of Environmental Test Equipment for Electrical and Electronic Products - Temperature Test Equipment
GB2423.1-89 Basic Test Procedures for Electrical and Electronic Products - Test B: High Temperature Test Method
Section 6: Safety Protection Devices for Equipment
Overload, short-circuit, and leakage protection.
2. Grounding Protection
3. Over-temperature Protection
4. To protect the equipment, all alarms will automatically cut off the power supply and emit audio alerts.
Section 7: Conditions on the Equipment Usage Site
Temperature: 15℃~35℃
2. Relative Humidity: Not greater than 85% RH
3. No severe vibration or strong electromagnetic field interference in the vicinity
4. Surroundings free of high concentration of dust and corrosive substances
5. No direct sunlight or other direct heat radiation
6. No strong air currents should be present around the area. If forced air is required, it should not be directed directly onto the box.
7. The test box should be placed flat and kept level.
8. Sufficient space should be left around the test box for ease of maintenance operations.
9. Installation site with good ventilation
10. Good grounding
Section 8: Service Commitment
1. Free on-site installation, debugging, and operator training.
2. The product comes with a one-year warranty from the date of delivery to the user, except for the following circumstances:
a. Buyer's operation error led to human error and damage.
b. Situations not to be borne by the supplier
3. Post-warranty paid services are provided.
