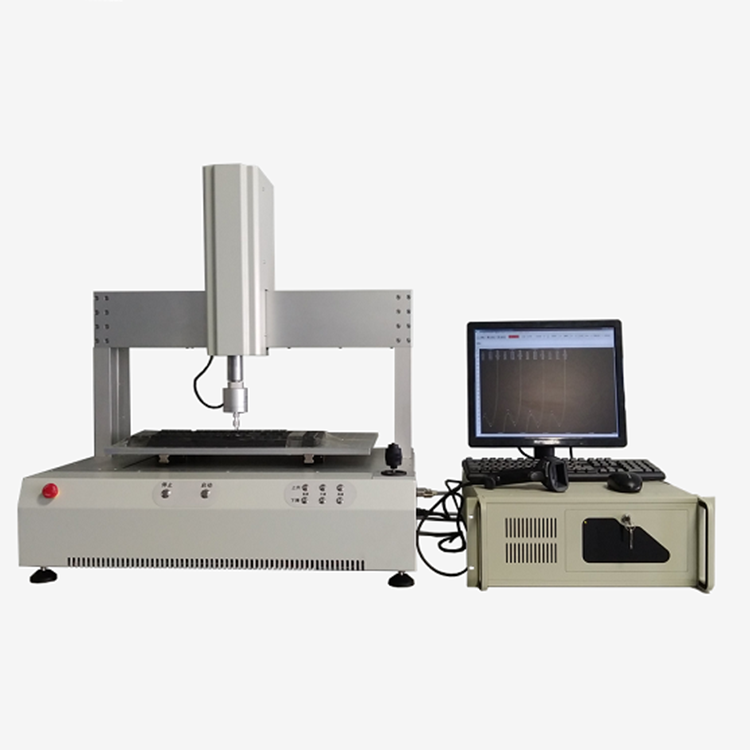

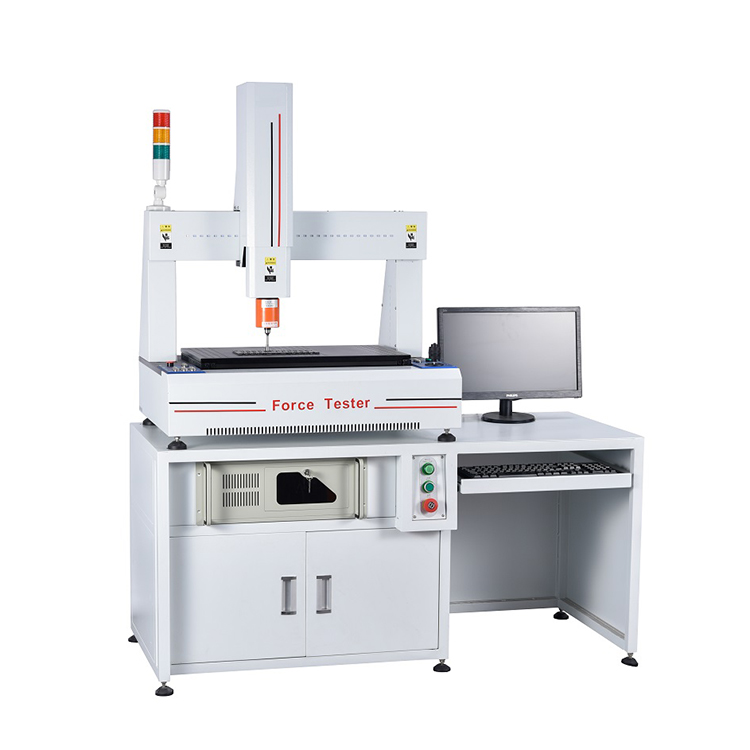

Product Description:
This machine is suitable for various pressure tests, capable of setting coordinates, automatically moving for testing, and recording test values. It utilizes Windows-based Chinese written settings, allowing all data to be stored (test conditions, load-resistance-distance curves, life span curves, inspection reports, etc.).
This machine features high-precision motor transmission, enabling precise measurement of (load-travel) and accurate key and switch curve testing.
II. Main Specifications and Parameters:
1. Load Capacity Test: 5000gf
2. Resolution: 0.001gf
3. Z-axis travel measurement: 120mm
4. Z-axis travel display: 0.001mm
5. Speed Range: 0~300 mm/min
6. X-axis travel speed: 500 mm/min
7. Y-axis travel speed: 300 mm/min
8. Machine Drive Mechanism: Ball Screw
9. Machine Drive: Drive Motor
10. Machine Dimensions: W820*D600*H1000 mm
11. Desk dimensions: W1400*D600*H670 mm
12. Machine Weight: 120 kg
13. Power Source: 220V
III. Main Functions and Features:
3.1 Main Features:
★ Enter coordinates for the X, Y, and Z axes freely, and the machine automatically moves to the test position.
★ Input test routes and loads, with automatic computer control and testing.
★ Settable load capacity; upon reaching the load value, the machine can pause.
★ Settable route; machine can pause upon reaching the route value.
★ Directly test and plot the graphic of each travel point (0.01mm) with load.
★ Each measurement graphic can be tracked by a crosshair cursor to identify the corresponding load and travel value, with a resolution of 0.01mm.
★Test items can input upper and lower specification values, and the results can be automatically judged as OK or NG.
★ One formula can test eight different load specifications, with both high and low keys available:
★ Known travel can test the corresponding load or resistance, or known load can measure the corresponding travel or resistance.
★Printable and storable graphics (load-travel curves, life curves, inspection reports)
★Storage for Test Data and Hard Drive (Each piece of data can be stored, unlimited times);
★Test conditions are all set by the computer (including test load, stroke, speed, number of cycles, pause time, etc.).
★ Header content of inspection reports can be modified at any time (both Chinese and English are acceptable).
★ Inspection reports can be saved to Excel, Word, or PDF for editing, or directly outputted via the internet.
★ AutoCAD drawings can be automatically imported with product coordinates, significantly enhancing work efficiency!
★ While testing the load and stroke, the impedance resistance function can also be tested.
3.2 Features:
1. Instrument overload protection
2. Emergency shutdown device, upper and lower travel limit devices;
3. Software setting parameter value limit protection
