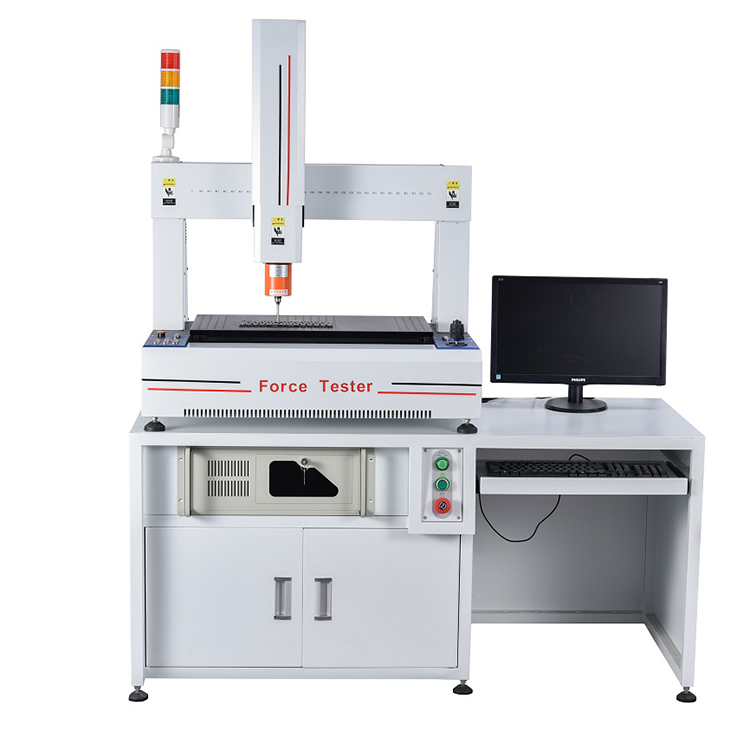

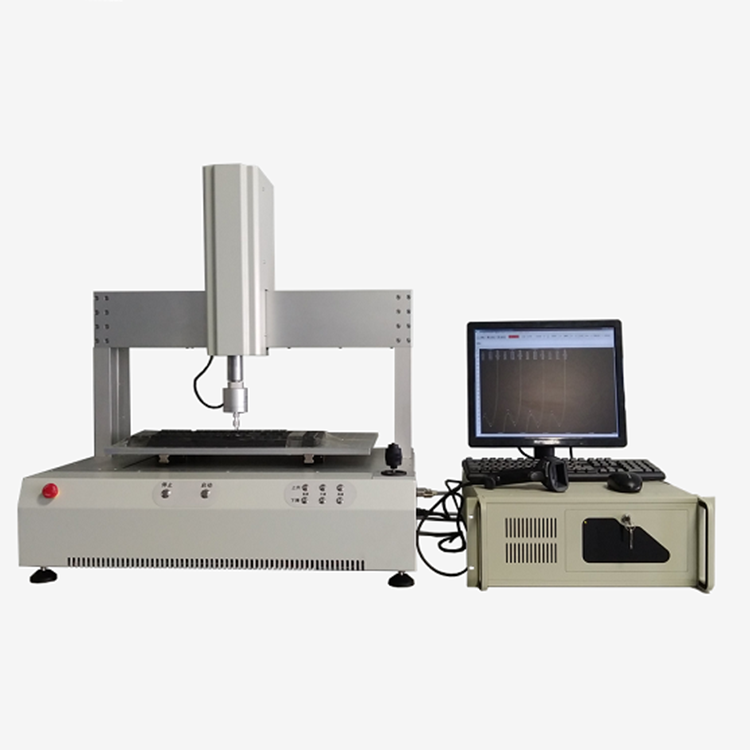

I. Product Description:

This machine is suitable for various pressure tests, capable of setting coordinates, automatically moving the test, and recording test values. Utilizing Windows-based Chinese written settings, all data can be stored (test conditions, load-resistance-travel curves, life span curves, inspection reports, etc.).

This machine features high-precision motor transmission, enabling precise measurement of (load-travel) and accurate key and switch curve testing.

Section 2: Main Specifications and Parameters:

1. Load Test: 5000gf

2. Resolution: 0.001gf

3. Z-axis travel measurement: 120mm

4. Z-axis Travel Display: 0.001mm

Speed Range: 0~300mm/min

6. X-axis travel speed: 500 mm/min

7. Y-axis travel speed: 300 mm/min

8. Machine Drive Mechanism: Ball Screw

9. Machine Drive: Drive Motor

10. Machine dimensions: W820*D600*H1000 mm

11. Desk dimensions: W1400*D600*H670 mm

12. Machine Weight: 120 kg

13. Power Source: 220V

Section 3: Main Features and Characteristics:

3.1 Main Features:

★ Enter coordinates for X, Y, and Z axes freely; the machine automatically moves to the test location.

★ Input test routes and loads, with the computer automatically controlling and testing.

★ Settable load weight; the machine can pause when the load value is reached.

★ Settable journey; machine pauses upon reaching journey value.

★ Directly test and plot the graphical representation of each journey point (0.01mm) against load.

★ Each measurement graphic can be tracked by a crosshair cursor, distinguishing the corresponding load and travel value, with a resolution of 0.01mm.

★ Test items can input upper and lower specification values, and the test results can be automatically determined as OK or NG.

★One formula can test eight different load specifications, with both high and low buttons available:

★ Known travel can test the corresponding load or resistance, or known load can measure the corresponding travel or resistance.

★Printable and storable graphics (load-travel curves, life curves, inspection reports)

★Data Storage and Hard Drive (Each piece of data can be stored, no limit on the number of times);

★Test conditions are all set by the computer (including test load, stroke, speed, number of cycles, pause time, etc.).

★ The header content of the inspection report can be modified at any time (both Chinese and English are acceptable).

★ Inspection reports can be saved to Excel, Word, or PDF for editing or directly outputted via the internet.

★ AutoCAD drawings can be automatically imported with product coordinates, significantly enhancing work efficiency!

★ While testing load and stroke, impedance resistance function can also be tested.

3.2  Features:

1. Overload protection for instruments.

2. Emergency shutdown device, upper and lower travel limit devices;

3. Software setting parameter value limit protection;
