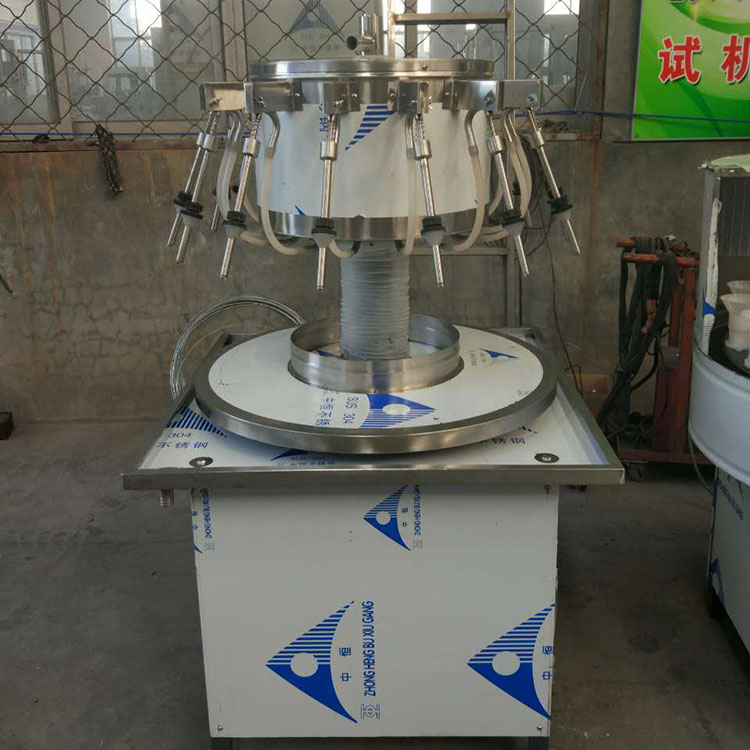

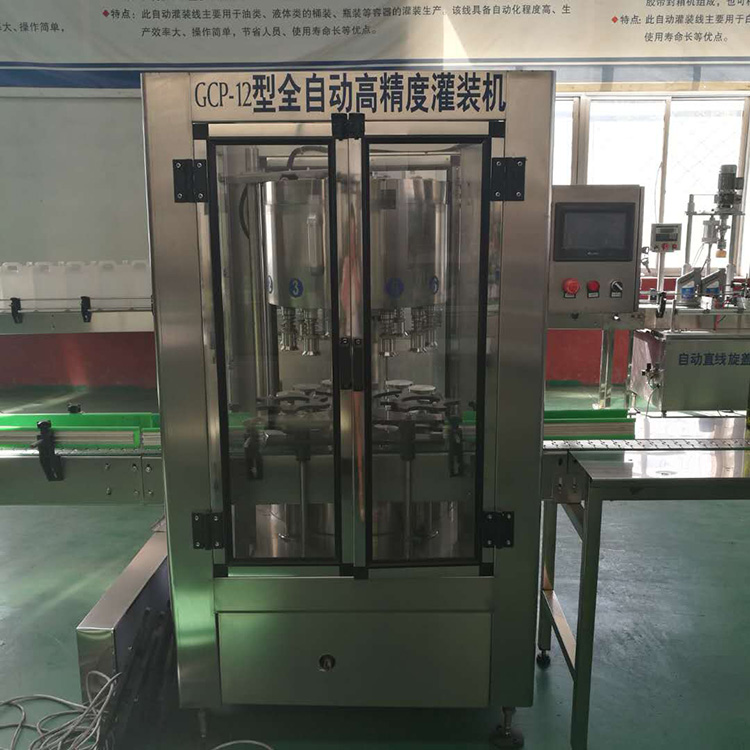

This machine is suitable for quantitative filling of liquids in different bottle shapes, such as: glass bottled liquids without gas, including wine, beverages, spices, and other liquids.

1. Key Performance Features and Parameters:

(1 When calibrated at a volume of 500 ml, the average error is ±1.5 ml.)

(2) The capacity adjustment is integrated with both manual overall adjustment and manual fine-tuning, ensuring accurate filling volume. It employs imported digital indicators and encoders, with the filling capacity directly displayed on the control panel.

(3) 2200-2600 bottles/hour (500ml/bottle), variable frequency stepless speed control.

(4): Filling quantities can be infinitely adjusted between 100-750 milliliters.

(5) Wide Range: Suitable for filling various irregular bottles and bottles with different diameters; the central column is adjustable, allowing for filling different height bottles without the need to replace parts.

(6) No Liquid Loss: Liquid is sprayed inside the bottle, no froth appears, and no overflow occurs.

(7) Bottle-Free Breakage: The soft cradle mechanism (elastic bottle support device) is unrestricted by bottle height or size, and if the bottle is not properly positioned, it will not damage the machine.

(8) Self-Regulating Liquid Level: Float level control valve assembly, maintains stable liquid level.

(9) Soft Start: The entire machine starts without impact, operating from low to high speed without breaking bottles or damaging the equipment.

(10) Automatic Protection: Overload clutch protection is installed at the in-and-out bottle wheel, automatically stopping and alarming in case of abnormal conditions.

(11) Aesthetically Pleasing: All parts of the machine that come into contact with liquids and exposed parts are made of SUS304 stainless steel to ensure the liquid is not contaminated and meets food hygiene standards.
