Static Generator
1. Key Points

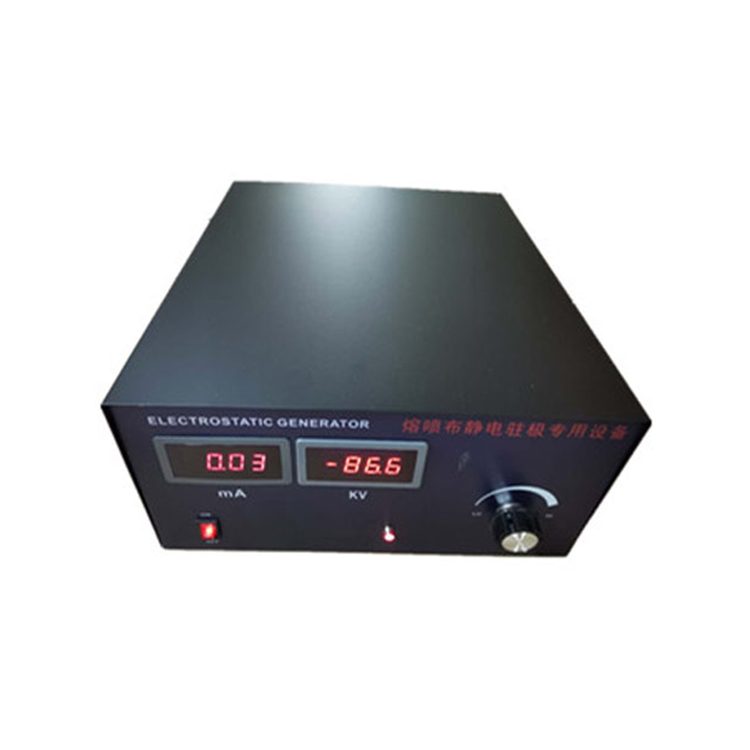

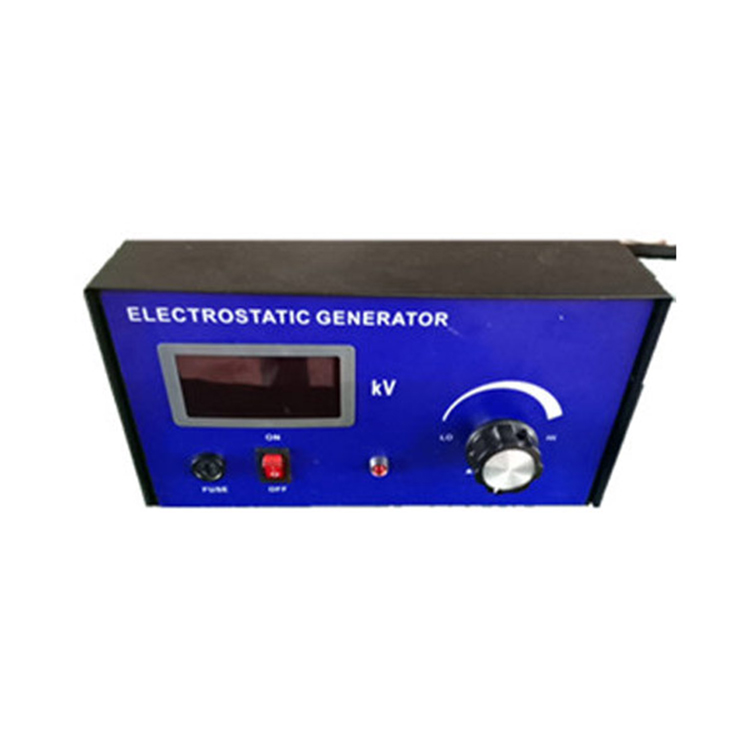

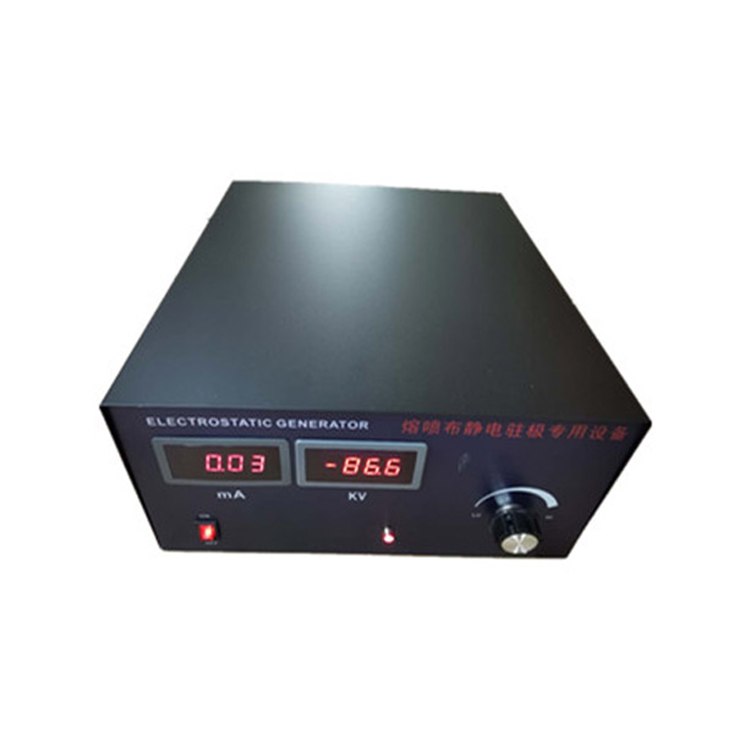

The static generator is composed of a high-voltage generator and a discharge rod.
· Please read this manual thoroughly before installing and using this product.
Please follow the procedures outlined in this manual to prevent damage, loss, and risks.
2. Safety
Do not use in flammable or explosive environments.
· For safety and proper operation, ensure the equipment is securely grounded.
· High-voltage generators are used to supply high voltage to the discharge rod, which is discharged by its electrodes.
· Do not position the electrode towards the body; do not touch the electrode to avoid electric shock.
3. Usage and Operation
· A high-voltage generator and a discharge rod make up the static discharge system.
· The high-voltage generator outputs a voltage of 0~30kV.
· High-voltage generators are connected with relays, photoelectric switches, etc., to achieve remote control of high-voltage output.
4. Technical Specifications
Input Voltage: 220VAC, 50Hz ~ 60Hz
Output Voltage: 0~30 kV
Power Consumption: 40VA
Polarity: Negative (N) / Positive (P)
High-voltage output interface: 2 ports
External Control Interface: 3-core aviation connector
5. Installation
5.1. Inspect
Check if the high-pressure generator is intact and undamaged.
Check if all packaging accessories are complete.
If you have any questions or doubts, please contact the vendor.
5.2. Grounding
Warning:
Ensure reliable grounding of the equipment for safety and proper operation.
5.3. Installation
Warning:
High-pressure generators should not be installed in damp, dirty, flammable, or explosive environments.
The high-pressure generator must be installed in a location free of vibration.
The high-voltage generator should be installed in a location that is convenient for operation, and as close as possible to the discharge rod.
2. Secure the high-voltage generator with screws when necessary.
3. Connect the grounding wire to the grounding post.
4. Insert the discharge rod plug into the high-voltage generator's output socket and secure it with the included nut.
5. Set the [ON/OFF] switch to the [OFF] position.
6. Insert the power cord connector into the power socket on the back of the high-voltage generator.
7. Insert the power cord plug into a grounded power outlet.
8. Insert the aviation hand into the aviation socket and secure it with the included nuts.
Note:
High-voltage lines must not come into contact with sharp metal parts or bends.
High-voltage lines should be separated from low-voltage lines.
The shorter the high-voltage line, the better.
6. Utilize
6.1 Power On and Power Off
- Power on = [ON/OFF] switch is in the [ON] position.
- Power Off = [ON/OFF] switch is in the [OFF] position.
6.2. Initiate and Stop High-Voltage Output
- Activate high-voltage output = Aviation plug two leads connected.
- Stop high-voltage output = aviation plug two wires disconnected.
6.3. Set Output Voltage
Note:
The output voltage of the high-pressure supply unit is designed to meet the required specifications. Excessive voltage can cause sparking and breakdown, affecting the normal operation of the equipment and posing safety hazards.
- The high-voltage supply unit is equipped with a large capacity capacitor. After the high-voltage supply unit is de-energized, sufficient downtime must be allowed or the electrodes must be grounded and discharged with a wire before the discharge needle can be accessed for maintenance.
Increase output voltage = Turn the voltage adjustment knob clockwise.
- Lower output voltage = Turn the voltage adjustment knob counterclockwise.
7. External Controls
Note:
Connect to the three-core aviation socket on the back of the high-voltage generator to achieve external control of high-voltage output via relays, photoelectric switches, and the like.
Pin Function
- Activate High Voltage Output = Connect 1, 2 cores.
- Stop high-voltage output = 1, 2 cores disconnected.
Pin Function 1: +12V 2: ON 3: GND
- Activate high-voltage output = 2, 3 cores connected.
Stop high-voltage output = Disconnect 2, 3 cores.
8. Product Warranty & Service
8.1 Warranty Period
The product warranty is one year from the date of sale. We offer free repairs for quality issues caused by the product's own components, materials, and manufacturing within one year of purchase.
8.2. Post-warranty service
We are responsible for free repair of the product without labor fees after the warranty period expires.
Our company reserves the right to modify and interpret individual performance parameters and technical improvements of the above products, without prior notice.
