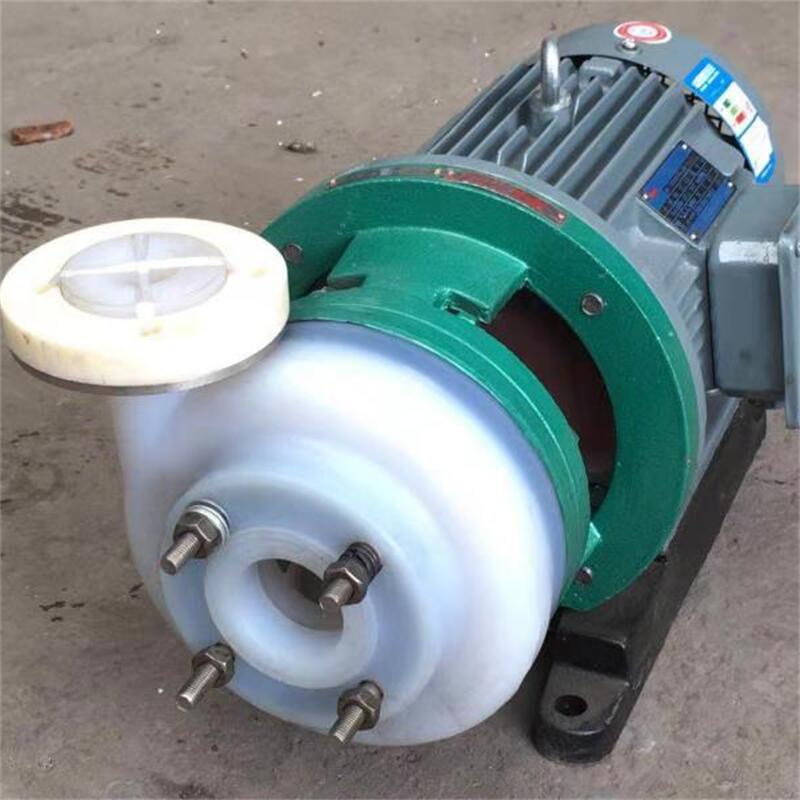

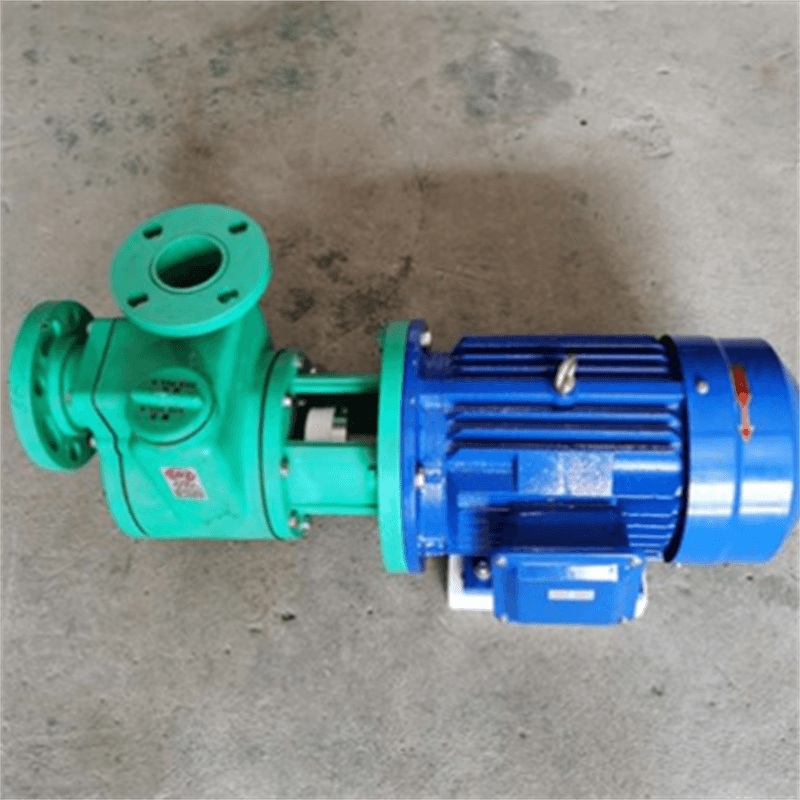

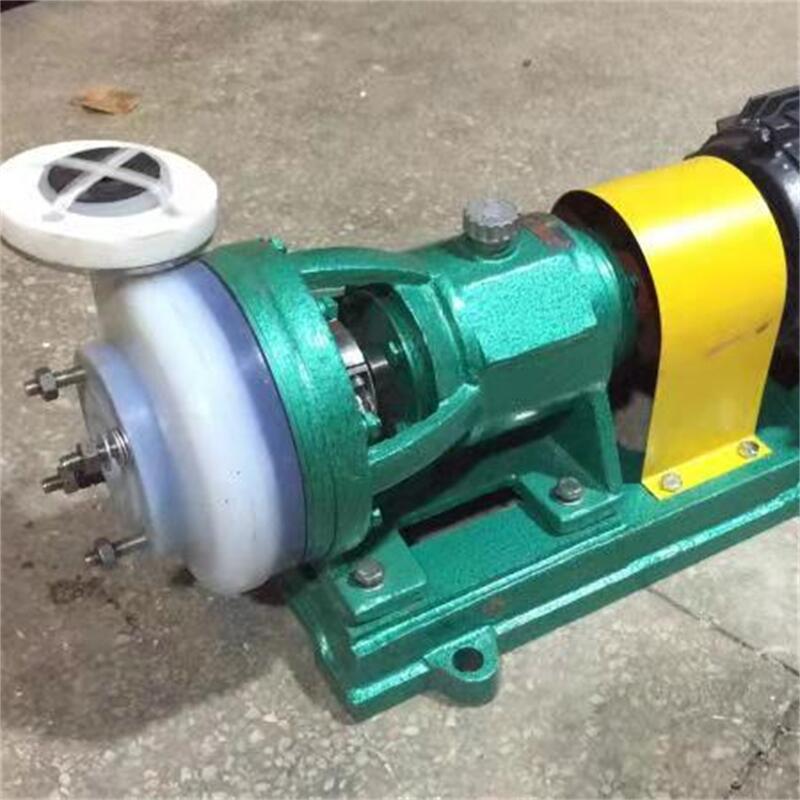

I. FZB Series Fluoroplastic Chemical Pump Product Introduction:

The FZB type fluorochemical alloy pump is manufactured in accordance with international standards and combines the design of non-metallic pump technology. The FZB type fluorochemical alloy pump body is lined with fluoro plastic inside a metal shell, with all flow parts made of fluorochemical alloy. The pump cover, impeller, and other components are formed by completely sintering and pressing fluoro plastic around metal inserts. The shaft seal uses an externally mounted bellows mechanical seal, with a static ring made of 99.9% alumina ceramic (or silicon nitride) and a dynamic ring filled with PTFE material, offering excellent corrosion and wear resistance. The vertical multi-stage centrifugal pump features reinforced cast steel bodies at both the inlet and outlet, enhancing its pressure resistance. Actual usage shows that the FZB type fluorochemical alloy self-priming pump boasts advantages such as corrosion and wear resistance, high-temperature resistance, non-aging, high mechanical strength, stable operation, reasonable structure, strict and reliable sealing performance, easy disassembly and maintenance, and long service life.

Section II: Features of FZB Series Fluoroplastic Chemical Pumps

The corrosion-resistant centrifugal pump features an automatic self-priming function, capable of pumping liquids below the pump's installation level. It boasts stable performance and simple operation. Once filled with liquid before use, refilling is not required for subsequent operations; simply turn on the pump. The self-priming height can be determined within 2 to 4 meters based on the medium's density. The submersible effluent pump is an alternative choice to the bulky submersible pumps.

This pump features an externally mounted PTFE bellows mechanical seal with multi-layer protection, extending the service life of the seal. For conveying media containing impurities and particles, it can be equipped with a non-cooled water single face-to-face hard-on-hard (silicon carbide to silicon carbide) mechanical seal. Therefore, users should consider the solid content of the medium when selecting the model.

Section 3: Applications of FZB Series Fluoroplastic Chemical Pumps:

The FZB type fluoroplastic chemical pump features all-pass components made of fluoroplastic and has a self-priming function. Thus, the FZB self-priming pump is widely used for applications such as pumping corrosive liquids from underground tanks to designated locations, transferring acids or alkalis from tanks without outlets at the bottom to target destinations, or for circulation between multiple acid tanks, or for acid unloading, etc.

The humanized design principle of the FZB type fluoroplastic self-priming pump has become an indispensable pump equipment for an increasing number of users.

Four: Technical Parameters of FZB Series Fluoroplastic Chemical Pumps:

Flow rate: 1.5 to 60 m³/h

Flow Range: 15-50m

RPM: 2900 r/min

Power: 1.5 to 15 kW

Import Diameter: 25-80mm

Operating Temperature: -20℃ to 120℃.
