EPS transformers, UPS transformers, Single-phase EPS/UPS transformers, Three-phase UPS/EPS transformer ratings and capacities:

Reducing Transformer：440V/380V-220V-100V-50V-6V

Step-up Transformer:100V/200V-440V-10000V

Maximum Capacity:75KVA

Minimum Capacity:100VA

Application Range:

1. Electroplating, electrolysis, oxidation, and other electrochemical rectifying devices

2. AC/DC power distribution, special-purpose power supplies for departments such as ships, railways, and mines.

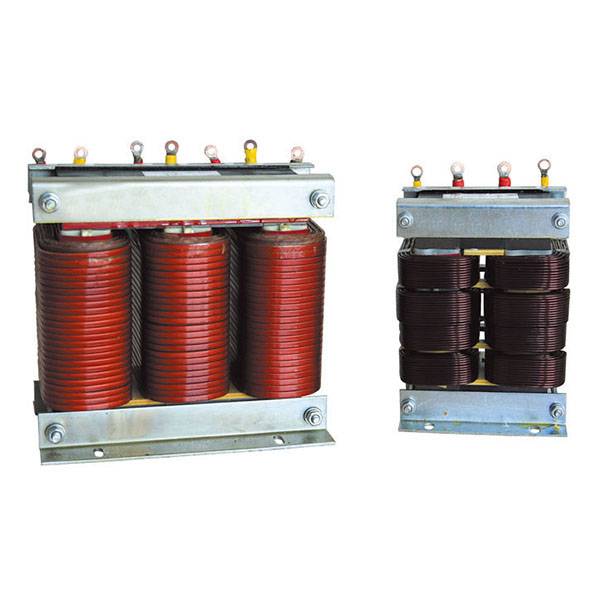

Three, Transformer for EPS, Transformer for UPS

This series is specifically designed for voltage conversion needs, featuring imported cold-rolled silicon steel sheets stacked together with high-temperature-resistant, high-insulation composite materials. It effectively reduces coil temperature through coil air channels. The special resin varnishing provides high permeability, low loss, low noise, low temperature, radiation resistance, non-toxicity, maintenance-free, and high environmental protection characteristics. The main product series input voltages include 380V, 220V, etc.; output voltages range from 440V, 400V, 220V, 200V, 127V, 110V, 100V, 36V, to 24V (special voltage types can be customized according to customer requirements). Special requirements are welcome for customization!
