DJIM350UAV-mounted high-precision surveying LiDARL2

ShenzhenPengjin Technology drone technology team, contact phone number18320930028 Miss Lai

The company offers a variety of drones./Laser Radar / Oblique Photogrammetry / Multispectral / Hyperspectral and other loading solutions

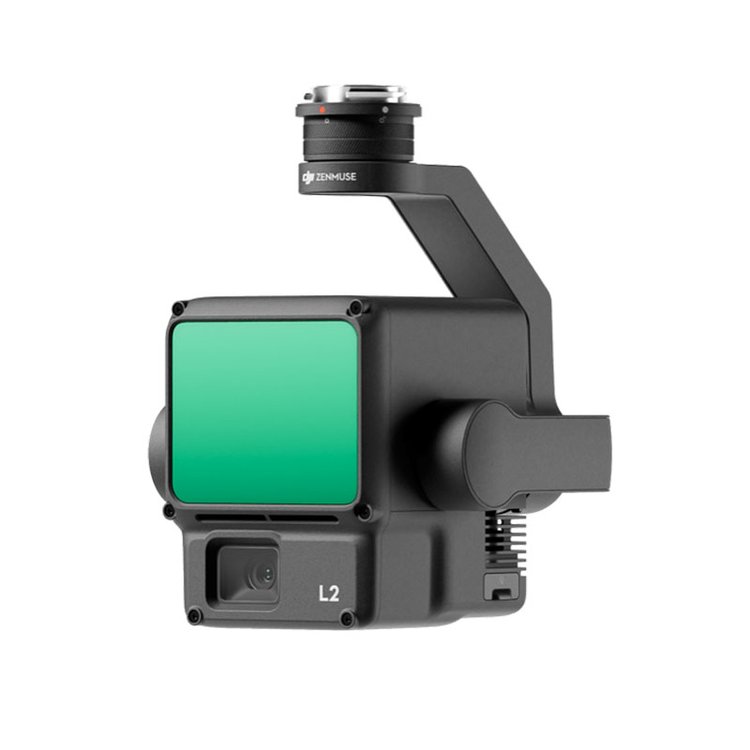

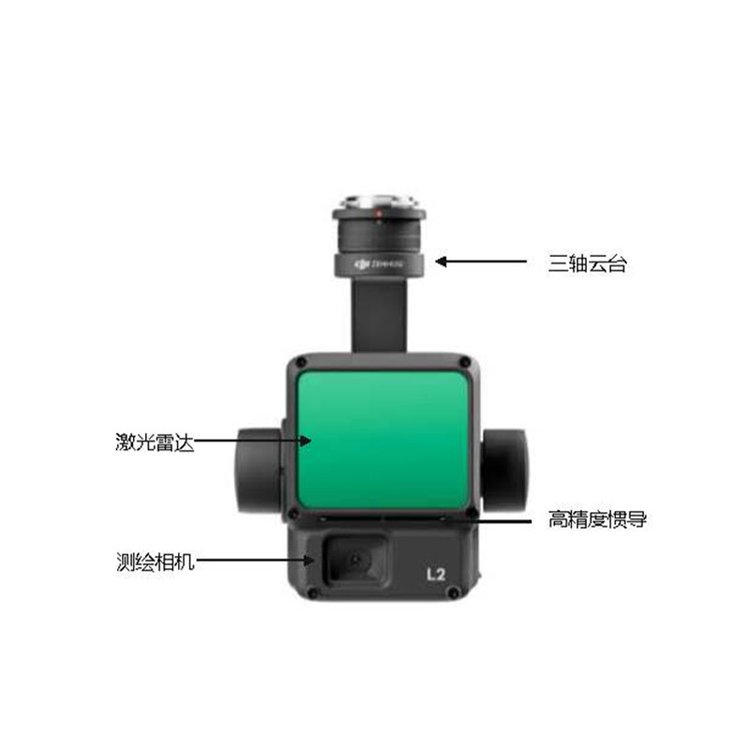

DJIM350 drone-mounted high-precision mapping LiDAR, integrating frame LiDAR, high-precision self-developed inertial navigation, and a 4/3 CMOS visible light mapping camera, endowing DJI's flight platform with more precise, efficient, and reliable 3D data collection capabilities. When paired with DJI's SmartMap, it provides an integrated solution for 3D data acquisition and high-precision post-processing.

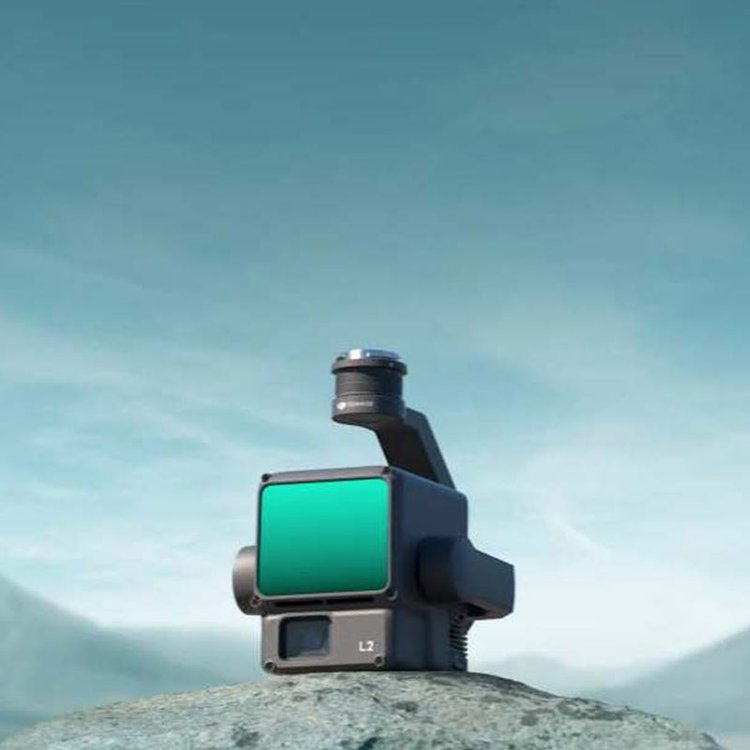

Aerial High-Precision Surveying LiDAR ZenMuse L2 integrates frame-laser radar, high-precision self-developed inertial navigation, and a 4/3 CMOS visible light mapping camera, endowing the DJI flight platform with more precise, efficient, and reliable 3D data collection.

Integrated LiDAR Solution

Thanks to hardware performance,L2 accurately scans small targets and increases range, enabling rapid acquisition of precise point cloud data. During operations, staff can preview, replay, and assemble point cloud models on-site, and obtain field quality reports to efficiently carry out task execution. With DJI Terra's one-stop post-processing, high-precision point cloud results can be obtained.

Smaller spot size, more concentrated energy

Spot size: 4 x 12 cm @ 100 meters, just 1/5th of L1, yet capable of identifying finer targets, acquiring more refined models, penetrating thicker vegetation, and generating more accurate digital elevation information.

Support 5 Echo

In densely vegetated areas,L2 Provides access to a richer variety of forest floor points.

Point Cloud Data Rate 240,000 points/second

In single echo and multi-echo modes,The L2 model boasts a maximum point cloud emission rate of 240,000 points per second, enabling the acquisition of more point cloud data within a given time frame.

Two scanning modes

L2 supports two scanning modes, allowing operators to flexibly choose according to job requirements. In the repetitive scanning mode, the laser radar can perform more even and precise scanning, meeting high-precision surveying requirements. In the non-repetitive scanning mode, it has stronger penetration and can obtain more structural information, suitable for power inspections, forestry surveys, and other job scenarios.
