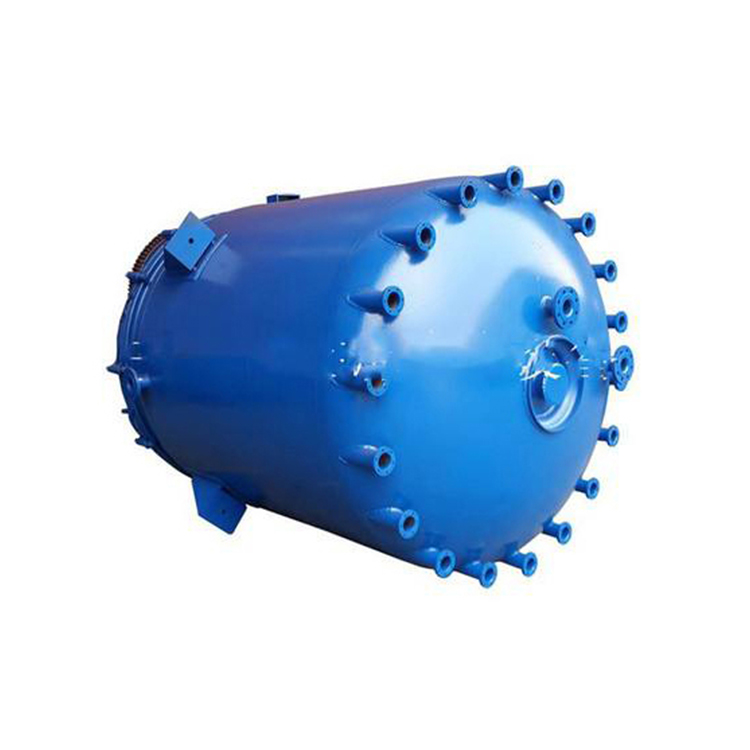

Glass Lined Open Reactor Vessel79 Standard
Standard Glass-Lined Reactor Technical Specifications Sheet
Standard Glass－Lined Reactor Technical Characteristics
Permitted Working Pressure PN Permissible Working Pressure PN | Tank inside ≤ 0.37 MPa IN jacket ≤ 0.58 MPa |
Allowable operating temperature Permissible Working Temperature | Tank inside 0-200℃ IN jacket, 0-200℃ |
Permitted mixing speed Permissible Speed of Agitator | Anchor type, box type 63, 80 r/min Anchor、frame63、80 r/min Propeller-type impeller Impller/Paddle≤125r/ min |
The agitator shaft is sealed with packing, and the working pressure inside the tank does not exceed 0.25 Mpa.
Permissimle Working pressure inside the tank is under 0.2Mpa When the agitator shaft stuffing sealde。
2. Frame-type mixers with a capacity of 3,000L or above (including K3000L) have a mixing speed of ≤63r/min.
The Speed of frame agitator （above 3000L）is no more than 63r/min
