Product Description

Cummins On-Highway Series diesel generator sets are designed, manufactured, and tested to Cummins' global standards, providing customers with a reliable, integrated power generation system that performs exceptionally well under normal, standby, and continuous operation conditions.

➊ MeetsISO 8528-2005 and GB/T 2820-2009 Standard for "AC Generating Sets Driven by Reciprocating Internal Combustion Engines"

➋ The design and manufacturing unit of the generator set have both passedISO 9001 or ISO 9002 Certification.

➌ Cummins offers1-year or 1,000 operating hour quality guarantee, covers the entire genset warranty, including the engine, generator, and control system.

➍ A nationwide professional service network serving clients24/7 after-sales service and technical support.

Performance Features

■ Advanced design and exquisite craftsmanship Adaptable to rigorous working conditions, featuring high strength and robust load-bearing capacity.

■ Halsey Exhaust Bypass Valve Better dynamic performance.

■ Integrated design Cylinder block, cylinder head, and other parts"Multi-functional in one," it reduces the number of connecting parts, with 40% fewer parts than similar engines, significantly lowering the failure rate.

■ Exceptional reliability Forged steel camshaft and crankshaft, high-strength cylinder block design, high rigidity, excellent high-pressure resistance, and extended service life.

■ Platform pattern honing designed cylinder sleeve Effectively prevents oil leakage with a perfect geometric structure.

■ Rotary High-Pressure Fuel Pump Lower fuel consumption and effectively reduce noise.

Environmental Requirements

Altitude(m)：≤1000

Fuel Standards:0# Light Diesel Oil

Atmospheric Pressure(kPa)：≥89.9

Engine Oil Standards:CF/15W-40

Intake Temperature(℃)：≤40

Water QualitypH: 6.5-8

Relative Humidity:≤60%

Mold Growth Level on Surface: ≤ GB/T2423.16/Grade 2

Earthquake Resistance: Horizontal Acceleration0.2g vertical acceleration, 0.1g

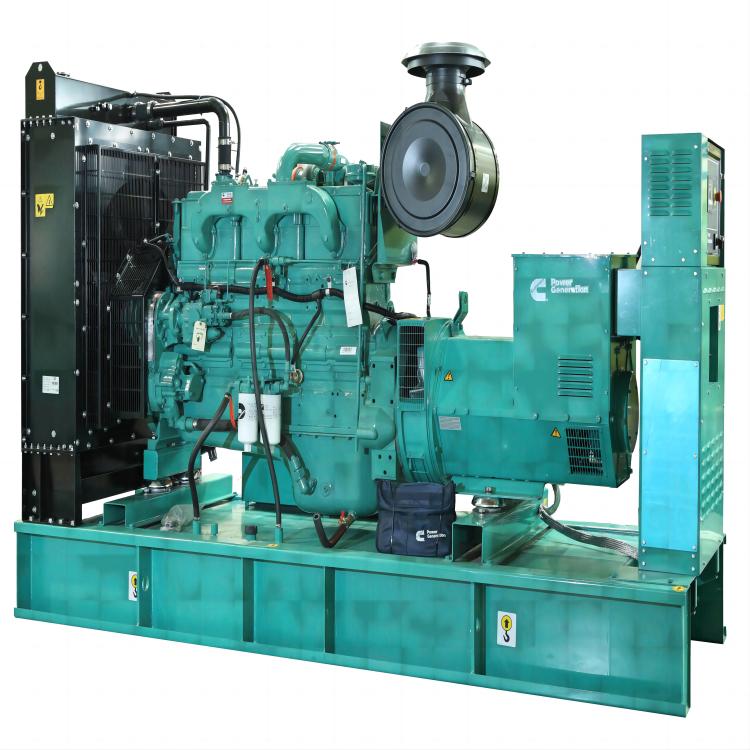

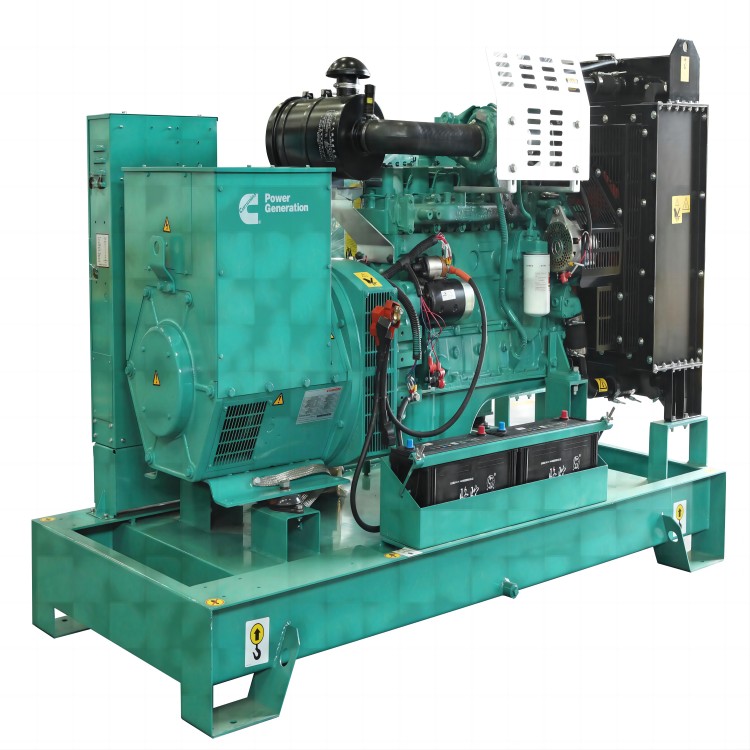

Generator Set Specifications

Model: Open Rack

Engine Model:DC16GF

Standby Power(KW)：16

Common Power(KW)：18

Engineered dimensions(mm)：1650×700×1050

Engineered weight(kg)：700

RPM(r/min)：1500

Fuel Consumptiong/kw.h)：216

Frequency(HZ)：50

Transient Voltage Regulation Ratio≤-15%/+20%

Steady-state voltage regulation ratio:≤±1%

Voltage Stability Time:≤3sec

Voltage Fluctuation Rate:≤0.5%

Voltage waveform distortion:≤8%

Steady-state frequency adjustment rate:≤5%

Transient Frequency Adjustment Rate≤-10%/+12%

Stable Frequency Time:3sec

Frequency Volatility:≤1.5%

Engine specifications

Diesel Engine Brand:Cummins/Cummins

Manufacturer:Dongfeng Cummins Engine Co., Ltd.

Diesel Engine Model:4B3.9-G11

Standby PowerKW）：22KW

Number of Cylinders/Arrangement: 4-cylinder/inline

Compression Ratio:16.5:1

Bowl Diameter* Travel (mm): 102×120

DisplacementL)：3.9

Oil PressurekPa)：345

Oil Temperature℃)：≤121

Oil Capacity(L):9

Coolant Volume7.9 (Engine Only)

Fuel SystemNYC Type A Inline Pump

Cooling Method: Closed-loop Water Cooling

Speed Control Method: Electronic Speed Control

Startup Method:DC24V Electric Start

Inlet Method: Natural Inlet

Type: Four-stroke

Constant Load Steady-State Variability±0.25%

Power Deviation:≦±5%

Generator specifications

Generator Brand:Stamford/Stanford

Manufacturer: Cummins Generator Technologies (China) Co., Ltd.

Generator Model:PI142D  S0L2-M1

Capacity:16KW

Voltage:400V/230V

Form: Brushless, Single-Bearing, Rotating Magnetic Field

Excitation System: Self-excitation, Automatic Voltage Regulation

Winding structure:2/3 pitch

Three-phase four-wire

Insulation Grade:H Grade

Power Factor:COSφ = 0.8 lag

Telephone Interference Coefficient:TIF：<50

Wiring:Y-connection

Phone Harmonic Coefficient:THF：<2%

Protection Grade:IP23

Radio Frequency Interference: CompliantBS800 and VDE G, N ratings

Comply with Standards:GB 755, BS 5000 Part 3, VDE 0530, NEMA MG1-22, IEC 34, GSA C22-100, AS 1359

Standard Configuration

Engine Components: Engine, Diesel Filter, Air Filter, Oil Filter, Charger, Starter Motor.

Generator Parts: Generator, Air Circuit Breaker.

Control System:LCD liquid crystal display controller, electronic speed controller.

Other Parts: Water Tank Radiator, Steel Base, Vibration Dampener.

Appendix: Muffler, Battery, Battery Cable, Engine Oil, Shock Absorber Pad.

Standard of Implementation

Military Standard  GJB 5785-2006

National Standards  GB/T 2820-2002

Communication Standards  YD/T 502-2007

Industry Standards      JB/T 10303－2001

Environmental CertificationNoise and Vibration Class A / Exhaust Emission Class A

Terral Quality Certification  YD/T502-2007*
