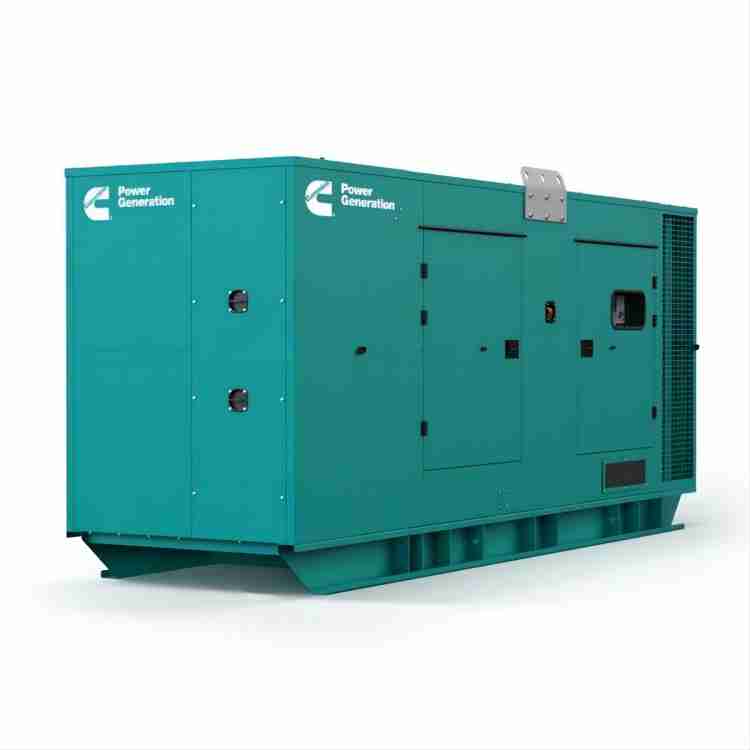

Product Description

Cummins On-Highway Series diesel generator sets are designed, manufactured, and tested to Cummins' global standards, providing customers with a reliable, integrated all-in-one power generation system that delivers exceptional performance under normal load, backup, and continuous operation conditions.

➊ MeetsISO 8528-2005 and GB/T 2820-2009 Standards for "AC Generating Sets Driven by Reciprocating Internal Combustion Engines"

➋ Design and manufacturing units of the generator sets have passedISO9001 or ISO9002 Certification.

➌ Cummins offers1-year or 1000 operating hours warranty, covering the entire generator set including the engine, generator, and control system.

➍ Nationwide professional service network serving customers24/7 after-sales service and technical support.

Performance Features

■ Advanced design and exquisite manufacturing, adaptable to various stringent operating conditions, with high strength and strong load-bearing capabilities.

■ The cylinder block and cylinder head feature integrated design, eliminating the occurrence of engine water and oil leakage, with approximately 30% fewer parts than similar engines.40%, significantly reduced failure rate

■ The cylinder bore features a platform pattern honing design, which includes a geometric structure to prevent oil leakage. It also utilizes technologies such as piston ring components and sealed gasket rolled edges, reducing oil consumption.

■ Holesett with integrated exhaust bypass valveHolset turbochargers, with low-speed responsiveness and strong power delivery

■ Three-stage fuel filter ensures balanced particle distribution, protects the main components of the fuel system, and extends engine life.

Environmental Requirements

Elevation(m)：≤1000

Fuel Standards:0# Diesel Fuel

Atmospheric Pressure(kPa)：≥89.9

Oil Standard:CF/15W-40

Intake Temperature(℃)：≤40

Water QualitypH: 6.5-8

Relative Humidity:≤60%

Mold Growth Level on Surface: ≤GB/T2423.16/Grade 2

Earthquake Resistance Strength: Horizontal Acceleration0.2g vertical acceleration, 0.1g

Generator set specifications

Model: Open-shelf

Model:DC120GF

Standby Power(KW)：120

Common Power(KW)：105

Engineered dimensions(mm)：2400×840×1300

Engineered weight(kg)：1200

RPM(r/min)：1500

Fuel Consumptiong/kw.h)：208

Frequency(HZ)：50

Transient Voltage Regulation Ratio:≤-15%/+20%

Steady-state voltage regulation:≤±1%

Voltage Stability Duration:≤3sec

Voltage fluctuation rate:≤0.5%

Voltage waveform distortion:≤8%

Steady-state frequency adjustment rate:≤5%

Transient Frequency Adjustment Rate≤-10%/+12%

Frequency Stability Time:3sec

Frequency Volatility:≤1.5%

Engine specifications

Diesel Engine Brand:Cummins/ Cummins Engine Company

Manufacturer:Dongfeng Cummins Engine Co., Ltd. (DCEC)

Diesel Engine Model:6BTAA5.9-G2

Standby PowerKW）：130

Number of cylinders/Arrangement: 6 cylinders/inline

Compression Ratio:16.5:1

Bore diameter* Travel (mm): 102*120

DisplacementL)：5.9

Oil PressurekPa)：345

Oil Temperature℃)：≤121

Oil capacity(L):16.4

Coolant Volume$9.99 (only engine)

Fuel System:BYC Type A Inline Pump

Cooling Method: Closed-loop Water Cooling

Speed Control: Electronic Speed Regulation

Startup Method:DC24V Electric Start

Inlet Method: Turbocharged, Intercooled

Type: Four-stroke

Constant Load Steady-State Fluctuation Rate±0.25%

Power Deviation:≦±5%

Generator specifications

Generator Brand:Stamford/Stanford

Manufacturer: Cummins Generator Technologies (China) Co., Ltd.

Generator Model:UCI274E

Capacity:120KW

Voltage:400V/230V

Form: Brushless, Single-Bearing, Rotating Magnetic Field

Excitation System: Self-excitation, Automatic Voltage Regulation

Winding structure:2/3 Pitch

Three-phase four-wire

Insulation Grade:Grade H

Power Factor:COSΦ = 0.8 lag

Phone Interference Factor:TIF：<50

Wiring:Y-connection

Telephone Harmonic Coefficient:THF：<2%

Protection Level:IP23

Radio Frequency Interference (RFI): CompliantBS800 and VDE G, N ratings

Comply with Standards:GB755, BS5000 Part 3, VDE0530, NEMA MG1-22, IEC-34, GSA C22-100, AS1359

Standard Configuration

Engine Components: Engine, Diesel Filter, Air Filter, Oil Filter, Charger, Starter Motor.

Generator Parts: Generators, Circuit Breakers.

Control System:LCD liquid crystal display controller, electronic speed controller.

Other parts: Water tank radiator, steel base, vibration dampener pads.

Attachment section: muffler, battery, battery wire, engine oil, vibration pads.

Execution Standard

Military Standard  GJB 5785-2006

National Standard  GB/T 2820-2002

Communication Standards  YD/T 502-2007

Industry Standards      JB/T 10303－2001

Environmental CertificationNoise and Vibration Class A / Exhaust Class A

Taylors Quality Certification  YD/T502-2007*
