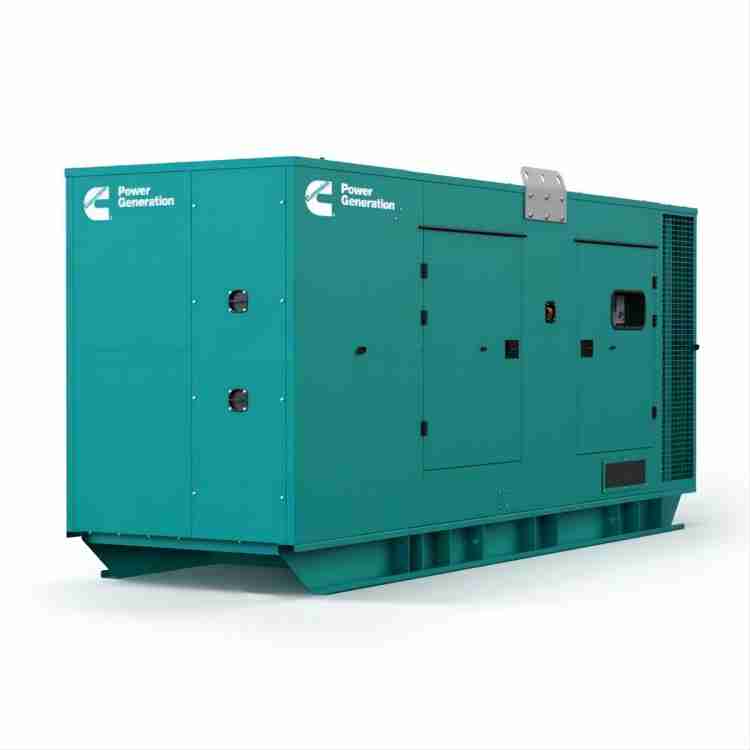

Product Description

Cummins On-Highway Series diesel generator sets are designed, manufactured, and tested to Cummins' global standards, providing customers with a reliable, integrated all-in-one power generation system that delivers exceptional performance in constant load, standby, and continuous operation conditions.

➊ MeetsISO 8528-2005 and GB/T 2820-2009 Standard for "AC Generating Sets Driven by Reciprocating Internal Combustion Engines"

➋ Design and manufacturing units for generators have all passedISO 9001 or ISO 9002 Certification.

➌ Cummins offers1-year or 1000 operating hours warranty, covering the entire generator set, including the engine, generator, and control system.

➍ A nationwide professional service network serving customers24/7 after-sales service and technical support.

Performance Features

■ Design and Manufacturing:Advanced design, exquisite manufacturing techniques, reliable and durable.

■ Bosch Inline Fuel Pump:Higher oil pressure ensures more complete combustion, resulting in less energy loss, stronger power, and greater fuel adaptability.

■ Holsat(Holset) Turbocharger:With integrated exhaust bypass valve, low-speed response and strong power.

■ Integrated design:Parts quantity is nearly less than similar products.25%, lower failure rate, easier maintenance.

■ Exceptional reliability:The cylinder liners feature a platform pattern honing design and a corrosion-resistant high-nickel cast iron piston, significantly reducing oil consumption, enhancing durability, and extending service life.

Environmental Requirements

Altitude(m)：≤1000

Fuel Standards:0# Diesel Fuel

Atmospheric pressure(kPa)：≥89.9

Oil Standard:CF/15W-40

Intake Temperature(℃)：≤40

Water QualitypH: 6.5-8

Relative Humidity:≤60%

Mold Growth Severity Level≤ GB/T2423.16/2nd Grade

Seismic Resistance: Horizontal Acceleration0.2g vertical acceleration, 0.1g

Generator set specifications

Model: Open-shelf

Engine Model:DC180GF

Standby Power(KW)：180

Common Power(KW)：160

Engine assembly dimensions(mm)：2500×1000×1500

Engineered weight(kg)：1800

RPM(r/min)：1500

Fuel Consumptiong/kw.h)：210

Frequency(HZ)：50

Transient Voltage Regulation Ratio:≤-15%/+20%

Steady-state voltage regulation:≤±1%

Voltage Stabilization Time:≤3sec

Voltage fluctuation rate:≤0.5%

Voltage waveform distortion:≤8%

Steady-state frequency adjustment rate:≤5%

Transient Frequency Adjustment Rate≤-10%/+12%

Frequency Stability Time:3sec

Frequency Volatility:≤1.5%

Engine specifications

Diesel Engine Brands:Cummins/Case New Holland

Manufacturer:Dongfeng Cummins Engine Co., Ltd.

Diesel Engine Model:6CTAA8.3-G2

Standby PowerKW）：200

Number of cylinders/Arrangement: 6 cylinders/inline

Compression Ratio:16.5:1

Bore diameter* Travel Distance (mm): 114*135

DisplacementL)：8.3

Oil PressurekPa)：276～414

Oil Temperature℃)：≤121

Oil capacity(L):23.8

Coolant Volume12.3 (Engine only)

Fuel SystemPB Inline Pump

Cooling Method: Closed-loop Water Cooling

Speed Control: Electronic Speed Control

Startup Method:DC24V electric start

Air Intake Method: TurbochargedWater/Air Cooling

Type: Four-stroke

Constant Load Steady-State Variability±0.25%

Power Deviation:≦±5%

Generator specifications

Generator Brand:Stamford/Stanford

Manufacturer: Cummins Generator Technologies (China) Co., Ltd.

Generator Model:UCI274H

Capacity:180KW

Voltage:400V/230V

Form: Brushless, Single-Bearing, Rotating Magnetic Field

Excitation System: Self-excitation, Automatic Voltage Regulation

Winding structure:2/3 pitch

Number of phases: 3-phase 4-wire

Insulation Grade:H Grade

Power Factor:COSΦ = 0.8 lag

Telephone Interference Coefficient:TIF：<50

Wiring:Y connection

Telephone Harmonic Coefficient:THF：<2%

Ingress Protection Rating:IP23

Radio Frequency Interference (RFI): CompliantBS800 and VDE G, N Grades

Meets Standards:GB755, BS5000 Part 3, VDE0530, NEMA MG1-22, IEC-34, GSA C22-100, AS1359

Standard Configuration

Engine Parts: Engine, Diesel Filter, Air Filter, Oil Filter, Charger, Starter Motor.

Generator section: Generator, circuit breaker.

Control System:LCD Liquid Crystal Display Controller, Electronic Speed Controller.

Other Parts: Water Tank Radiator, Steel Base, Vibration Dampers.

Appendix: Muffler, Battery, Battery Cable, Engine Oil, Shock Absorber Pad.

Compliance Standards

Military Standard  GJB 5785-2006

National Standards  GB/T 2820-2002

Communication Standards  YD/T 502-2007

Industry Standards      JB/T 10303－2001

Environmental CertificationNoise and Vibration Class A / Exhaust Emission Class A

Terral Quality Certification  YD/T502-2007*
