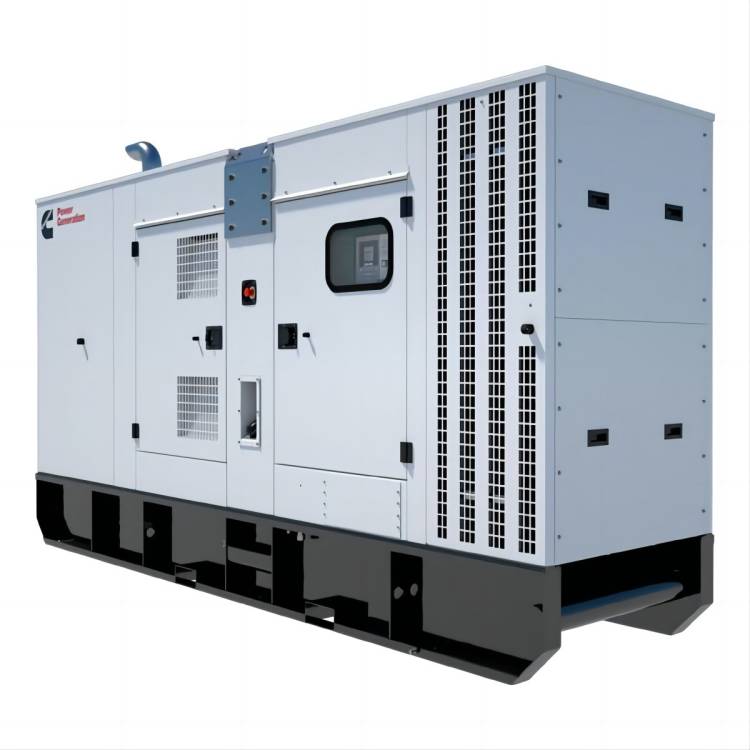

Product Description

Cummins Low-Noise Series diesel generators are designed, manufactured, and tested to Cummins' global standards, providing customers with a reliable, integrated genset system that performs exceptionally well under constant load, backup, and continuous operation conditions.

➊ MeetsISO 8528-2005 and GB/T 2820-2009 Standard for "AC Generating Sets Driven by Reciprocating Internal Combustion Engines"

➋ Design and manufacturing of the generators are both certified.ISO9001 or ISO9002 Certification.

➌ Cummins offers1-year or 1000 operating hours warranty, covering full warranty for the generator set, including the engine, generator, and control system.

➍ A nationwide professional service network serving customers24/7 after-sales service and technical support.

Performance Features

■ Cylinder bodyManufactured from high-strength alloy cast iron, offering excellent rigidity, low vibration, and minimal noise.

■ Cylinder HeadEach cylinder features a four-valve design, optimized for air flowFuel mixture ratio, effectively improves combustion and emissions; each cylinder has its own cover, easy for maintenance.

■ CamshaftThe single camshaft allows for precise control of valve and fuel injection timing, with the cam profile reducing impact force, enhancing reliability and durability.

■ CrankshaftHigh A solid crankshaft made of high-strength forged steel, with induction hardening of the rounded corners and shaft journals, ensures enhanced fatigue strength.

■ PistonUtilizing advanced aluminum alloy casting technology,The omega-shaped head and bucket skirt design accommodates thermal expansion and contraction, ensuring a good fit.

Environmental Requirements

Elevation(m)：≤1000

Fuel Standard:No. 0 Diesel Fuel

Atmospheric Pressure(kPa)：≥89.9

Engine Oil Standards:CF/15W-40

Inlet Temperature(℃)：≤40

Water QualitypH: 6.5-8

Relative Humidity:≤60%

Mold Level on Surface: ≤GB/T2423.16/Grade 2

Seismic resistance: Horizontal acceleration0.2g vertical acceleration, 0.1g

Generator set specifications

Model: Whisper Quiet

Engine Model:C450GF

Standby Power(KW)：500

Common Power(KW)：450

Engineered dimensions(mm)：4600×1600×2300

Engineered Weight(kg)：6400

RPM(r/min)：1500

Fuel Consumptiong/kw.h)：206

LP7m Noise (dB): 70~85

Transient Voltage Regulation Ratio:≤-15%/+20%

Steady-state voltage regulation ratio:≤±1%

Voltage stability time:≤3sec

Voltage fluctuation rate:≤0.5%

Voltage waveform distortion:≤8%

Steady-state frequency adjustment rate:≤5%

Transient Frequency Adjustment Rate≤-10%/+12%

Stable Frequency Time:3sec

Frequency volatility:≤1.5%

Engine specifications

Diesel Engine Brand:Cummins/Cummins

Manufacturer:Chongqing Cummins Engine Co., Ltd. (CCEC)

Diesel Engine Model:KTA19-G8

Standby PowerKW）：575

Number of cylinders/Arrangement: 6-cylinder/Inline

Compression Ratio:13.5:1

Bore diameter* Travel (mm): 159*159

DisplacementL)：18.9

Oil Pressurepsi)：50～70

Oil Temperature℃)：≤121

Oil capacity(L):50

Cooling Water Capacity(L)：66

Fuel System: Electrically ControlledECM/High-Pressure Common Rail

Cooling Method: Closed-loop Water Cooling

Speed Control Method: Electronic Speed Control

Startup Method:DC24V Electric Start

Air Intake Method: TurbochargedWater-air air cooling

Type: Four-stroke60°

Constant Load Steady-State Fluctuation Rate±0.25%

Power Deviation:≦±5%

Generator specifications

Generator Brand:Stamford/Stanford

Manufacturer: Cummins Generator Technologies (China) Co., Ltd.

Generator Model:  HCI544D

Capacity:450KW

Voltage:400V/230V

Form: Brushless, Single-Bearing, Rotating Magnetic Field

Excitation System: Self-excitation, Automatic Voltage Regulation

Winding Structure:2/3 pitch

Three-phase four-wire

Insulation Grade:H Grade

Power Factor:COSΦ = 0.8 lag

Phone Interference Coefficient:TIF：<50

Wiring:Y-connection

Telephone Harmonic Coefficient:THF：<2%

Protection Level:IP23

Radio Frequency Interference (RFI): CompliantBS800 and VDE G, N ratings

Comply with Standards:GB755, BS5000 Part 3, VDE0530, NEMA MG1-22, IEC-34, GSA C22-100, AS1359

Standard Configuration

Engine Parts: Engine, Diesel Filter, Air Filter, Oil Filter, Charger, Starter Motor.

Generator Parts: Generator, Air Circuit Breaker.

Control System:LCD liquid crystal display controller, electronic speed controller.

Other parts: Water tank radiator, steel base, vibration pads.

Attachment Part: Muffler, Battery, Battery Wire, Engine Oil, Shock Absorber Pad.

Standard of Execution

Military Standard  GJB 5785-2006

National Standards  GB/T 2820-2002

Communication Standards  YD/T 502-2007

Industry Standards      JB/T 10303－2001

Environmental CertificationNoise and Vibration Class A / Exhaust Class A

Tiel Quality Certification  YD/T502-2007*
