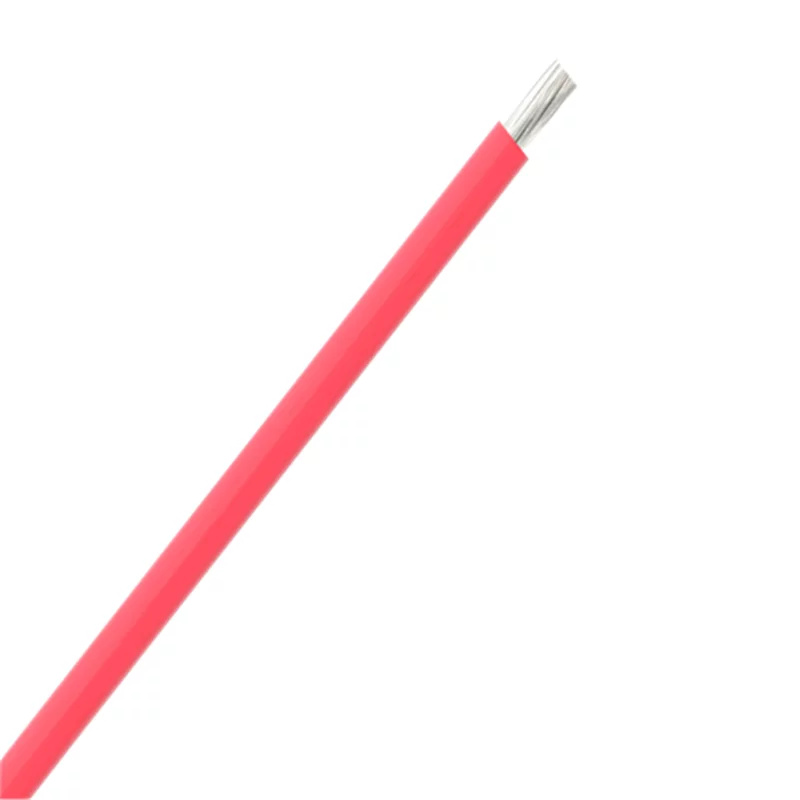

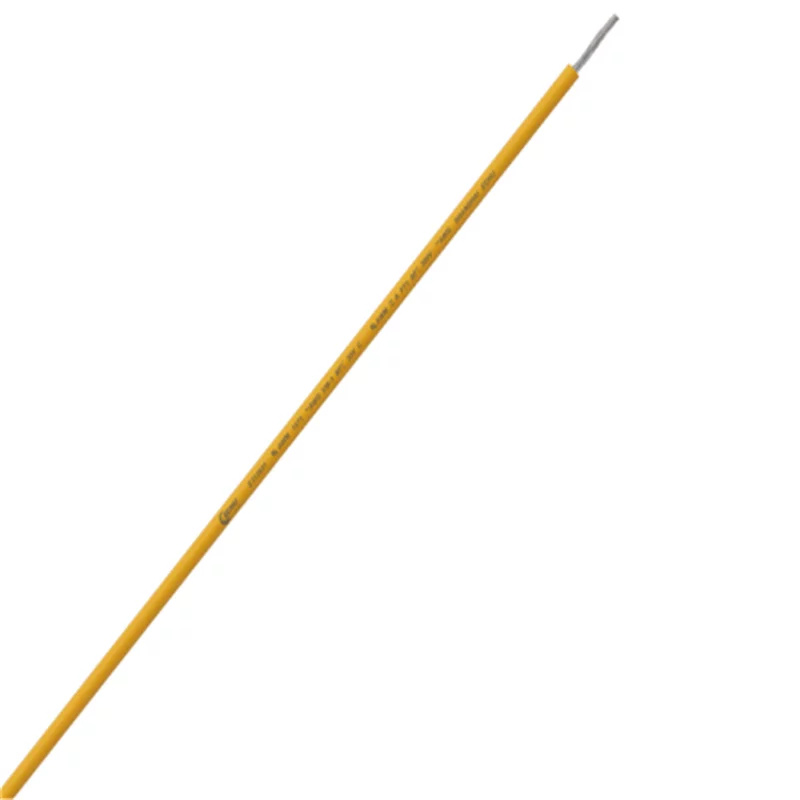

Yeechuang Cable Supplies UL1007 16AWG Tin-Plated Wires, 300V
Instructions for Use:
Rated Temperature: 80°C, 90°C
Rated Voltage: 300V
Standard: UL758 & UL1581
Conductors are made of single or stranded bare copper or tin-plated copper wire
Environmentally friendly polyvinyl chloride insulation
Insulation thickness is even, convenient for stripping and cutting.
Through ULVW-1 Vertical and Horizontal Flame Retardancy Test
Color: Available in single, double, and triple line options, as per order requirements.
(Kindly specify on the order)
Product Application: Used for internal wiring connections in electronic and electrical equipment.
| Prt-No. | Type | Material | specification AWG | Conductor No. | Conductor Dia | Insulaton Thick mm | Insulation outer Dia mm | area | ||
| series | least | most | ||||||||
| E150001 | UL | bare copper | 26 | 7 | 0.16 | 0.4 | 1.28 | ～ | 1.34 | 0.14 |
| E150002 | UL | bare copper | 24 | 11 | 0.16 | 0.4 | 1.41 | ～ | 1.48 | 0.22 |
| E150003 | UL | bare copper | 22 | 17 | 0.16 | 0.4 | 1.56 | ～ | 1.64 | 0.34 |
| E150004 | UL | bare copper | 20 | 26 | 0.16 | 0.4 | 1.74 | ～ | 1.83 | 0.52 |
| E150005 | UL | bare copper | 18 | 41 | 0.16 | 0.4 | 1.98 | ～ | 2.08 | 0.82 |
| E150006 | UL | bare copper | 16 | 54 | 0.18 | 0.4 | 2.33 | ～ | 2.45 | 1.37 |
| Prt-No. | Type | Material | specification AWG | Conductor No. | Conductor Dia | Insulaton Thick mm | Insulation outer Dia mm | area | ||
| series | least | most | ||||||||
| E150001 | UL | tinned | 26 | 7 | 0.16 | 0.4 | 1.28 | ～ | 1.34 | 0.14 |
| E150002 | UL | tinned | 24 | 11 | 0.16 | 0.4 | 1.41 | ～ | 1.48 | 0.22 |
| E150003 | UL | tinned | 22 | 17 | 0.16 | 0.4 | 1.56 | ～ | 1.64 | 0.34 |
| E150004 | UL | tinned | 20 | 26 | 0.16 | 0.4 | 1.74 | ～ | 1.83 | 0.52 |
| E150005 | UL | tinned | 18 | 41 | 0.16 | 0.4 | 1.98 | ～ | 2.08 | 0.82 |
| E150006 | UL | tinned | 16 | 54 | 0.18 | 0.4 | 2.33 | ～ | 2.45 | 1.37 |
