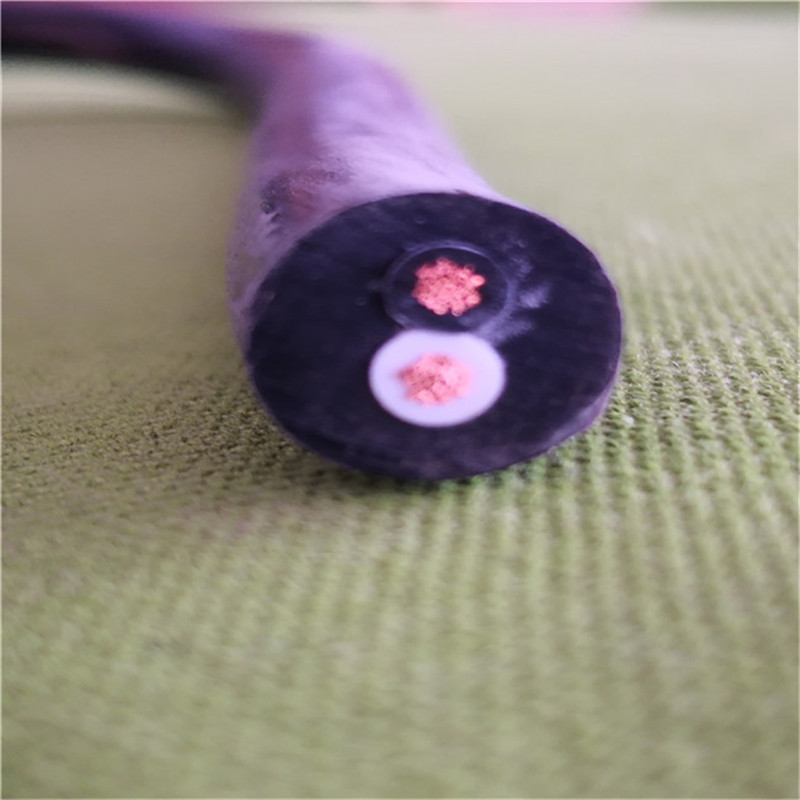

Product Structure and Colors

Application Standard: JIS C3312-2000.

Conductors: Single or stranded bare copper or tin-plated copper wire, JIS C3102/JIS C3152.

Insulation: PVC conforms to JIS C3312-2000.

Color Code: The core wire should use color identification in compliance with the JIS C3312-2000 standard.

Sheath Material: PVC Type Polyvinyl Chloride

Cover Color: Black (RAL 9005)

Technical Specifications

Rated Voltage: 600V

Test Voltage: 3000V/1MIN conforms to JIS C3005

Bend Radius

Fixed Installation: 4*D (Cable Outer Diameter)

Mobile Laying: 7.5*D (Cable Outer Diameter)

Operating Temperature:

Fixed installation: -30℃ to +80℃

Mobile Installation: -5℃ to +70℃

Flame Retardancy: Flame retardant and self-extinguishing in accordance with JIS C3005 Section 4.26

Features and Compliance

Feature: Compliant with PSE

Super-fine conductor, flexible with small bending angles

Meets: RoHS

Typical Applications

Internal and external flexible connection lines with no forced traction and direction, suitable for electrical appliances, instruments, power equipment, and automation devices, ideal for damp and oil-water mixture environments.
