Application Range:

Connectivity and control cables are suitable for dry or humid indoor environments, particularly for various electrical installations in industrial settings. Sections of 0.5mm² and above are especially suitable as control and connection flexible wires for machine tool manufacturing, integrated equipment installation projects, power stations, heating and air conditioning installations, and other applications. Due to their unique flexible design, they are also suitable for installations and fixed laying under free non-continuous reciprocating motion with stress relief. (Not for use as a drag chain cable.)

Product Features:

Due to its superior mechanical properties, excellent electrical insulation, good chemical stability, and water resistance, it also offers certain electrical insulation capabilities. Colored core wires are used for identification and control of cables, ensuring excellent product performance and enhanced safety of use.

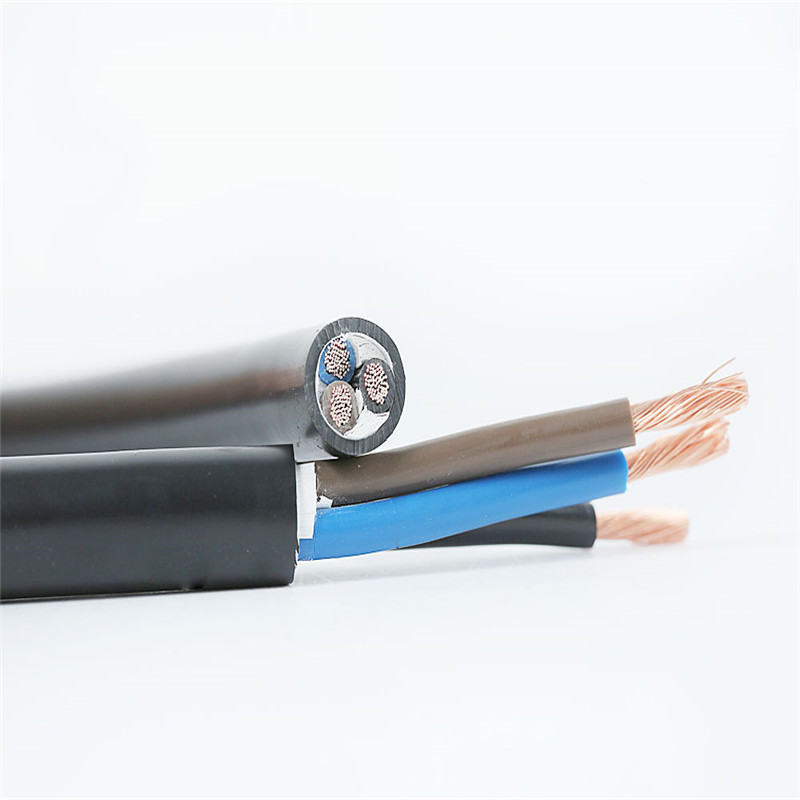

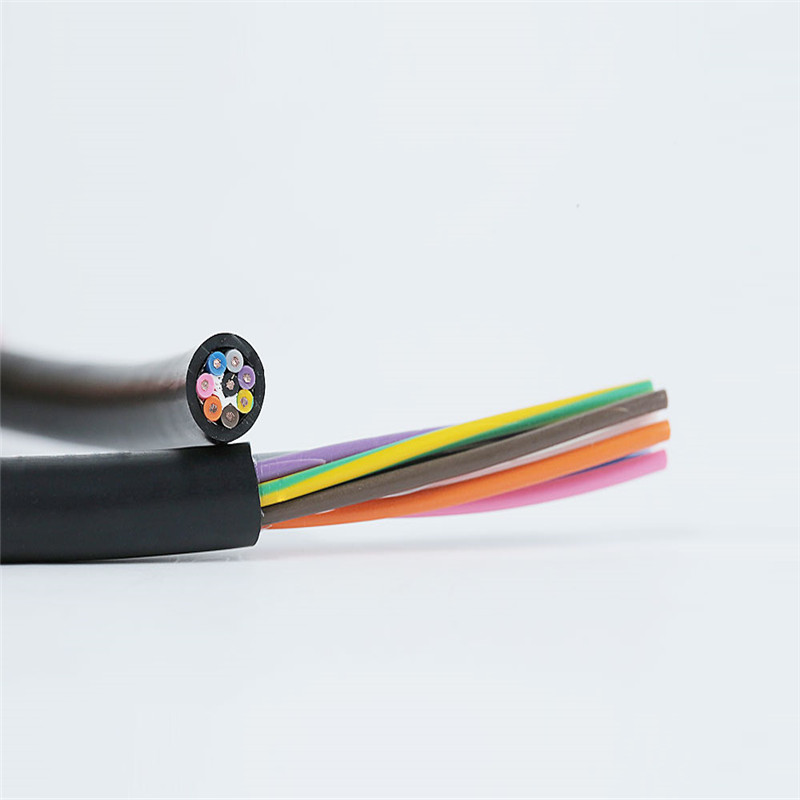

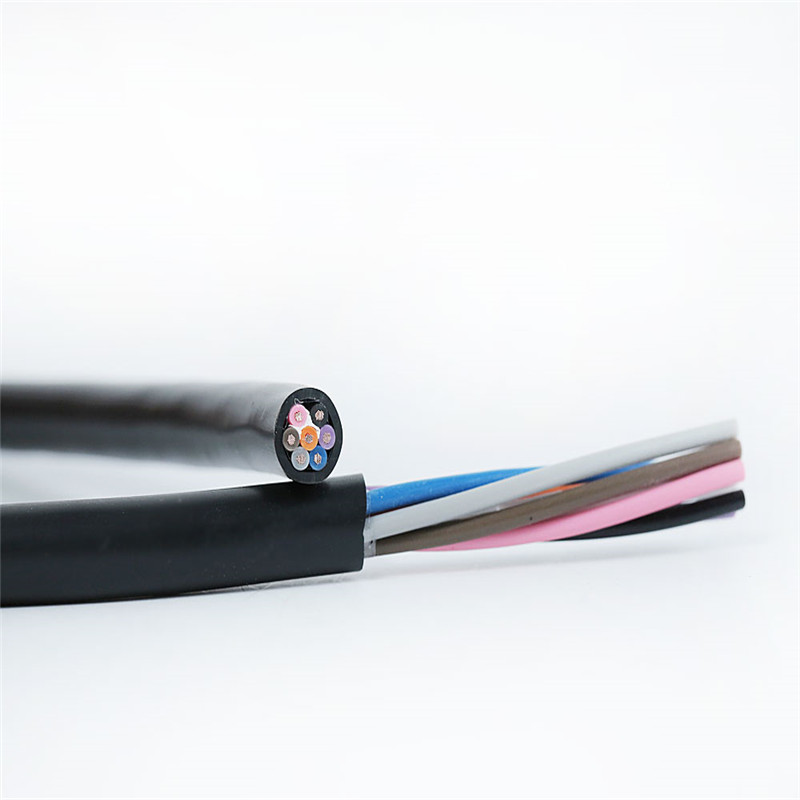

Cable Structure:

Conductor: Multi-strand ultra-fine drawn oxygen-free copper wire, compliant with VDE0295 CLASS 5 standard.

Insulation: Special blended PVC insulation

Color: ≤0.5mm color representation, conforms to DIN 47100

≥0.5mm Black digits with white numbering, over 3 cores with yellow-green ground wire

Lining Layer: Buffered with PP tape or non-woven fabric

Cover Sheath: 70-degree mixed PVC sheath, black (RAL9005) or gray (RAL7001)

Application Standard: JB8734.4-1998 GB5023.5-1997

Detailed specifications:

Bend Radius: Fixed Installation: 6x Cable Outer Diameter

Mobile Installation: 15x Cable Outer Diameter

Operating Temperature Range: Fixed Installation: -30℃ to +70℃

Mobile Installation: -10℃ to +70℃

Working Voltage: ≥0.75mm²: 300/500V; <0.75mm²: 300/300V
