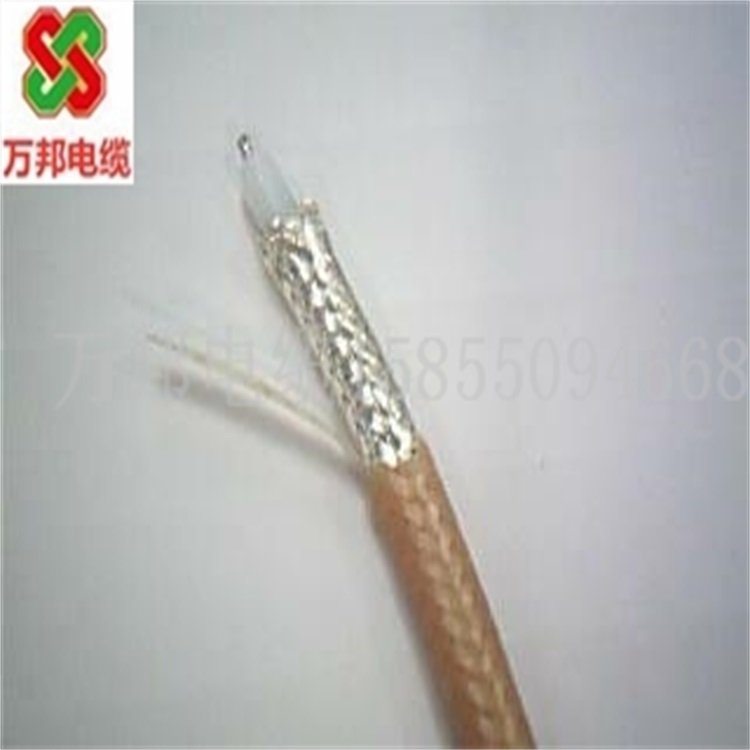

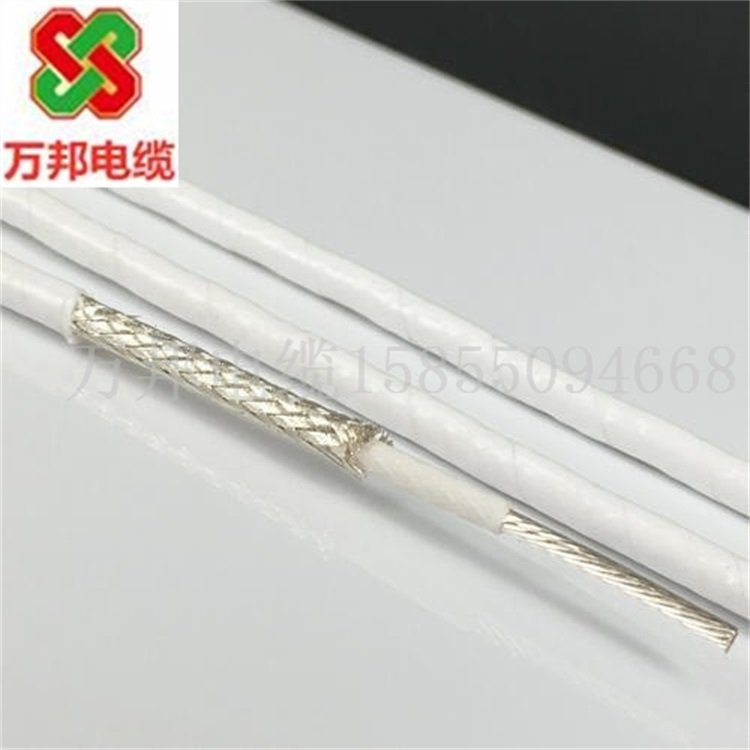

High-Temperature Coaxial Cable Applications
For transmission of signals within and outside the equipment in radio communication devices, fixed high-frequency and ultra-high-frequency transmission lines and similar high-frequency electronic devices.
Section 3: Specifications and Models of High-Temperature Coaxial Cables
SFF-50-X | SFF-75-X | ||||||||
Model | Military Specification (MIL-SPEC) | Inner conductor Number/Diameter mm | Nominal Insulation Outer Diameter mm | Named Cable Outer Diameter mm | Model | Military Specification (MIL-SPEC) | Inner conductor Number/Size mm | Nominal Insulation Outer Diameter mm | Named Cable Outer Diameter mm |
SFF-50-0.4 | 1/0.15 | 0.41 | 0.95 | SFF-75-1 | 1/0.17 | 0.87 | 1.80 | ||
SFF-50-0.6 | 7/0.08 | 0.61 | 1.50 | SFF-75-1.5-1 | RG179 | 7/0.10 | 1.50 | 2.55 | |
SFF-50-1 | RG178 | 7/0.10 | 0.87 | 1.80 | SFF-75-1.5-2 | RG179D | 7/0.10 | 1.50 | 3.20 |
SFF-50-1.5-1 | RG316 | 7/0.18 | 1.50 | 2.55 | SFF-75-2-1 | 1/0.41 | 2.20 | 3.20 | |
SFF-50-1.5-2 | RG316D | 7/0.18 | 1.50 | 3.20 | SFF-75-2-2 | 1/0.41 | 2.20 | 3.65 | |
SFF-50-2-1 | 1/0.73 | 2.20 | 3.30 | SFF-75-3-1 | 1/0.55 | 3.00 | 4.50 | ||
SFF-50-2-2 | 1/0.73 | 2.20 | 4.00 | SFF-75-3-2 | 1/0.55 | 3.00 | 5.50 | ||
SFF-50-3-1 | RG303 | 1/0.93 | 3.00 | 4.50 | SFF-75-5-1 | 1/0.82 | 4.60 | 6.00 | |
SFF-50-3-2 | RG142 | 1/0.93 | 3.00 | 5.50 | SFF-75-5-2 | 1/0.82 | 4.60 | 6.60 | |
SFF-50-5-1 | 1/1.48 | 4.60 | 6.40 | SFF-75-17-1 | 1/2.95 | 17.3 | 21.0 | ||
SFF-50-5-2 | 1/1.48 | 4.60 | 7.11 | ||||||
SFF-50-7-1 | 7/0.82 | 7.25 | 9.20 | ||||||
SFF-50-7-2 | RG393 | 7/0.82 | 7.25 | 10.2 | |||||
SFF-50-9-1 | 7/1.0 | 9.00 | 11.0 | ||||||
SFF-50-9-2 | 7/1.0 | 9.00 | 12.4 | ||||||
