Anhui Wanbang Special Cable Co., Ltd. specializes in manufacturing coiled cables.

Winch cable for cranes, high tensile strength, wear-resistant, drag-resistant, suitable for complex working conditions. Widely used in heavy machinery equipment such as port gantry cranes, container cranes, overhead cranes, bucket wheel excavators, automated equipment, ship loaders, and tower cranes, etc. with similar working conditions.

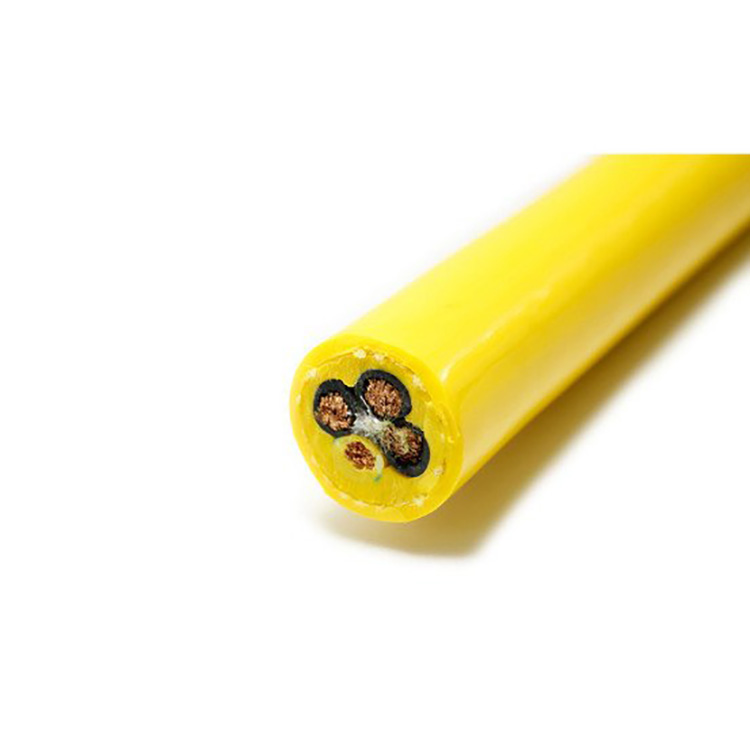

Cable for crane drum

Conductor: Fine oxygen-free bare copper wire, multi-strand braided, compliant with VDE0295/IEC Class 5 or Class 6 standards.

Insulation: High-quality NBR/automotive material/TPE blends, flexible and elastic.

Core wire marking: Color differentiation or numerical numbering.

Core wire structure: Anti-torsion design, composite cable assembly.

Strengthening Elements: Optional combination tensile cable components, including multi-strand hemp rope filling, galvanized steel wire rope, Kevlar tensile fibers, etc.

Inner sleeve: Compression-type high-strength special composite sleeve material.

Shielding: Woven屏蔽 from bare copper or antioxidant copper wire, weave density ≥70% or above 85

Outer sleeve: High-strength imported PUR material.

Cover color: Black, Yellow, Grey, Orange, (other colors available upon customer's request).

Cable Technical Parameters for Crane Drum

Working Voltage: Uo/U 0.6/1KV

Test Voltage: 3000V

Bend Radius: Fixed Installation: 5x Cable Outer Diameter; Mobile Installation: 7.5x Cable Outer Diameter

Operating Temperature: Portable Installation: –25° C to 80°C; Fixed Installation: –40° C to 80°C
