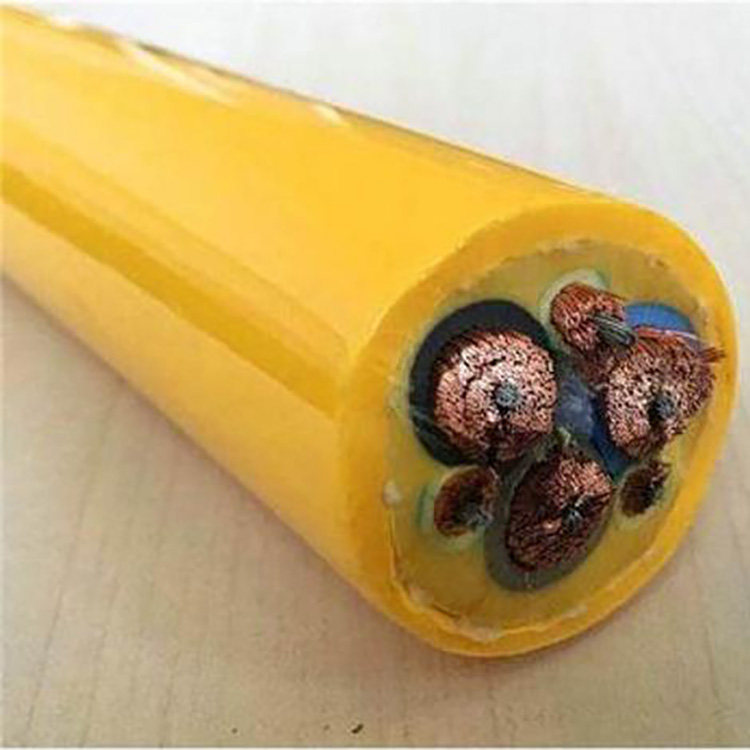

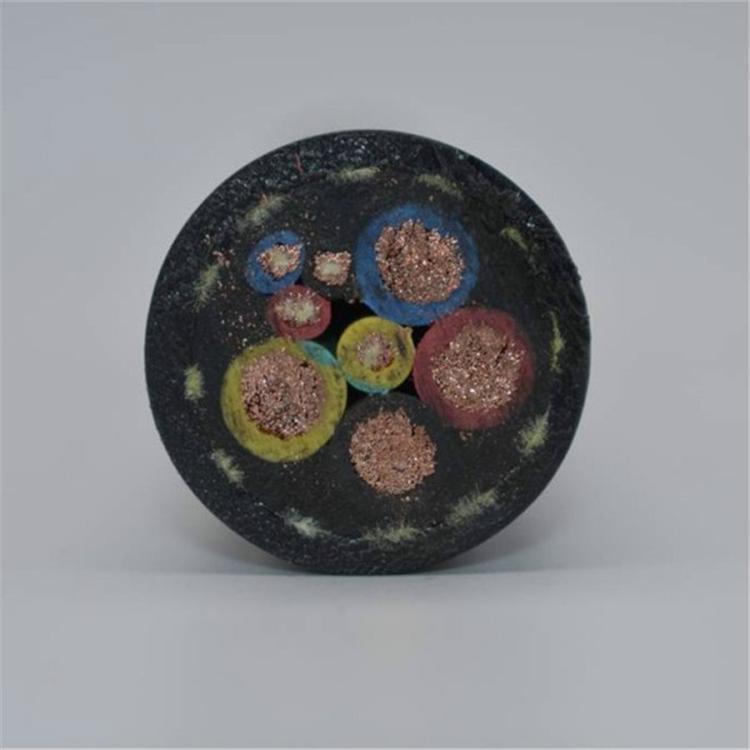

Coiled cables are applicable for reel machines, port machinery, ships, transportation equipment, and conveyors. They can also be used in large chain-link systems. The coiled cables can retract or extend guided by the drag shaft or other similar devices. Coiled cables can be installed in dry or humid indoor environments or in damp industrial settings, and they are also suitable for outdoor installation.Reeled cable product features: Such cables often require a smaller bending radius during use. The bending radius of the reeled cable depends on the cable structure, outer diameter, as well as the installation and usage method of the reeled cable.In most cases, coil cables can be installed in high-temperature and chemically corrosive environments. The black, weather-resistant nitrile jacket on the coil cables is perfectly suited to meet these usage conditions.Coiled cable features multi-strand fine twisted copper wire conductors, imported PVC/NBR insulation, core wires twisted together at small pitch; coated with a non-woven fabric layer; PUR outer sheath, flame-retardant, black, reinforced with steel wire.Power transmission and control cables, widely used in reel machines, large tower cranes, outdoor hoists for construction, and other vertical lifting devices.Product Features:This product features high wear resistance, cold resistance, corrosion resistance, softness, and oil-proof properties.Additional reinforcing steel can be added to enhance the mechanical load-bearing capacity.Excellent bending properties, suitable for frequent movement use.Cable Structure:Conductor: Made of 99.9999% multi-strand flexible oxygen-free copper wireInsulation: Imported PVC/NBRColor: Colored core wire or coded core wire with yellow-green grounded core wireProtective Sleeve: Imported PUR/TPUOuter sleeve color: Black or GreyElectrical Characteristics:Rated Voltage: U0/U 450/750 VTest Voltage: 3000VBend Radius: 8 x Cable Outer DiameterTemperature Range: -15°C to +105°C
