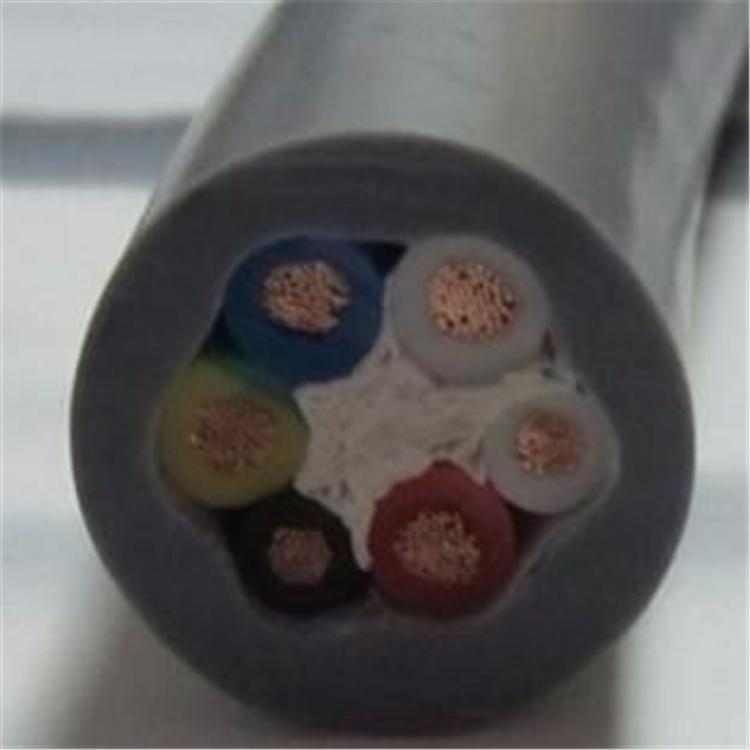

This product is a high-voltage round cable reel suitable for use with material handling equipment and transformers on wharfs, docks, mines, ports, and harbor cranes, rated for alternating current voltages of 6/10KV. The conductor features a tin-plated soft-core structure, with insulation made from imported silicone rubber material. The cable boasts high-temperature, cold-resistance, oil-resistance, corrosion-resistance, oil-proof, and wear-resistant properties. It is widely used in industries such as metallurgy, mining, power, petrochemicals, shipbuilding, ports, and the manufacturing of mobile equipment.
10KV High-Voltage Flexible Cable (Round) for Mobile Equipment Rolls
| Model | Voltage KV | Cable specification mm² | Cable external dimensions mm | Cable bend radius mm | Cable reference weight kg/m |
| YJGCFRP | 10 | 3×16+3×16/3 | 45.4 | 681 | 1.9900 |
| YJGCFRP | 10 | 3×25+3×16/3 | 55.5 | 832.5 | 2.9720 |
| YJGCFRP | 10 | 3×35+3×16/3 | 58.2 | 873 | 3.4040 |
| YJGCFRP | 10 | 3×50+3×16/3 | 66.6 | 999 | 4.5240 |
| YJGCFRP | 10 | 3×70+3×16/3 | 71.1 | 1066.5 | 5.3690 |
| YJGCFRP | 10 | 3×95+3×16/3 | 75.1 | 1126.5 | 6.2300 |
| YJGCFRP | 10 | 4×16 | 52.0 | 780 | 2.7340 |
| YJGCFRP | 10 | 4×25 | 61.1 | 916.5 | 3.7370 |
| YJGCFRP | 10 | 4×35 | 64.1 | 961.5 | 4.3010 |
| YJGCFRP | 10 | 4×50 | 73.4 | 1101 | 5.7300 |
| YJGCFRP | 10 | 4×70 | 78.4 | 1176 | 6.8360 |
| YJGCFRP | 10 | 4×95 | 83.5 | 1252.5 | 8.1260 |
| YJGCFRP | 10 | 3×16+1×10 | 51.1 | 766.5 | 2.5670 |
| YJGCFRP | 10 | 3×25+1×10 | 59.2 | 888 | 3.5510 |
| YJGCFRP | 10 | 3×35+1×16 | 63.0 | 945 | 4.1380 |
| YJGCFRP | 10 | 3×50+1×25 | 72.8 | 1092 | 5.4760 |
| YJGCFRP | 10 | 3×70+1×35 | 76.7 | 1150.5 | 6.6190 |
| YJGCFRP | 10 | 3×95+1×35 | 82.6 | 1239 | 7.8980 |
