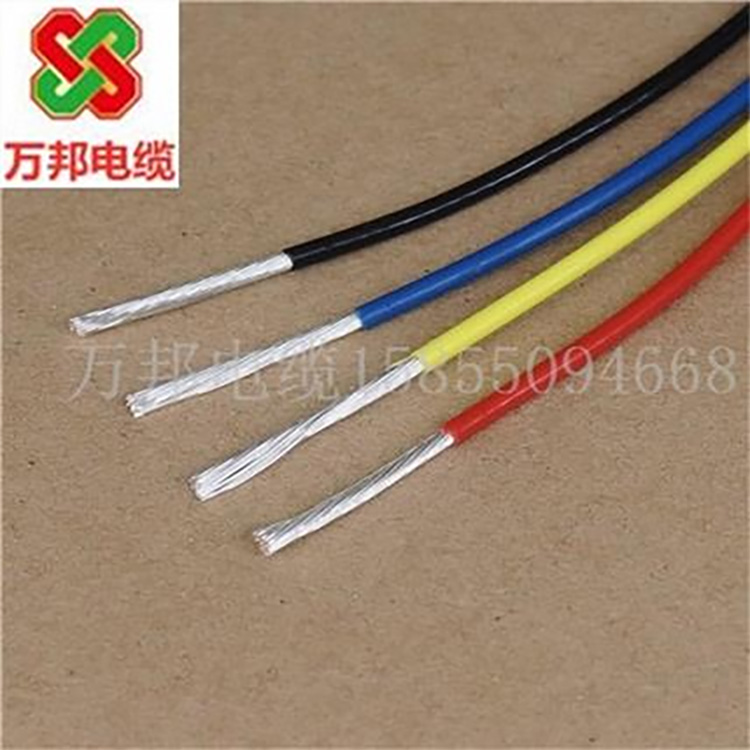

Silver-plated Shielded Wire AFP AFP11 AFP21, 3*0.2, 3*0.5mm2

Pt100 Thermistor Three-core, Four-core, Six-core Shielded Silver-plated Wire. Pt100 Thermistor Dedicated Extension Cable, Temperature Measurement Wire.

Model: KHFRP21 AFP AFP11 AFP21 Common Specifications: 3*0.2, 3*0.5mm², 6*0.5mm²

Resistance temperature detector scales: CU50, G53, Pt100, Pt500, Pt1000. Wire cores: 2 cores, 3 cores, 4 cores, 6 cores, 8 cores.

Core Specifications: 3*7/0.15 | 3*7/0.20 | 3*19/0.15 | 3*19/0.16 | 3*19/0.18 | 6*7/0.15 | 6*7/0.20 | 6*19/0.15 | 6*19/0.16 | 6*19/0.18

Insulation Color of Core Wire: Two reds and one white, or two whites and one red, or as per other requirements

Outer Diameter Insulation: White transparent imported oil and temperature-resistant PTFE, blue imported oil and temperature-resistant PTFE, red imported oil and temperature-resistant PTFE, or other colors.

Insulating Materials: Imported oil-resistant TEF (260℃), TEF (200℃), PVC materials (106℃), silicone rubber flexible wires.

The shielding layer consists of: silver plated layer/copper wire layer/tin plated layer
