Polyurethane cable conduit

Standard Conformity: Complies with DIN VDE 0285 standard.

Scope of Application: Machining industry, industrial machinery and machine tools, measurement, control, and electronic applications; particularly suitable for oily and moist areas within production lines under normal mechanical stress.

1. Superior mechanical properties and high flexibility, extremely wear-resistant, with temperature resistance from -55 to 80 degrees Celsius; 2. Resists minor impacts, waterproof, antimicrobial, ozone-resistant, oxidation-resistant, acid and alkali-resistant, oil-resistant, coolant-resistant, and lubricant-resistant; 3. The PUR outer sheath significantly extends the cable's lifespan, allowing for continuous operation and offering a higher cost-performance ratio; 4. Designed for drag chain systems with over 8 million cycles.

Section 3: Product Structure Conductor: Multi-strand ultra-fine bare copper wire conductor, conforming to DIN VDE 0295 Grade 6; Insulation: Imported Nuore polyurethane material; Color: Black wire coding or color core; Sheath: Textile fiber fabric sheath; Jacket: Imported Nuore polyurethane material; Section 4: Electrical Characteristics Rated Voltage: U0/U < 0.5mm2 300/300V, ≥ 0.5mm2 300/500V Test Voltage: U 3000V, conforms to DIN VDE 0281 Part 2 Temperature Range: °C Mobile Installation: -50°C to +80°C Fixed Installation: -60°C to +80°C Minimum Bend Radius: Fixed Installation: 5 times the cable outer diameter; Mobile Installation: When the travel distance is less than 10 meters, the bend radius is 7.5*d; When the travel distance is greater than or equal to 10 meters, the bend radius is 8*d.

Minimum bend radius during continuous operation: 7.5×D (cable outer diameter)

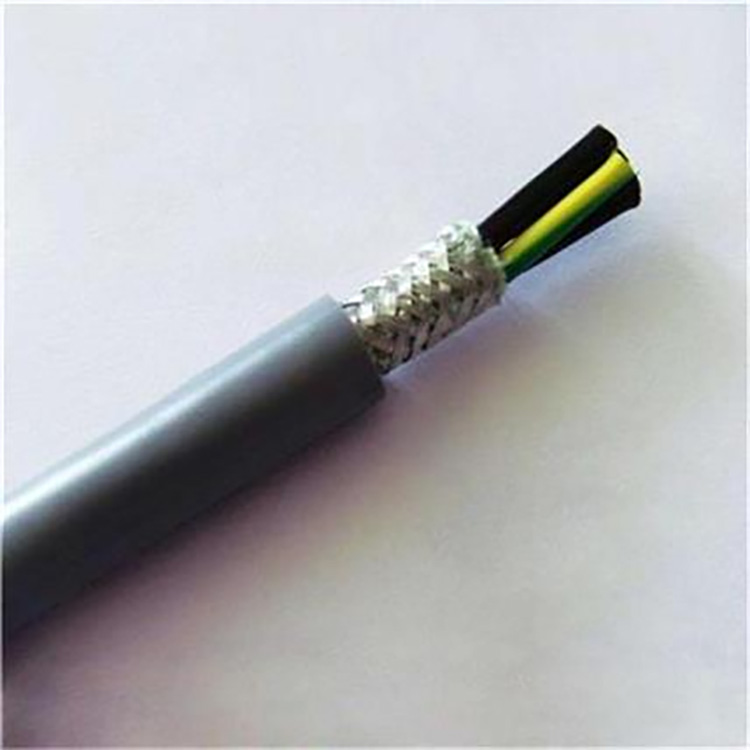

Five, Product Model and Specifications: GaoRou-PURFLEX Non-Shielded Polyurethane Cable Harness, GaoRou-PURFLEX-S Shielded Polyurethane Cable Harness

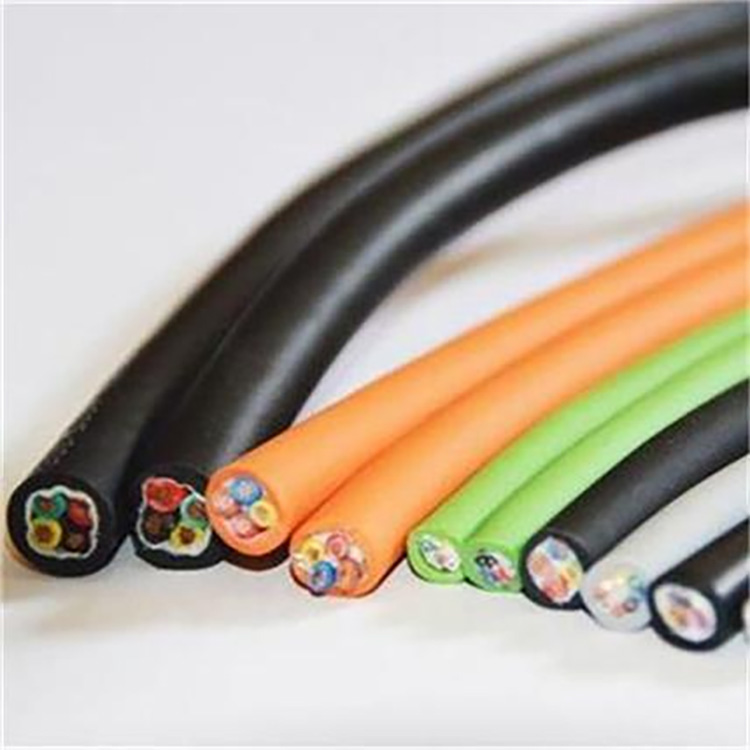

High-softness polyurethane flexible cables can be produced from 1-core to 80-core, with conductor sizes ranging from 0.08 to 240 mm².
