EKM71983PUR Cable with Double PUR Sheath, featuring imported PUR polyurethane extruded sheath and double-layer PUR polyurethane sheath, primarily for high-speed movement environments. It offers superior flexibility, wear resistance, oil resistance, UV resistance, flame retardancy, water resistance, and more, making it suitable for mobile applications.

Product Specifications:

EKM71983PUR Cable with Double Sheath Polyurethane Jacket

Application Range:

Suitable for indoor environments, both dry and humid, installations under free continuous reciprocating motion without strong stress relaxation or forced guidance, frequent bending in industrial use scenarios such as woodworking machinery, textile machinery, CNC machine tools, engraving machines, robotic arms, robots, processing equipment, logistics conveying systems, lifting areas, and automated cutting welding equipment, with good electromagnetic interference resistance.

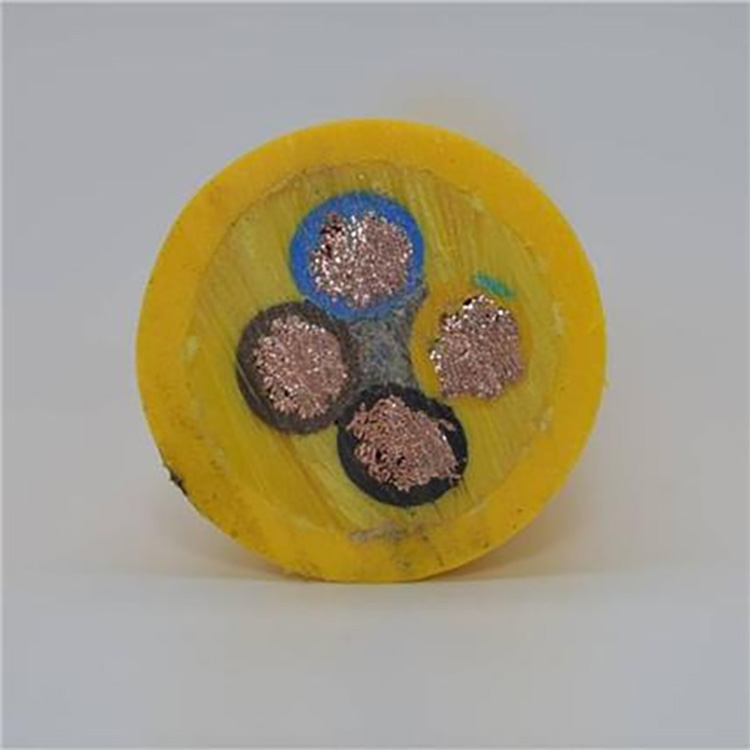

Cable Structure:

Conductor: Multi-strand ultra-fine drawn oxygen-free copper wire, compliant with VDE 0295 CLASS 6 standard

Core Color: Brown, Black, Blue, Purple, Pink, Orange for sizes less than or equal to 0.5mm

Black digital with white numbering, over 0.5mm thickness, with 3 cores or more and optional yellow-green ground wire (yellow-green optional).

Protective sleeve: PUR polyurethane

Inner sleeve: TVR/PUR polyurethane

Tinned wire braiding with a tin coating density of over 80%.

Black (RAL 9005) or Grey (RAL 7001)

Rated Voltage: ≥0.5mm: 300/500V; <0.5mm: 300/300V

Test Voltage: 2000V

Operating Temperature Range: Fixed Installation: -50°C to +90°C

Mobile Installation: -30°C to +90°C

Minimum bend radius: Fixed installation: 5 times the cable outer diameter.

Mobile Installation: When the stroke is less than 10 meters, the bending radius is 8 times the outer diameter of the cable.

When the travel distance exceeds 10 meters, the bend radius is 10 times the cable's outer diameter.
