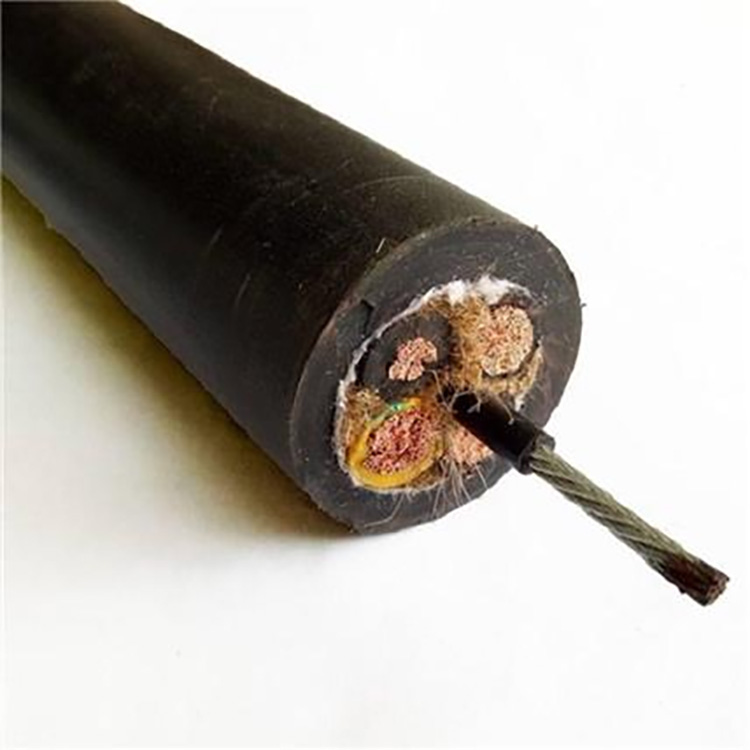

Steel wire reinforced overhead traveling cable - Tensile, bend-resistant, oil-resistant, wear-resistant, 3 million times without break. Features: high flexibility, tensile strength, bend resistance, wear resistance, low-temperature resistance, corrosion resistance, etc.
Cable Applications - Durable Flexible and Wear-Resistant Flat Cable
Suitable for mobile use with bridge cranes, gantry cranes, explosion-proof cranes, light rail hoists, jib cranes, electric hoists, overhead cranes, trolleys, and gantry hoists. The product is widely used in industries such as machinery, metallurgy, power, railway, water conservancy, ports, wharfs, indoor and outdoor warehouses, factories, docks, and outdoor storage yards.
Cable Performance
High flexibility, high wear resistance, bend resistance, oil resistance, acid/alkali resistance, low-temperature resistance, and tensile strength. Customizable according to the specific application environment of the customer!
Cable structure
Conductor: Made of multi-strand flexible oxygen-free copper wire, conforming to DIN VDE 0295 grade 6
Insulation: High-quality PVC blend Color: Color-coded core
Enhanced Part: High strength, high flexibility aviation galvanized steel wire
Sheath: High-quality Imported PUR Polyurethane Composite/Nitrile Composite
Color: Black or Grey
Cable specifications
Rated Voltage: U0/U ≤ 1.5mm2 300/500 V
U0／U＞1.5 mm2 450／750 V
Test Voltage: U 2500V
Temperature Range: Mobile Installation: -15°C to +70°C
Fixed Installation: -20℃ to +70℃
Specialized cold-resistant flexible sheath maintains its softness at temperatures as low as -15°C.
