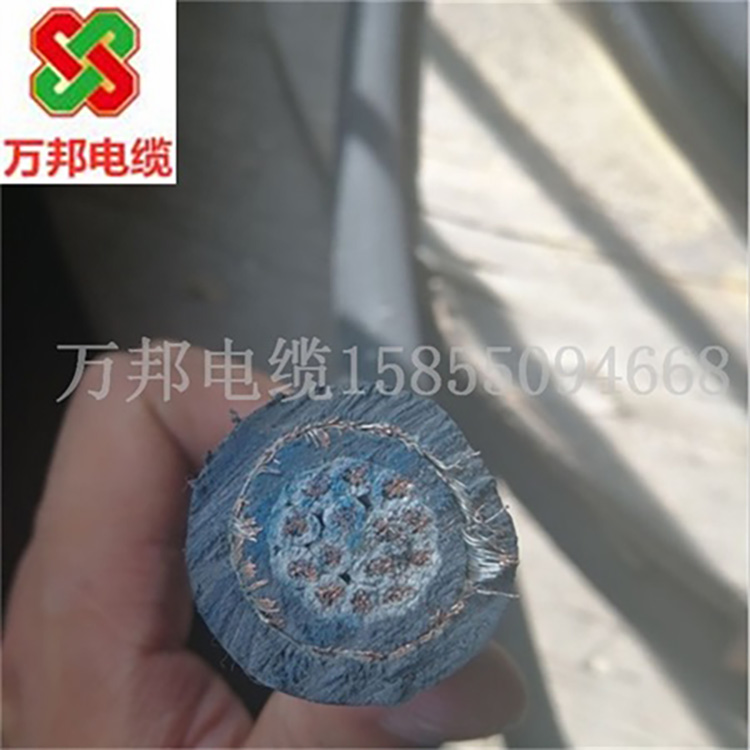

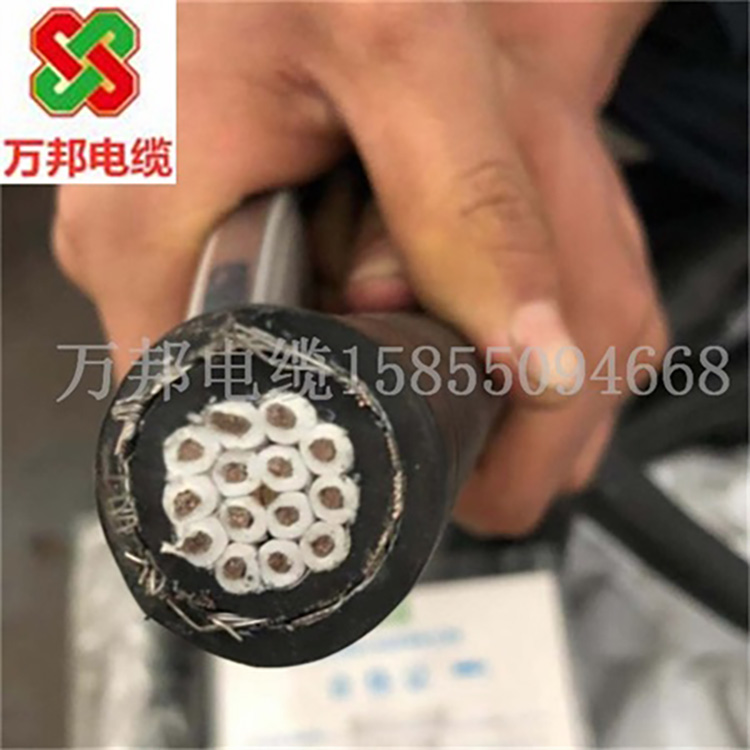

EV-WDYJYJPYJ Low-smoke, halogen-free cross-linked polyolefin insulated copper wire braid shielded electric vehicle charging cable

EV (High-Voltage) Cables for Internal Use

High-voltage cables for electric vehicles are used to connect the charging port to the battery, the battery's internal components, the battery to the engine, and other components, serving as the medium for power transmission.

Due to the harsh in-vehicle application environment, high-voltage wires for electric vehicles have very stringent performance requirements.

Product features include:

Product is soft, with a bending radius below 5D; withstands high and low temperatures, oil, acid, alkali, water, wear, crack resistance, and UV resistance; good flame-retardant properties; excellent electrical conductivity with low conductor temperature rise.

Product Standards: (Refer to ISO 6722 and China's GB/T 12528)

Product Material: Insulation: 125°C, 150°C XLPE

Housing: 125°C, 150°C XLPE

Cable Characteristics: Rated Temperature: -40°C to 125°C, -40°C to 150°C

Rated Voltage: 600V, 1000V, 1500V
