KFFP High Temperature Control Cable
TICW/03-2009 standard

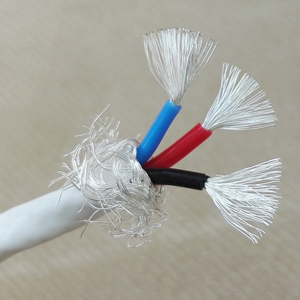

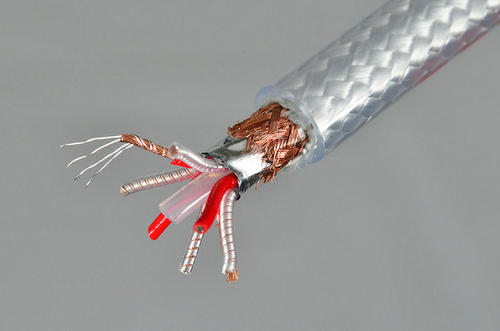

Section 1: Diagram of High-Temperature Control Cable
High-Temperature Control Cable Applications
High-temperature control cables are used for the control wiring of electrical equipment and appliances. They operate at a long-term working temperature of 200°C, with a bend radius not less than 8 times the cable's outer diameter. Cables with armor or shielding should have a bend radius not less than 15 times the cable's outer diameter. These cables are suitable for high-temperature environments in industrial and mining enterprises, energy and transportation departments, and for controlling and protecting circuits at AC rated voltages below 450/750V. Fluoroplastic insulated and sheathed control cables are applicable.
Section 3: High-Temperature Control Cable Models and Composition
P1 Tin-plated wire shielding, P2 Copper strip shielding, P3 Aluminum/plastic composite film shielding, 9 Steel wire braided armor
For example:
Copper-core Fluoroplastic Insulated Fluoroplastic Sheathed Copper Wire Shielded Control Flexible Cable, for mobile laying, rated voltage 450/750V, 19 cores, 1.5mm².
KFFRP-450/750V 19x1.5mm2
Copper-core Fluoroplastic Insulated Fluoroplastic Sheathed Control Cable, for fixed laying, rated voltage 450/750V, 7 cores, 1.5mm².
KFF-450/750V 7x1.5mm2
Section 4: High-Temperature Control Cable Specifications
Model | Conductor Nominal Section Areamm2 | ||||||
0.5 | 0.75 | 1.0 | 1.5 | 2.5 | 4 | 6 | |
Core Count | |||||||
KFF KFFP | - | 2-19 | 2-12 | ||||
KFFP2 | - | 2-19 | 2-12 | ||||
KFFR | 2-19 | 2-12 | |||||
KFFRP | 2-19 | 2-12 | |||||
KFF9F | - | 2-19 | 2-12 | ||||
Note: The recommended series of cores are:2, 3, 4, 5, 7, 8, 10, 12, 14, 16, 19 cores | |||||||
V.High-Temperature Control Cable Insulation Nominal Thickness
Conductor Nominal Section Area mm2 | Insulation Nominal Thicknessmm | Conductor Nominal Section Area mm2 | Insulation Nominal Thicknessmm | ||
450/750V | 0.6/1Kv | 450/750V | 0.6/1Kv | ||
0.5,0.75 | 0.30 | 0.35 | 2.5 | 0.35 | 0.40 |
1 | 0.30 | 0.35 | 4 | 0.45 | 0.50 |
1.5 | 0.30 | 0.40 | 6 | 0.45 | 0.50 |
Six.High-Temperature Control Cable Sheath Nominal Thickness
Assumed outer diameter before packing sleeve compressiond mm | Sleeve Nominal Thickness mm | Assumed outer diameter prior to packing sleeve compressiond mm | Housing nominal thickness mm |
d≤10 10＜d≤16 | 0.6 0.7 | 16＜d≤25 25＜d≤30 | 0.9 1.1 |
Note: Large diameter fluoroplastic insulated sheath control cables are not considered at this time. | |||
Note:High-temperature control cable insulation sheath materials are all made of virgin material: polytetrafluoroethylene ethylene (PFA, FEP, F46, Teflon, fluoroplastic, Teflon). The product features resistance to extreme temperatures of -65~200°C, -65~260°C, oil resistance, corrosion resistance, acid and alkali resistance, and aging resistance.
