YVVB, YVTB, YTVB, YTTB, TVVB, TVFB, YVFB flat cables are suitable for lifting equipment rated for AC voltage of 450V/750V or below, electrical tools, and also for soft cables used in various portable electrical equipment. The long-term working temperature for the 90 series should not exceed 90 degrees, while other models should not exceed 70 degrees. Prior to use, they should be fully suspended freely and fully untwisted.

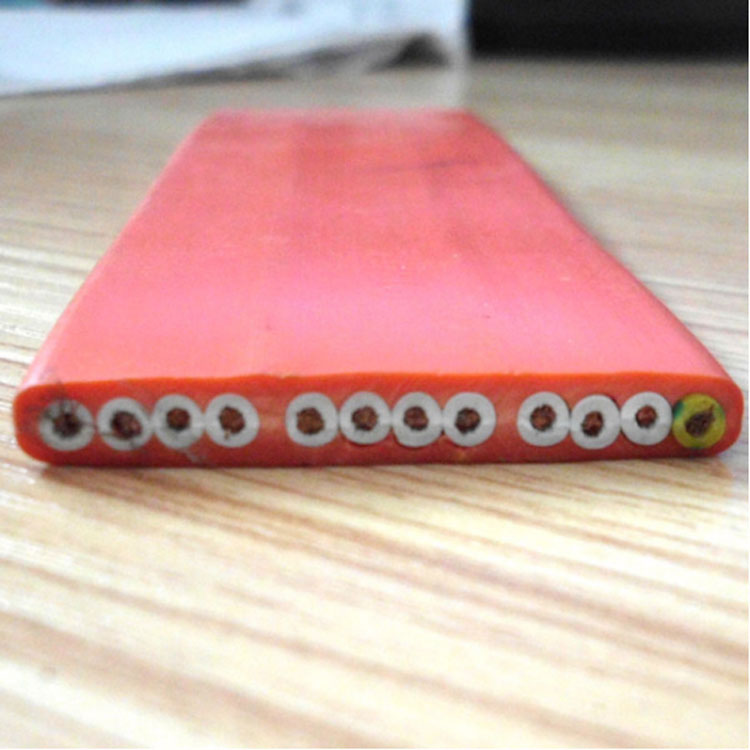

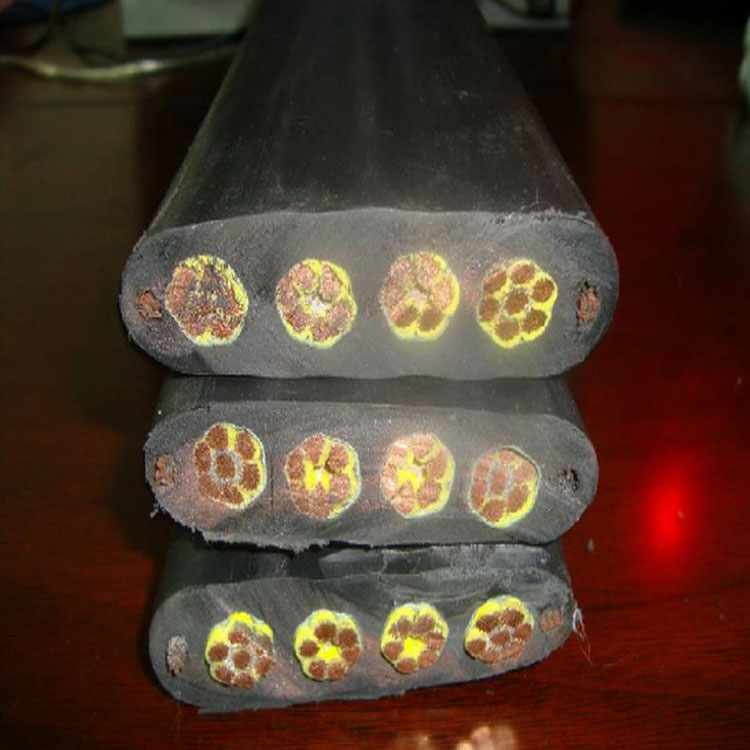

Flat Cable Product Structure: Steel wire conductor core + Polyvinyl Chloride (PVC) insulated or elastomer insulated + Optional reinforcing core (copper wire or others) + PVC insulated or elastomer sheath
Model and Name:
YVVB Insulated Polyvinyl Chloride (PVC) Sheathed Flat Cable (Flat Cable)
YVTB Insulated Elastomeric Sheath Flat Cable (Flat Cable)
YTVB Elastomeric Insulated Polyethylene Sheathed Flat Cable (Flat Cable)
Anhui Wanbang Special Cable Co., Ltd.
YTTB Elastomeric Insulated and Sheathed Flat Cable (Flat Cable)
| 3*0.75 | 4*0.75 | 5*0.75 | 6*0.75 | 7*0.75 | 8*0.75 | 9*0.75 | 10*0.75 | 11*0.75 | 12*0.75 | 13*0.75 |
| 3*1.0 | 4*1.0 | 5*1.0 | 6*1.0 | 7*1.0 | 8*1.0 | 9*1.0 | 10*1.0 | 11*1.0 | 12*1.0 | 13*1.0 |
| 3*1.5 | 4*1.5 | 5*1.5 | 6*1.5 | 7*1.5 | 8*1.5 | 9*1.5 | 10*1.5 | 11*1.5 | 12*1.5 | 13*1.5 |
| 3*2.5 | 4*2.5 | 5*2.5 | 6*2.5 | 7*2.5 | 8*2.5 | 9*2.5 | 10*2.5 | 11*2.5 | 12*2.5 | 13*2.5 |
| 3*4 | 4*4 | 5*4 | 6*4 | 7*4 | 8*4 | 9*4 | 10*4 | 11*4 | 12*4 | 13*4 |
| 3*6 | 4*6 | 5*6 | 6*6 | 7*6 | 8*6 | 9*6 | 10*6 | 11*6 | 12*6 | 13*6 |
| 3*10 | 4*10 | 5*10 | 6*10 | 7*10 | 8*10 | 9*10 | 10*10 | 11*10 | 12*10 | 13*10 |
| 3*16 | 4*16 | 5*16 | 6*16 | 7*16 | 8*16 | 9*16 | 10*16 | |||
| 3*25 | 4*25 | 5*25 | 6*25 | 7*25 | 8*25 | 9*25 | ||||
| 3*35 | 4*35 | 5*35 | 6*35 | 7*35 | 8*35 | |||||
| 3*50 | 4*50 | 5*50 | 6*50 | 7*50 | ||||||
| 3*70 | 4*70 | 5*70 | 6*70 | |||||||
| 3*90 | 4*90 | 5*90 | ||||||||
| 3*120 | 4*120 | 5*120 | ||||||||
| 3*150 | 4*150 | |||||||||
| 3*185 | 4*185 | |||||||||
| 3*240 | 60*.75 | 60*1.0 | 60*1.5 | 60*2.5 | 48*4 | 36*6 | 24*10 |
