Huiwanbang Special Cable Co., Ltd.

Marine WireCBYJR/DC CBPJR/DC
This product can be customized with user requirements for insulation materials such as ethylene propylene, cross-linked polyethylene, polyvinyl chloride, and natural rubber.—Manufactures styrene-butadiene insulated marine power cables. Mainly used for the power, lighting, and general control systems of various river and sea vessels, as well as offshore oil platforms and other aquatic structures.
This product is suitable for rated voltageU0/UPlease provide the Chinese content to be translated.0.6/1kVPower systems and below.

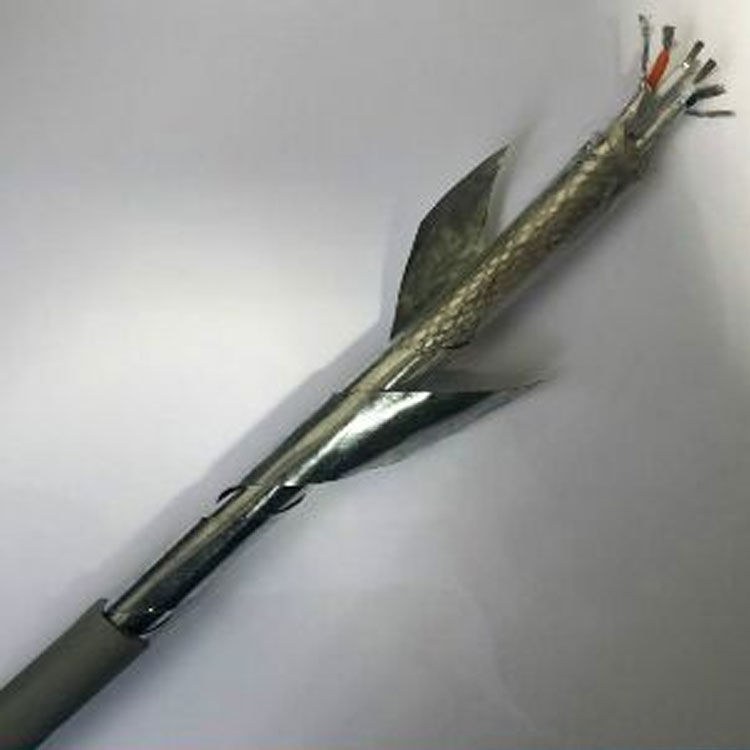

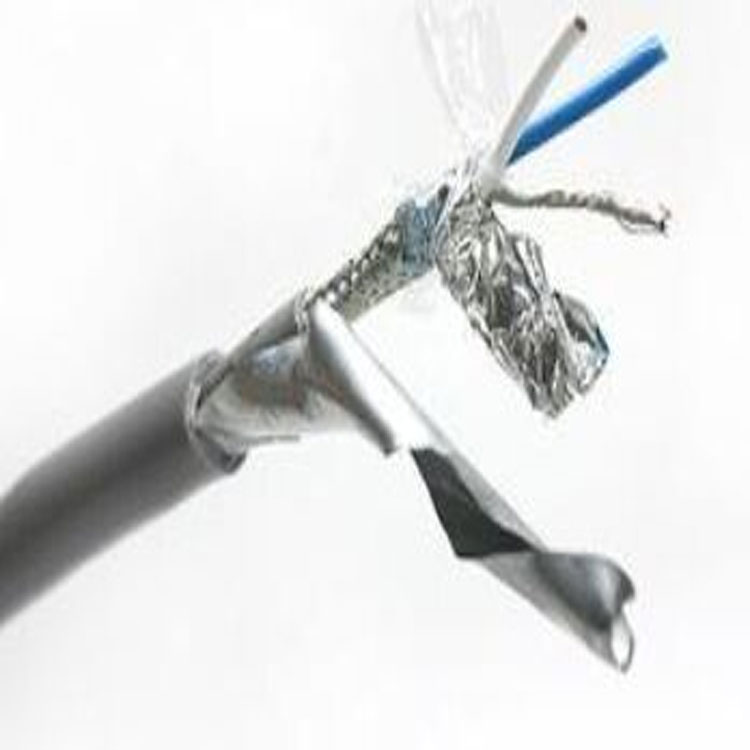

Section II: The structural illustration of the cable is as follows.:
III. Usage Features
1Rated VoltageU0/UPlease provide the Chinese content to be translated.0.6/1kVAnd below power systems. The conductor cables are permitted to have long-term high working temperatures:
Polyethylene Propylene Insulated Marine Power Cable90℃
Cross-linked polyethylene insulated marine power cables90℃
Polyvinyl Chloride (PVC) Insulated Marine Power Cable70℃
Natural—SBR Insulated Marine Power Cable65℃
2During a short circuit (duration not exceeding)5SThe high temperature of the cable conductor does not exceed::
EPR Insulated Marine Power Cable250℃
Cross-linked polyethylene insulated marine power cables250℃
Polyvinyl Chloride Insulated Marine Power Cable150℃
Natural—SBR Insulated Marine Power Cable150℃
3The laying temperature for cross-linked polyethylene insulated and polyvinyl chloride insulated cables should not be lower than0℃,The single-core cable features a small bend radius.20DMulti-core cables15D（DFor cable outer diameter. Ethylene Propylene insulation, natural—The laying temperature for styrene-butadiene insulated marine cables should not be less than0℃,Its single-core cable has a small bending radius.10DMulti-core cables6D（DFor cable outer diameter.
Four, cable models and names are listed as follows:1～4As shown.
Table1Type B and C Insulated Marine Power Cables, Common Models
Product Model Product Name
CEF/DA/SA/NA
CEF80/DA/SA/NA
CEF82/DA/SA/NA CEF90/DA/SA/NA
CEF92/DA/SA/NA
CEFR/DA/SA/NAPolyvinyl Chloride (PVC) insulated Chlorinated Polyethylene (CPE) sheathed marine power cableDAModel/SAType/NAType
Polyvinyl Chloride (PVC) insulated Chlorinated Polyethylene (CPE) jacketed bare copper wire braided marine power cablesDAType/SAType/NAType
Copper braided jacketed marine power cables with chlorinated polyethylene jacket and chlorinated polyvinyl chloride inner sheath.DAType/SAType/NAType
Polyvinyl Chloride (PVC) insulated Chlorinated Polyethylene (CPE) jacketed bare steel wire braided marine power cableDAType/SAType/NAType
Polyvinyl Chloride (PVC) insulated Chlorinated Polyethylene jacketed wire braid armored marine power cableDAType/SAType/NAType
Polyvinyl Chloride (PVC) insulated Chlorinated Polyethylene (CPE) jacketed marine power flexible cableDAType/SAType/NAModel
CEH/DA/SA/NA
CEH80/DA/SA/NA
CEH90/DA/SA/NA
CEH82/DA/SA/NA
CEH92/DA/SA/NA
CEHR/DA/SA/NAEthylene-Propylene Insulated Chlorosulfonated Polyethylene Sheathed Marine Power CableDAType/SAType/NAType
Ethylene-Propylene Insulated Chlorosulfonated Polyethylene Sheathed Bare Copper Wire Braided Marine Power CableDAType/SAType/NAType
Sulfur-chlorinated polyethylene insulated, steel wire braided armor, marine power cable with ethylene propylene dielectric inner sheath.DAType/SAType/NAType
Copper wire braided armor over jacketed ethylene-chlorine sulfonated polyethylene with ethylene propylene insulation, marine power cable.DAType/SAType/NAType
Copper-clad steel braided jacketed marine power cable with ethylene propylene insulating chlorosulfonated polyethylene inner sheath and polyvinyl chloride outer sheath.DAType/SAType/NAType
Ethylene-Propylene Insulated Chlorosulfonated Polyethylene Sheathed Marine Power CableDAType/SAType/NAModel
CEV/DA/SA/NA
CEV80/DA/SA/NA
CEV90/DA/SA/NA
CEV92/DA/SA/NA
CEV82/DA/SA/NA
CEVR/DA/SA/NAPolyethylene Chloroprene Insulated Ethylene Propylene Sheathed Marine Power CableDAModel/SAType/NAType
Neoprene insulated ethylene propylene chloride jacketed bare copper wire braid armoured marine power cableDAType/SAType/NAType
Polyethylene Insulated Chlorinated Polyethylene Sheathed Bare Steel Wire Braid Armored Marine Power CableDAType/SAType/NAType
Polyethylene Insulation Chlorinated Polyethylene Inner Wire Braid Sheath Chlorinated Polyethylene Outer Jacket Marine Power Cable,DAType/SAType/NAType
Polyethylene Insulated Chlorinated Polyethylene Inner Sheath with Copper Wire Braid and Chlorinated Polyethylene Outer Sheath Marine Power Cable,DAType/SAType/NAType
Polyethylene Chloride Ethylene Propylene Insulated Cable Sheath, Marine Power Flexible CableDAType/SAType/NAType
CEPF/SC/NC/NSC
CEPF80/SC/NC/NSC
CEPF86/SC/NC/NSC
CEPF90/SC/NC/NSC
CEPF96/SC/NC/NSC
CEPFR/SC/NC/NSCHalogen-free, low-smoke ethylene propylene insulating thermoplastic polyolefin sheathed fire-retardant marine power cablesSCType/NCType/NSCType
Halogen-free, Low-smoke Ethylene Propylene Insulated Thermoplastic Polyolefin Inner Sheath Bare Copper Wire Braided Armored Flame Retardant Marine Power Cable,SCType/NCType/NSCType
Halogen-free, low-smoke ethylene propylene insulating thermoplastic polyolefin inner sheath, copper wire braid armor, thermoplastic polyolefin jacket, flame-retardant marine power cable,SCType/NCType/NSCType
Halogen-Free, Low-Smoke Ethylene-Propylene Insulated Thermoplastic Polyolefin Inner Sheath, Braided Wire Armored, Flame-Retardant Marine Power Cable,SCModel/NCType/NSCType
Halogen-free, low-smoke ethylene propylene insulation thermoplastic polyolefin inner sheath, steel wire braided armor, thermoplastic polyolefin jacket, flame-retardant marine power cableSCType/NCType/NSCType
Halogen-free, low-smoke ethylene propylene insulation thermoplastic polyolefin sheathed flame-retardant marine electrical flexible cableSCType/NCType/NSCType
CEPJ/SC/NC/NSC
CEPJ80/SC/NC/NSC
CEPJ85/SC/NC/NSC
CEPJ90/SC/NC/NSC
CEPJ95/SC/NC/NSC
CEPJR/SC/NC/NSCHalogen-free, low-smoke ethylene propylene cross-linked polyolefin sheathed flame-retardant marine power cablesSCType/NCType/NSCType
Halogen-free, low-smoke ethylene propylene cross-linked polyolefin insulated copper wire braid armor fire-retardant marine power cableSCType/NCType/NSCType
Halogen-free, low-smoke ethylene propylene insulated cross-linked polyolefin jacketed copper wire braided with cross-linked polyolefin flame-retardant marine power cablesSCType/NCType/NSCType
Halogen-free, low-smoke ethylene propylene cross-linked polyolefin insulated, bare steel wire braid armored, flame-retardant marine power cableSCType/NCType/NSCType
Halogen-free, low-smoke ethylene propylene cross-linked polyolefin inner sheath, steel wire braid armor, cross-linked polyolefin outer sheath, flame-retardant marine power cableSCType/NCType/NSCType
Halogen-free, low-smoke ethylene propylene cross-linked polyolefin sheathed flame-retardant marine power flexible cableSCType/NCType/NSCType
