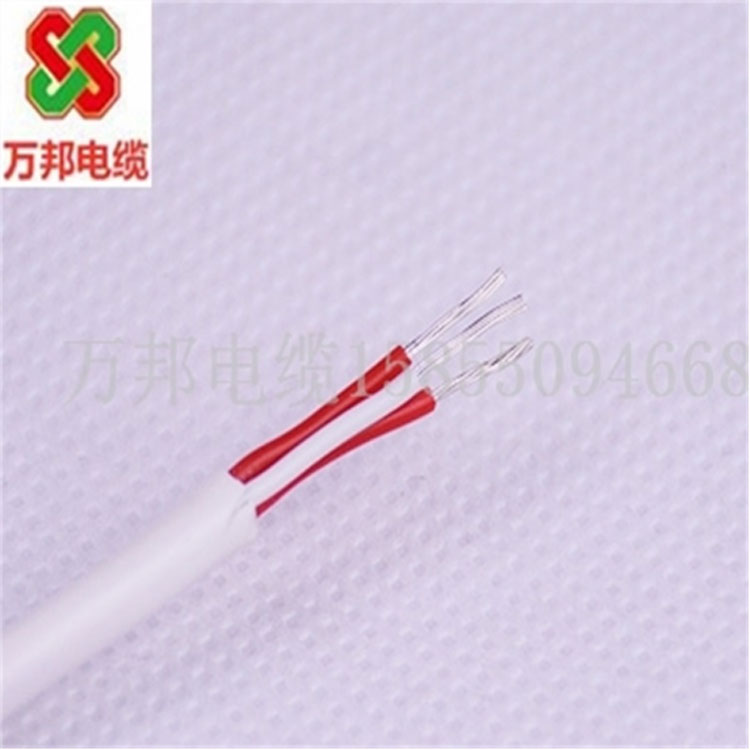

Product Model Abbreviation: F46 Insulating Silicone Rubber Sheath Power Flexible Cable
Conductor Material: Oxygen-Free Copper Wire
Insulating Material: F46 Insulation
Shielding Material: /
Insulation Material: Heat-resistant silicone sheath
Structure: Braided
Enhanced Component: /
Armored Materials: /
Conductor Color: Color differentiation for up to 5 cores, black wire body with white numeric numbering for more than 5 cores.
Flammability: Compliant with IEC 60332
Working Voltage: 450/750V
Factory Test Voltage: 2000V-3000V
Bend Radius: 8 times the cable outer diameter
The long-term working temperature should not exceed +180℃.
Operating temperature should not be below -40℃ for long-term use.
Flexibility, moisture resistance, cold resistance, oil resistance, UV resistance
Can withstand moderate mechanical stress
High electromagnetic interference resistance
Cable Appearance: Round (Flat cables are flat-shaped)
Warranty Period: Two years from the date of receipt of goods by the customer
Printing Requirements: Cable outer sheath surface printing: Manufacturer's name, model, specification, voltage, meter marking
Eco-friendly Model: WDZ-YGC-F46R
Fire-resistant Model: NH-YGC-F46R
Flame Retardant Model: ZR-YGC-F46R
Model: IA-YGC-F46R
