Suction dredge barge

⑴Suction dredger, also known as a mud harvester, is a model designed based on the customer's site. It uses hydraulic cutters to chop or mix soil and sandstone, blending the sand with water to increase the liquid concentration. Then, a sand pump is used to suck the mixture of mud, sand, and water and discharge it to the site.

⑵ Due to the cutter suctionDredgingThe vessel is suitable for a wide range of waterways and operational conditions, enabling the completion of挖掘 (excavation), 输送 (transportation), 排出 (discharge), and 处理 (processing) in a single operation. This allows for continuous operation during the dredging process, resulting in its widespread application. This type of vessel has seen significant development, and construction units prioritize the procurement and use of cutter suction dredgers.

(3) Suction DredgeDredgingThe vessel is suitable not only for operations and deployments in the B and C navigation zones of the Yangtze River system but also for other waterways, harbors, and lakes, including dredging, excavation, reclamation, and strengthening embankments. It is also applicable for sediment removal and blowing fill excavation in small and medium-sized reservoirs, river transportation embankments, agricultural water conservancy construction, and flood control and drainage.

Dredging Vessel Overview

(1)This vessel is a self-propelled, steel-hulled, monocoque three-hull assembled dredger powered by a diesel engine, equipped with a bridge frame at the bow and double-row steel piles at the stern for positioning.

(2) The ship's winch is driven by a low-speed, high-torque hydraulic motor through a gear box to power the winch.Screw shaft material:High-qualitySupported by double-row spherical roller bearings.

(3) The vessel is equipped with an in-hold sludge pumpImpeller, pump casing, and liner are made of Cr26 material.Driven by a diesel engine connected to the marine gear box via a high-flexible coupling, the diesel engine is a Weichai Power model.

(4) The ship's winch is hydraulically driven, while the side-rolling winch, bridge winch, and stern pile positioning winch operate in an electric mode.

(5) This vessel is equipped with two diesel engines, the main engine powers the sludge slurry pump, and the auxiliary engine supplies electricity to the entire ship through a diesel generator set.

(6) Entire ship blasting and painting, equipped with night work lighting.

Manufacturing Scenario

Lifting and TransportationScenario

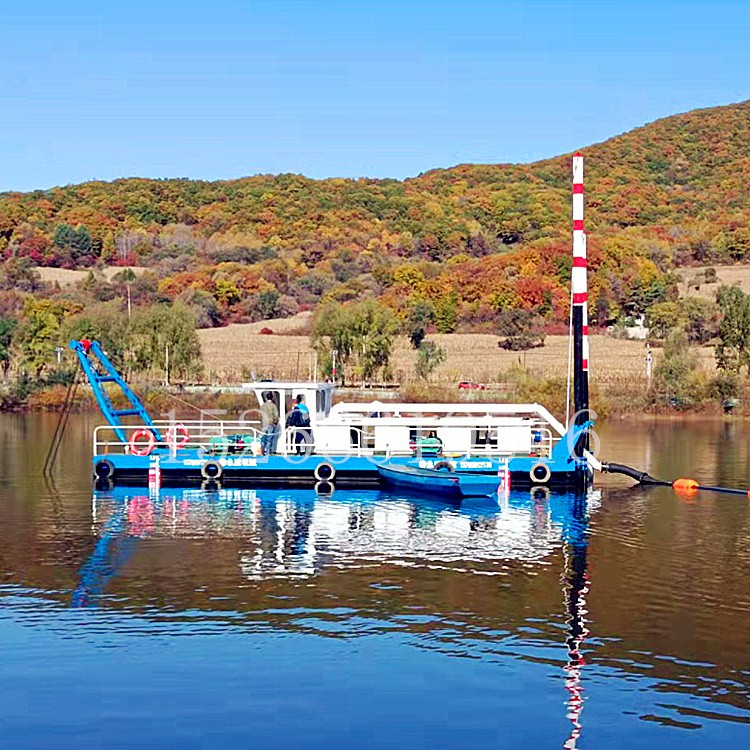

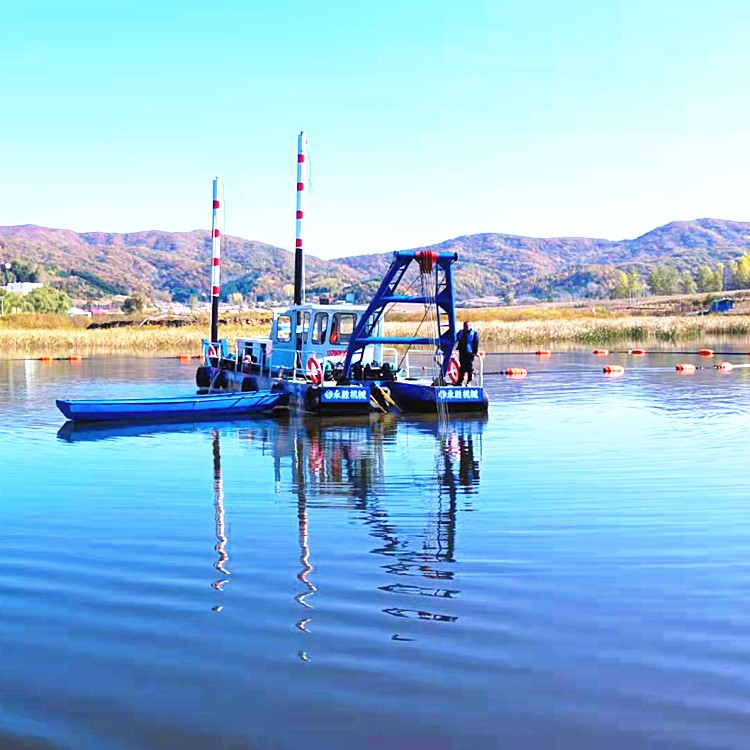

Construction Site

Configuration Parameters

After-sales Service

1. Installation adjusted

Upon arrival of the goods, we will send 1 experienced engineer to the site for installation assistance and guidance.

(2) Our dispatched installation engineers can mentor apprentice personnel during the installation and debugging process.

(3) If the shipowner who purchases our factory's equipment lacks qualified crew members, we can introduce skilled ship captains for on-site interviews.

2. Maintenance and Repair

(1) Diesel engines, generators, hydraulic systems, dredge pumps, winches, electrical distribution systems, and hulls all come with a 12-month warranty. Paid services and parts are available after the warranty period.

(2) If your operators are inexperienced or need fine-tuning, just report the issues to us, and we'll provide solutions. Every product is tested for actual operation in our factory before shipment to ensure proper functioning.

3. Training

We will provide professional training and operation guides to help you solve the issue.

(2) We guarantee that the accessories are always in stock and will ship within 24 hours.

(3) We offer you a convenient parts delivery method; just let us know the identification label of the parts you need to replace.

(4) Each product configuration document we produce is archived for future reference, ensuring that users only need to access it.

Thank you for your trust and support in Shandong Yongsheng Dredging Machinery Co., Ltd. We will deliver quality brand products to you. Yongsheng Machinery wishes you great success. If you have any questions, please contact me. We look forward to collaborating with you and welcome you to visit our factory.

If you have any questions, please contact me. We look forward to collaborating with you and welcome you to visit our factory.
