Electric dredge vessel

⑴Suction dredge ship, also known as a mud removal ship, is a model designed according to the customer's site. It uses a hydraulic cutter to chop or stir soil and sandstone, blending the sand with water to increase the liquid concentration. Then, a sand pump is used to suck up the mixture of mud, sand, and water and discharge it to the site.

⑵ Due to the cutter suctionDredgingThe vessels are suitable for a wide range of waterways and operational conditions, capable of completing excavation, transportation, discharge, and treatment processes in one go. This allows for continuous operation during dredging, leading to widespread application. This type of ship has seen significant development, with construction companies prioritizing the purchase and use of cutter suction dredgers.

(3) Suction dredgeDredgingThe vessel is suitable not only for operations and deployments in the B and C navigation areas of the Yangtze River system but also for other waterways, harbors, and lakes in projects such as dredging, excavation, reclamation, and embankment reinforcement. It is also applicable to the dredging and blowing filling excavation of small and medium-sized reservoirs, river transportation embankment construction, agricultural water conservancy projects, and flood control and drainage.

Dredging Vessel Overview

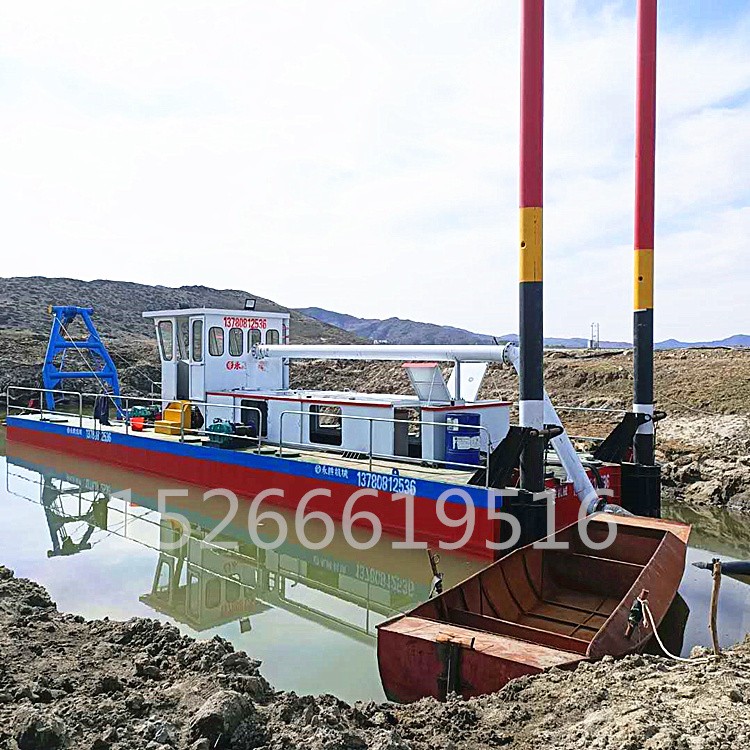

(1)This vessel is a non-self-propelled, steel-hulled, integrated box-shaped trimaran assembled with motor-powered dredging capabilities. The bow features an open bridge frame, and the stern is equipped with double-row steel piles for positioning.

(2) The ship's winch is powered by a low-speed, high-torque hydraulic motor, which drives the winch through a gear box.Shaft for winchHigh-qualitySupport with double-row spherical roller bearings.

(3) This vessel is equipped with an in-hull sludge pumpImpeller, pump casing, and liner are made of Cr26 material.Driven by an electric motor via a high-elastic coupling.

(4) This vessel's winch is hydraulically driven, while the cross-over winch, bridge winch, and stern steel pile positioning winch operate in an electric mode.

(5) The ship's main engine drives a sludge pump, which is started by variable frequency start-up.

(6) Full-ship shot blasting and painting, with night working lighting installed.

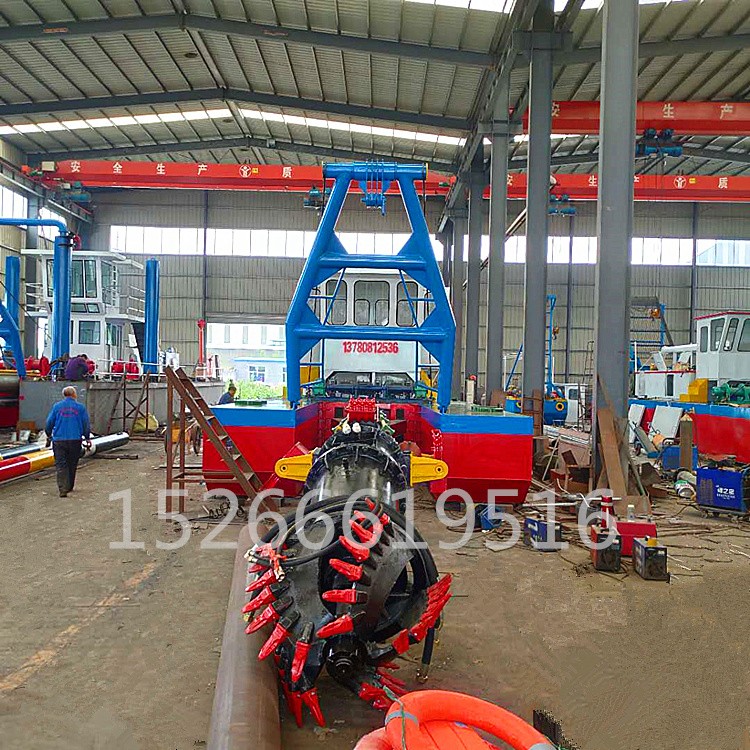

Manufacturing Scenario

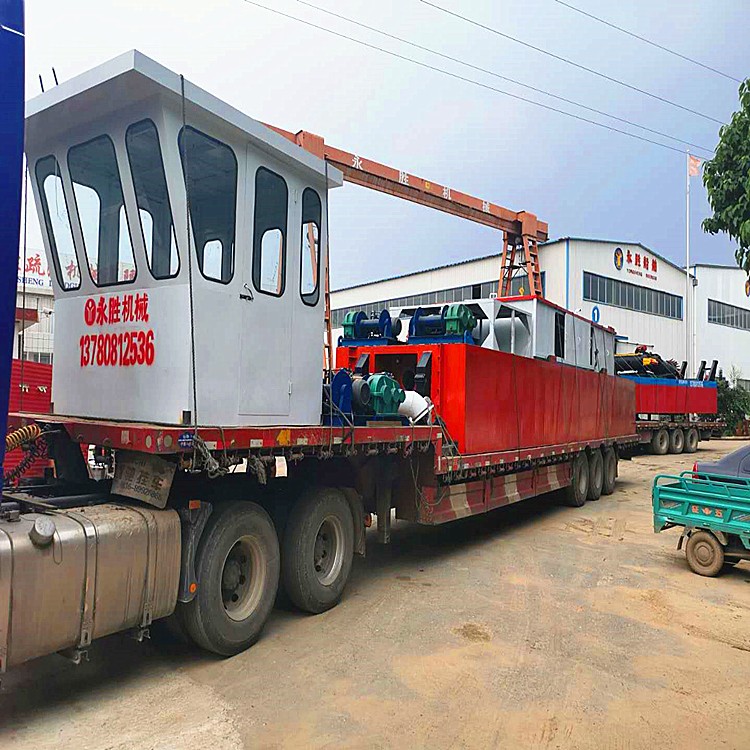

Hoisting and transportationScenario

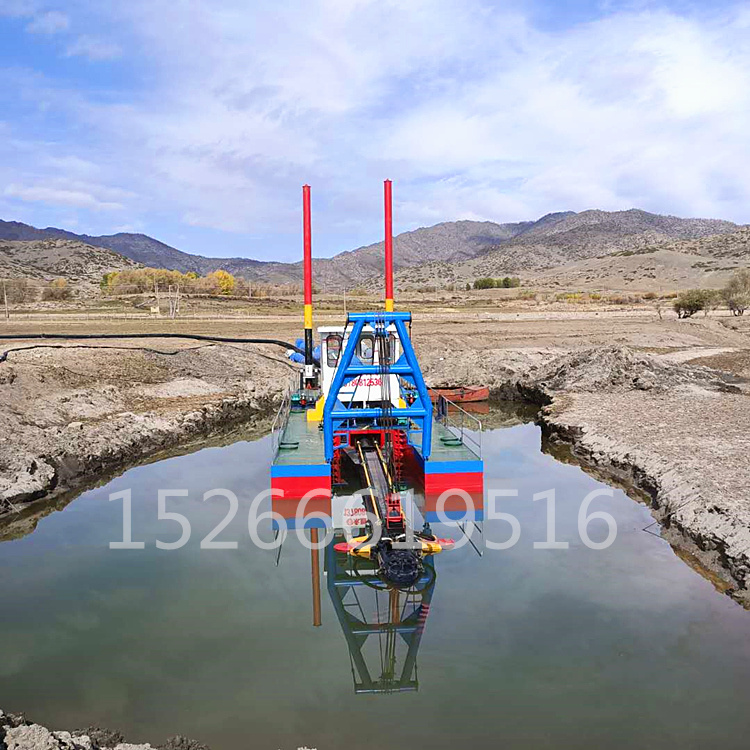

Construction Site

Configuration Parameters

After-sales service

1. Installation adjusted

Upon arrival of the goods, we will dispatch one experienced engineer to the site for installation assistance and guidance.

(2) Our company's installation engineers can mentor trainees during the installation and debugging process.

(3) If the shipowner who purchases our factory's equipment lacks qualified crew members, we can introduce skilled captains for on-site interviews.

2. Maintenance and Repair

(1) Motors, hydraulic systems, slurry pumps, winches, power distribution systems, and hulls all come with a 12-month warranty. Paid services and spare parts are available post-warranty.

(2) Should your operators be lacking experience or need fine-tuning, simply report the issues to us, and we'll provide you with solutions. We ensure each product undergoes in-house operation prior to shipment to guarantee its proper functioning.

3. Training

We will provide professional training and operation guides to help you solve the issues.

(2) We guarantee that the accessories are always in stock and will ship within 24 hours.

(3) We offer you a convenient parts delivery method, just let us know the label identification of the parts you need to replace.

(4) Each product configuration document we produce is archived for future reference.

Thank you for your trust and support in Shandong Yongsheng Dredging Machinery Co., Ltd. We will deliver quality brand products to you. Yongsheng Machinery wishes you great success. Should you have any questions, please feel free to contact me. We look forward to collaborating with you and welcome you to visit our factory.

If you have any questions, please contact me. We look forward to collaborating with you and welcome you to visit our factory.

Best regardsGreetings!
