Suction dredge barge

⑴Syringe aspirationStyleSediment ExtractionBoats, also known asSuction atomizerA dredging vessel designed according to the customer's site, it utilizesHigh-pressure waterProcess soil and sandstoneRobust erosion and cutting capabilitiesPlease provide the Chinese content you would like translated into American English.ClayThe sand merges with water, increasing the liquid concentration, and then the mixture of sand and water is suctioned and transported to the site using a sand pump.

⑵ Due toSyringe aspirationStyleSand dredgerWide application range, broad operational condition coverage, capable ofExtractEfficiently completes conveying, discharging, and processing in a single operation, enabling a continuous dredging process and thus gaining widespread application. This type of vessel has seen significant development, with construction units prioritizing their procurement and use.Suction-injection typeDredging vessel.

(3) Suction dredge bargeNot only suitable for operations and deployments in the B and C navigation areas of the Yangtze River system, but also applicable to other waterways, harbors, and lakes for dredging, excavation, reclamation, and embankment reinforcement projects. Additionally, it is suitable for sediment removal and blowing fill excavation in small and medium-sized reservoirs, river transportation embankments, agricultural water conservancy construction, flood control and drainage, etc.

This jet suction sand dredgerOverview

(1) This vessel is a general-purpose jet suction dredger, a non-self-propelled, steel, monocoque structure ship. The bow is equipped with an open-type raising and lowering dredging device. Two horizontal winches are installed on both sides of the bow to coordinate with the fixed winch at the stern for the ship's relocation and construction. A propeller is mounted at the stern for the vessel's free navigation.

(2) This vessel extracts mud and sand using the interior sludge pumpImpeller, pump casing, and liner are made of Cr26 material.Used in conjunction with high-pressure water pumps.Driven by a diesel engine via a high-flexible coupling connected to the ship's gear box.

(3) This vessel is equipped with one main diesel engine, one auxiliary diesel engine that drives a high-pressure water pump, and the high-pressure water pump uses a middle-open type supercharged centrifugal pump.

(4) A single cylinder diesel engine-driven sand pump hoist.

(5) A diesel generator set provides electricity for the entire vessel.

(6) The entire vessel is blast-washed and painted, equipped with night work lighting.

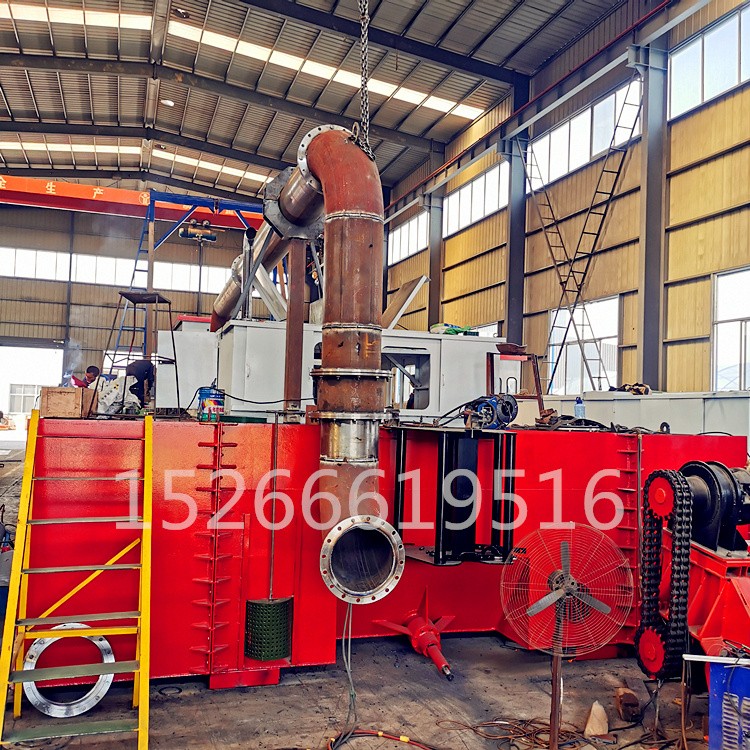

Manufacturing Scene

InstallationScenario

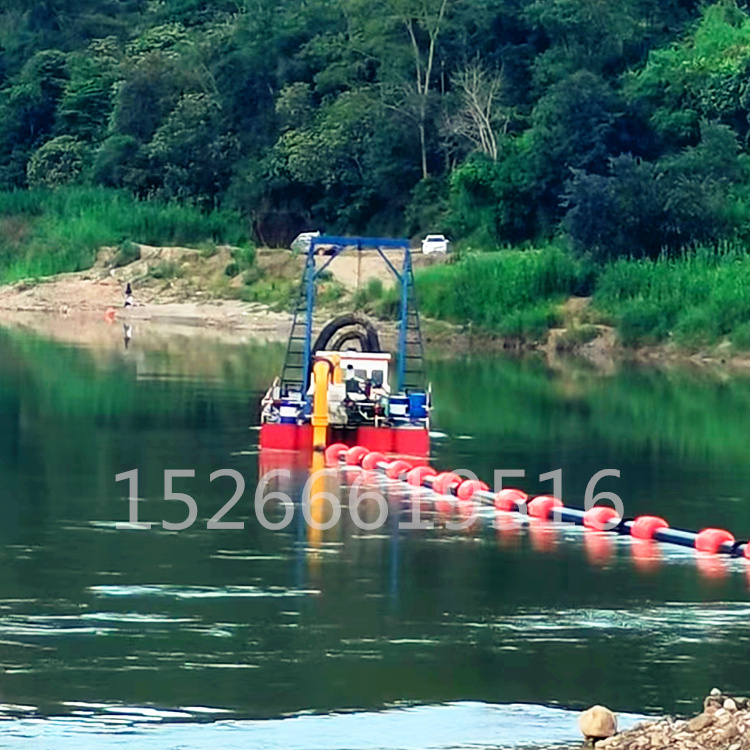

Construction Site

Configuration Parameters

After-sales Service

1. Installation and adjustment

After the goods arrive, we will send 1 experienced engineer to the site to assist with installation and provide guidance.

(2) Our assigned installation engineers can mentor trainees during the installation and debugging process.

(3) If the shipowner purchasing our factory's equipment lacks qualified crew members, we can introduce skilled captains for on-site interviews.

2. Maintenance and Repair

(1) Diesel engines, generators, winches, dredge pumps, electrical distribution systems, and hulls come with a 12-month warranty. Paid services and parts are available for later support.

(2) If your operators are inexperienced or need fine-tuning, simply report the issues to us, and we'll provide you with solutions. Every product undergoes in-house operational testing before shipment to ensure proper functioning.

Training

We will provide professional training and operation guides to help you solve the issues.

(2) We guarantee the availability of the accessories in stock and will ship within 24 hours.

(3) We offer you a convenient parts delivery method; just let us know the identification label of the parts you need to replace.

(4) Each product configuration document we produce is stored in our database, ensuring that users only need to access it subsequently.

Thank you for your trust and support in Shandong Yongsheng Dredging Machinery Co., Ltd. We will deliver quality brand products to you. Yongsheng Machinery wishes you great success. Should you have any questions, please feel free to contact me. We look forward to collaborating with you and welcome you to visit our factory.

If you have any questions, please contact me. We look forward to collaborating with you and welcome you to visit our factory.

Best regards in tradeGreetings!
