Full hydraulic dredging barge

(1) Cutter suction dredger, also known as a cutter suction desilting vessel, is a model designed based on the customer's site. It uses a hydraulic cutter to chop or mix soil and sandstone, integrating the sand mass with water to enhance liquid concentration. Then, a sand pump is employed to suck the mixture of mud, sand, and water into the site and discharge it.

⑵ Due to the cutter suctionDredgingThe vessels are suitable for a wide range of waterways and operational conditions, capable of completing挖掘 (excavation), 输送 (transportation), 排出 (discharge), and 处理 (processing) in a single operation. This allows for a continuous dredging process, thereby gaining widespread application. This type of vessel has seen significant development, and construction units are prioritizing the purchase and use of cutter suction dredgers.

(3) Suction dredgeDredgingThe vessel is suitable not only for operations and deployments in the B and C navigation areas of the Yangtze River system, but also for projects such as dredging, excavation, reclamation, and embankment reinforcement in other waterways, harbors, and lakes. It is also applicable to the dredging and blowing fill excavation of small and medium-sized reservoirs, river transportation embankments, agricultural water conservancy construction, and flood control and drainage.

Dredge Ship Overview

(1) This vessel is an autonomous, steel-hulled, monocoque tricoque dredger powered by a diesel engine, equipped with a绞吸式 dredging system. The bow features a bridge deck opening, and the stern is fitted with two steel piles for positioning. The vessel's forward movement and lateral positioning for dredging are achieved through the coordinated operation of the bow's side-to-side winches and the stern's positioning piles. The entire vessel is operated hydraulically.

(2) The ship's winch is driven by a low-speed, high-torque hydraulic motor through a gear box to power the winch.Screw shaft utilizedHigh-qualitySupport is provided by double-row spherical roller bearings.

(3) This vessel is equipped with an in-hull sludge pump.Impeller, pump casing, and liner are made of Cr26 material.Driven by a diesel engine connected to the ship's gear box via a high-flexible coupling, the diesel engine is equipped with Weichai power.

(4) This vessel's winch is hydraulically driven, with the side shifting winch, bridge winch, and stern positioning cylinder operating in hydraulic mode.

(5) This vessel is equipped with two diesel engines, the main engine powers the sludge slurry pump, and the auxiliary engine provides power for the entire ship's hydraulics.

(6) The entire ship is blast cleaned and painted, with night work lighting installed.

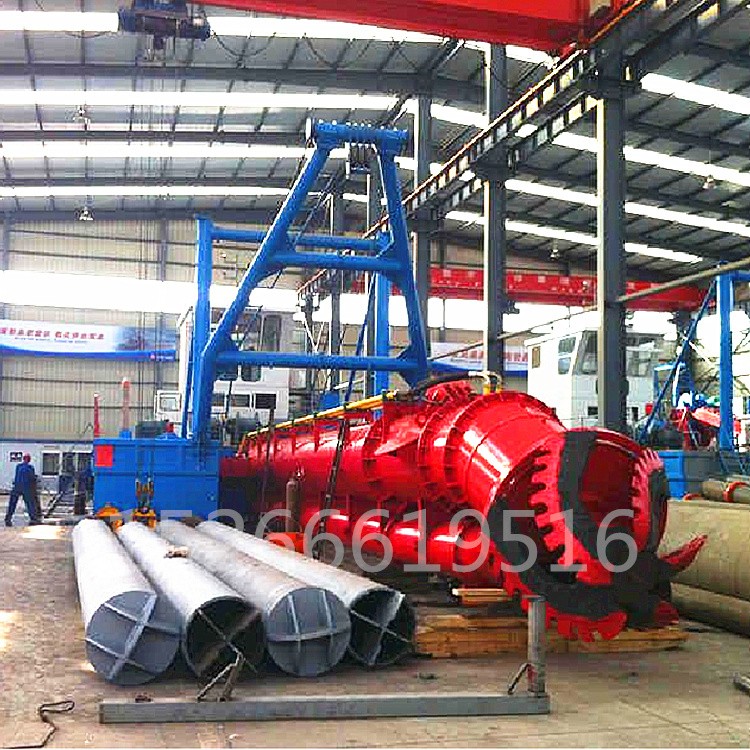

Manufacturing Scenario

HoistingScenario

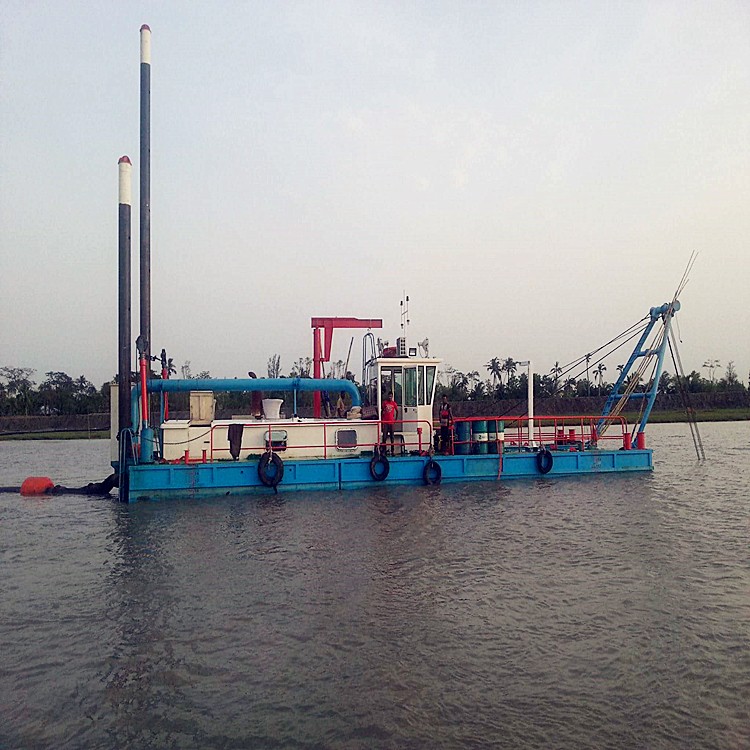

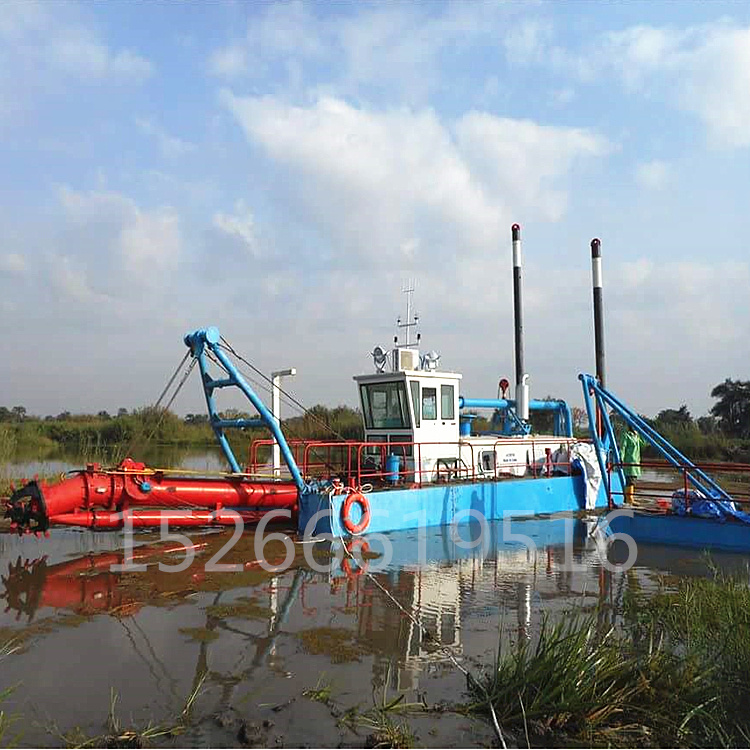

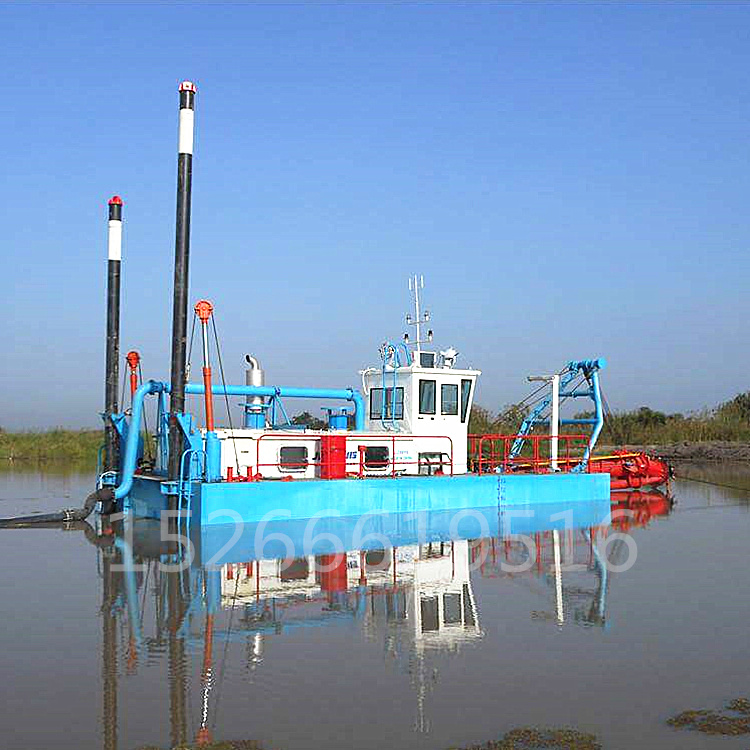

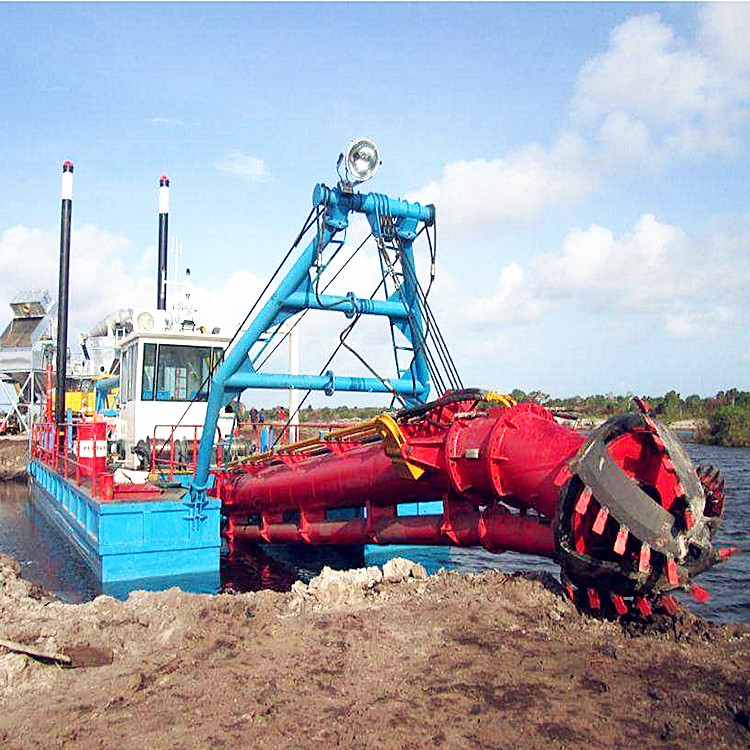

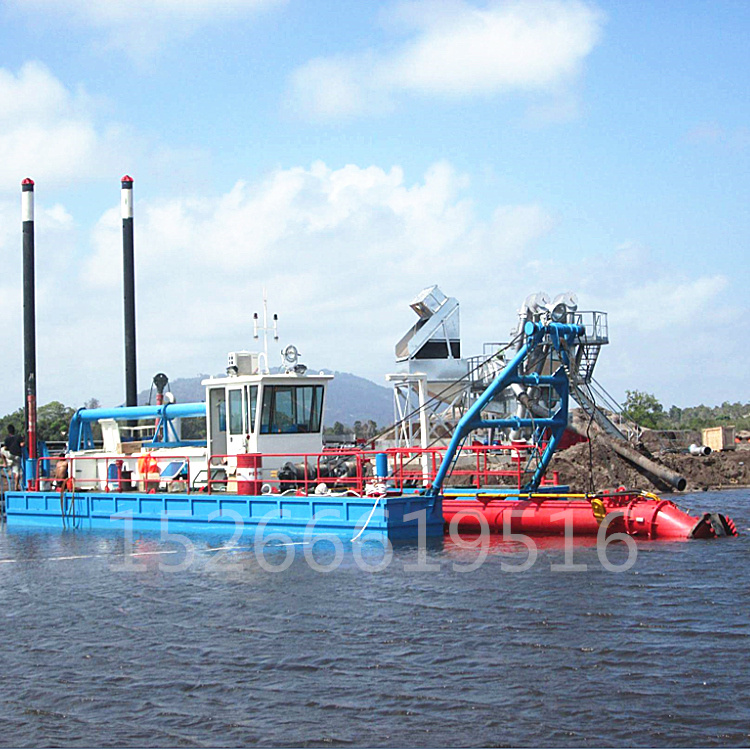

Construction Site

Configuration Parameters

After-sales service

1. Installation Adjust

After goods arrival, we will dispatch a seasoned engineer to the site for assistance with installation and guidance.

(2) Our company's installation engineers can mentor apprentice personnel during the installation and debugging of equipment.

(3) If the shipowner purchasing our factory's equipment lacks qualified crew members, we can introduce skilled ship captains for on-site interviews.

2. Maintenance and Repair

(1) Diesel engines, generators, hydraulic systems, dredge pumps, winches, electrical distribution systems, and hulls come with a 12-month warranty. Paid services and parts are available for later support.

(2) If your operators lack experience or need fine-tuning, simply report the issues to us, and we'll provide you with solutions. Every product undergoes in-house actual operation before shipment to ensure proper functioning.

3. Training

We will provide professional training and operation guides to help you solve any issues.

(2) We guarantee that the accessories are always in stock and will ship within 24 hours.

(3) We offer you a convenient parts delivery method; just let us know the label identification of the parts you need to replace.

(4) Each product configuration document we produce is archived for future reference, ensuring ease of access for users.

Thank you for your trust and support in Shandong Yongsheng Dredging Machinery Co., Ltd. We will deliver qualified brand products, and Yongsheng Machinery wishes you prosperity. Should you have any questions, please feel free to contact me. We look forward to collaborating with you and welcome you to visit our factory.
