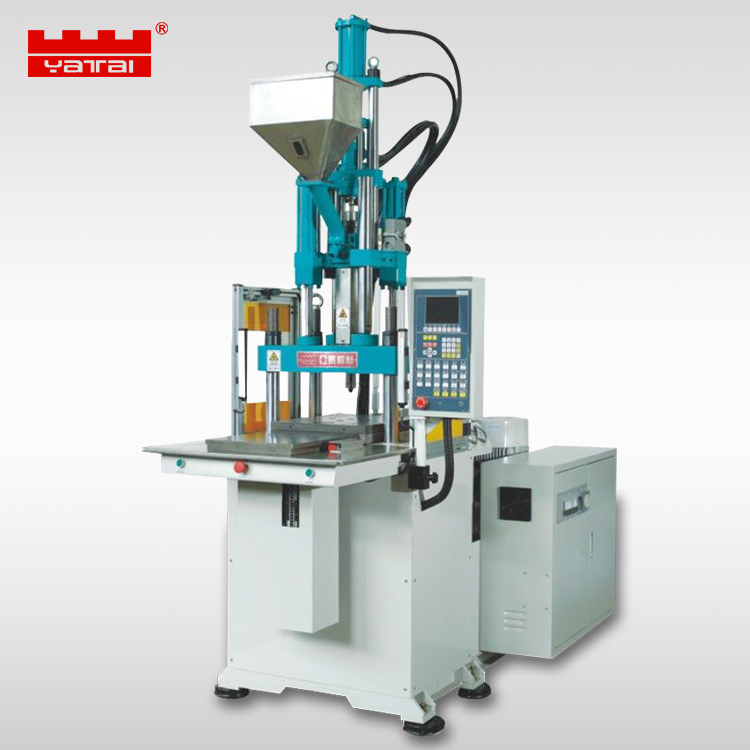

Single Sliding Plate Vertical Injection Molding Machine (35 tons)

Features:

1. This model features a straight-pressure die-casting structure with quick mold closing, slow mold opening, and slow-pressure film action, ensuring mold stability, rapid speed, and increased output.

2. The hydraulic injection structure is unique, featuring an internal pressure tracking compensation device. It boasts fast injection speeds, stable injection pressure and quality, and includes a secondary injection holding pressure design for high-quality, high-precision products.

3. 2-stage temperature control shot speed, with seamless adjustment of back pressure and screw speed, suitable for molding parts of various engineering plastics.

4. Down-type fixed, up-type movable; provides good positioning for inserted items and features a finished product ejection mechanism.

5. Nitrided steel screw, barrel, and high-torque hydraulic motor drive, multi-stage injection pressure, excellent plasticizing performance.

6. Electrical protection device, no false operation, maintenance operator.

7. The shooting seat features automatic elevation and a material cleaning device, facilitating mold and material changes.

8. Single-slide slider board, the lower mold performs the insertion work externally, offering high operability and efficiency, with the finished product ejected externally.

Technical Specifications:

Model	MODE	UNIT	YT-35T-1S
*Injection System	INJECTION UNIT
Screw Diameter	Screw Poameter	mm	26	32
Injection Pressure	Injection Pressure	Kgf/c	2071	1367
Theoretical Shot Volume	Injection Capacity	cm³	64	94
Large Extrusion Weight	Injection Weight(PS)	gr	57	87
Large Extrusion Weight	Injection Weight(PS)	oz	2	3
Injection type	Injection Rate	cm³/s	44	67
Screw rotation speed	Screw Speed	r.p.m	0~180
Screw stroke	Screw Stroke	mm	120
Nozzle Stroke	Nozzle Stroke	mm	150
Nozzles Tip Force	Nozzle Contact Force	tf	2.4
*Nut Mold System	CLAMPING UNIT
Mold Closing Method	Clamping System
Molding Force	Clamping Force	tf	35
Mold Closing Stroke	Clamping Stroke	mm	215
Large space	Max.Nould Space	mm	360
Small model thick	Min.Nould Height	mm	145
Template Size	Overall Size Of Platens(HxV)	mm	600×340
Column Internal Dimensions	Space Between Columns(HxV)	mm	450×240
Hydraulic piercing force	Hydraulc Ejector Force	tf	1.7
Punch needle travel	Ejector Stroke	mm	40
*Sliding Mode System	SLIPFORM
Sliding travel	Slidable Journey	mm	350
Sliding Mold Dimensions	Overall Size Of Slipfotm(HxV)	mm	390×390
Mold Station Count	Numbe Of Molds	sets	1
*Electrical Machinery Others	ELETRICAL EQUIPMENTGENERAL
Electric Motor	Drive Notor	kw	5.5(7.5HP)
Electric heater	Heater	kw	4.4
Mechanical dimensions	Dimenson Of Machine(LxWx)	m	1.6×1.2×3.1
Mechanical Weight	Weight Of Machine	kg	1900
Packing dimensions	Shipping Size(LxWx)	m	1.8×1.4×2.5
Packed Weight	Shipping Weight	kg	2400
Fuel Tank Capacity	Oil Tark Capacity	l	160
Cooling Water Volume	Cooling Water	l/hr	600~800

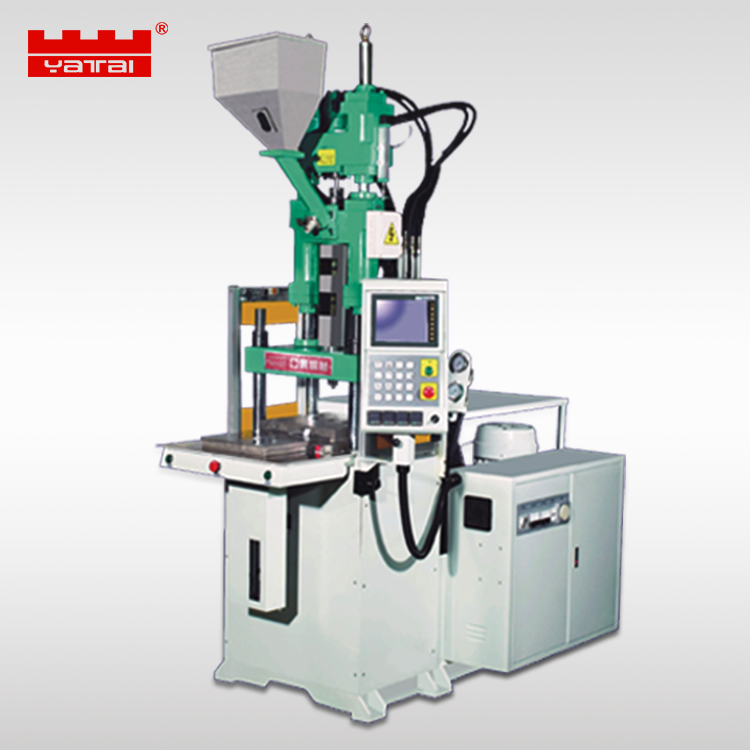

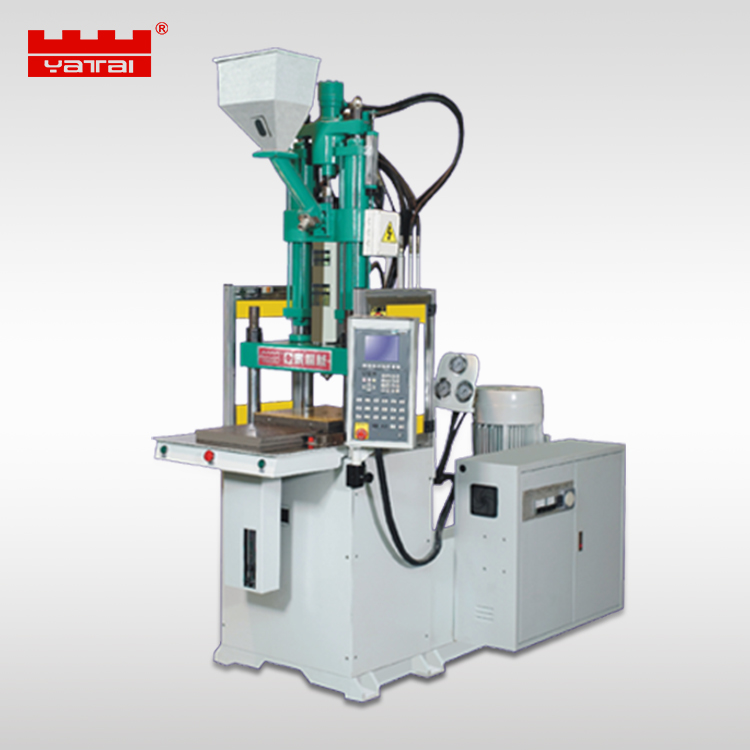

Single-Slide Vertical Injection Molding Machine55tons)

Special Dot:

1. This model features a straight-pressing die-casting structure with quick mold closing and slow, low-speed film pressing mechanisms, ensuring mold integrity and speed, thereby increasing production output.

2. The hydraulic injection structure is unique, featuring an internal pressure tracking compensation device. It boasts a fast injection rate, stable injection pressure, and quality, with a secondary injection holding pressure design for high-quality and precision products.

3. 2-stage temperature control with variable shot speed, back pressure, and screw speed adjustments, suitable for molding parts of various engineering plastics.

4. Downside fixed, upside movable; provides good positioning for inserted items and features a finished part ejection mechanism.

5. Nitrided steel screws, material tubes, high-torque hydraulic motor drive, multi-stage injection pressure, excellent plasticizing performance.

6. Electrical protection device, no erroneous operation, maintenance operator.

7. The shooting seat can be automatically raised and lowered, featuring an automatic material cleaning device for easy mold and material replacement.

8. Single-slide slider, the lower mold performs the insertion work on the outside, enhancing operation height and efficiency, with the finished product ejection completed externally.

Technical Specifications:

Model	MODE	UNIT	YT-55T-1S
*Injection System	INJECTION UNIT
Screw diameter	Screw Poameter	mm	30	40
Feed Pressure	Injection Pressure	Kgf/c	2057	1395
Theoretical Shot Volume	Injection Capacity	cm³	92	176
Large injection weight	Injection Weight(PS)	gr	83	158
Large injection weight	Injection Weight(PS)	oz	2.9	5.5
Injection type	Injection Rate	cm³/s	55	94
Screw rotation count	Screw Speed	r.p.m	0~180
Screw Travel	Screw Stroke	mm	130
Nozzle stroke	Nozzle Stroke	mm	200
Nozzle thrust	Nozzle Contact Force	tf	3.5
*Bolt mold system	CLAMPING UNIT
Mold Closing Method	Clamping System
Clamping Force	Clamping Force	tf	55
Mold Closing Stroke	Clamping Stroke	mm	200
Large space	Max.Nould Space	mm	380
Small model thick	Min.Nould Height	mm	180
Template Size	Overall Size Of Platens(HxV)	mm	650×400
Bushing inner diameter	Space Between Columns(HxV)	mm	490×240
Hydraulic piercing force	Hydraulc Ejector Force	tf	1.7
Spring needle stroke	Ejector Stroke	mm	40
*Sliding System	SLIPFORM
Sliding stroke	Slidable Journey	mm	400
Sliding Mold Size	Overall Size Of Slipfotm(HxV)	mm	460×460
Mold Station Count	Numbe Of Molds	sets	1
*Electrical machinery others	ELETRICAL EQUIPMENTGENERAL
Electric Motor	Drive Notor	kw	7.5(10HP)
Electric heating	Heater	kw	4.9
Mechanical dimensions	Dimenson Of Machine(LxWx)	m	1.85×1.3×3.2
Mechanical weight	Weight Of Machine	kg	2900
Packing dimensions	Shipping Size(LxWx)	m	2.05×1.5×2.5
Packing Weight	Shipping Weight	kg	3500
Fuel Tank Capacity	Oil Tark Capacity	l	220
Cooling Water Volume	Cooling Water	l/hr	600~800

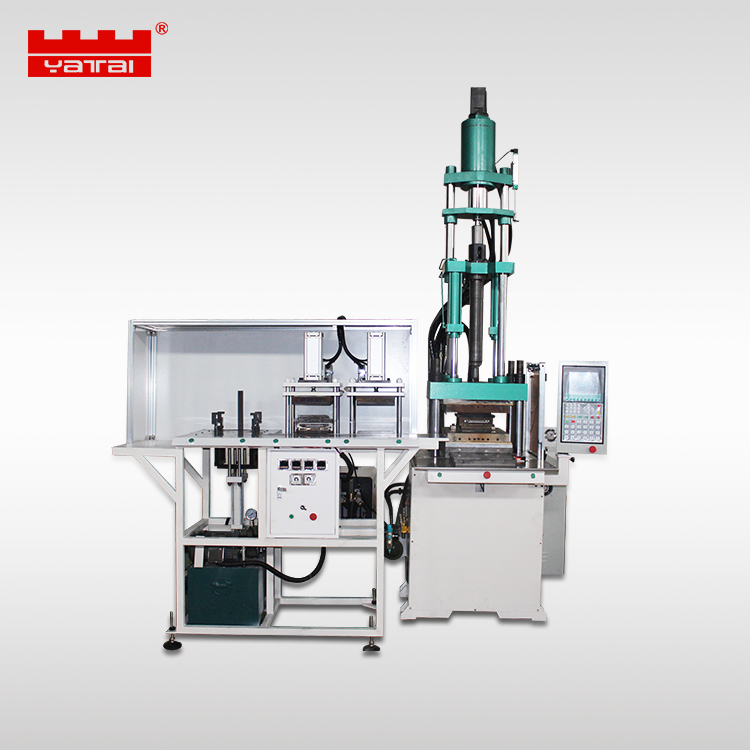

Single-Slide Vertical Injection Molding Machine (160 tons)

Features:

1. This model features a straight-press die-casting structure with rapid clamping, slow mold closing, and low-speed film pressing mechanism, ensuring mold integrity while enhancing speed and increasing production output.

2. The hydraulic injection structure is unique, featuring an internal pressure tracking compensation device. It boasts a rapid injection rate, stable injection pressure, and quality, along with a secondary injection holding pressure design, ensuring high-quality and precision products.

3. 2-stage temperature control shot speed, back pressure, and screw speed achieve seamless adjustment, suitable for molding parts of various engineering plastics.

4. Downside fixed, upside movable design provides excellent positioning for inserted items and features a finished product ejection device.

5. Nitrided steel screw, material tube, high-torque hydraulic motor drive, multi-stage injection pressure, excellent plasticizing performance.

6. Electrical protection device, malfunction, maintenance operator.

7. The shooting seat can automatically rise and fall, featuring an automatic material cleaning device for easy mold and raw material replacement.

Technical Specifications:

	ModelModel	Unit	YT-160T-C
Injection System	Screw diameterScrew Diameter	mm	50	55
	Injection PressureInjection pressure	kg/cm²	1803	1490
	Theoretical Shot CapacityTheorfical Shot Volume	cm³	393	475
	Molding volume(PS)Max.shot Weight(PS)	g/0z	365/12.8	442/15.6
	Injection RateInjection Rate	cm²/see	220	260
	Screw StrokeScrew stroke	mm	160
	Screw speedScrew Speed Max	rpm	0-300
	Nozzle Contact ForceNonzzle Contactforce	tf	7.5
	Nozzle strokeNonzzle Retraction Stroke	mm	250
	Temperature control segmentsNumber of temperature Contorl		4+1
Molding System	Locking forceClampieng Force	tf	160
	Template SizePlateu Size	mm	1170*730
	Mold column spacingDisitance Betqeen Tie Bare	mm	860*420
	Small and thickMin.Mold Height	mm	300/400
	Mold Opening JourneyOprening Stroke	mm	400
	Large mold pitchMax.Mold Height	mm	600/700
	Ejection ForceEjector Stroke	tf	4.6
	Top trip itineraryEjector Strke	mn	95
Hydraulic Power System	High hydraulic pressureMax.Hydaulic Pressure	kg/cm²	140
	Pump impeller output quantityPump Output	l/min	105
	Actuating Oil VolumeOil Resservoir Capacity	l	230
	Cooling water consumptionCooling Water Cousumption	l	1200-1500
	Motor PowerPump Motor Power	kw	22.5(30HP)
	Electrical heating capacityBorrl Heating Power	kw	11.5
	Total Electricity ConsumptionTotal Weight	kw	34
Others	Total Machine WeightMachine Weight	kg	7500
	Machine dimensionsMachine Dimensious(LsWsH)	m	3.22.05.0
	Packing WeightShipping Weight	kg	8300
	Packing dimensionsShipping Dimensious(LsWsH)	m	2.52.44.0
