Fully Automatic Double Head Soldering Machine

价格Negotiable

最小起订0 Piece库存0 Piece

Business Card

Your company's名称Tianjin Yatai拓健 Plastic Machinery Equipment Co., Ltd.
联系人廖先生（先生）
Your company'sPhone18622972888
Mobile号码18622972888
Company AddressTianjin Beichen District Jingbao Industrial Park Hongda Garden F Building, 101

YT-7872

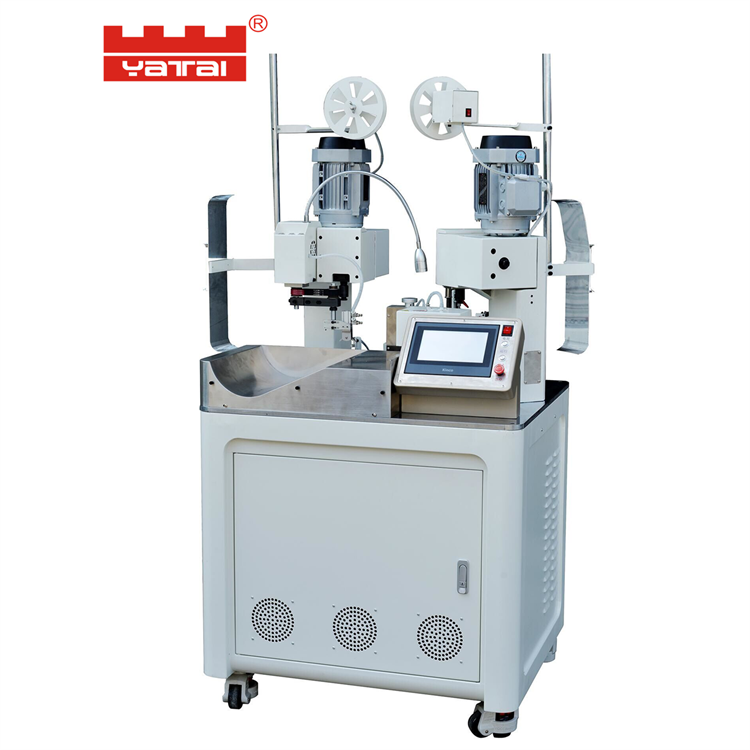

Fully Automatic Terminal Crimper (Dual End Crimper)

Features

1. Delicate and compact design, occupying minimal space.

2. The KINCO touch screen operation menu is easy to learn and understand.

3. Quick changeover of processes and materials.

4. Select servo/stepper motors, high precision.

5. Easy maintenance.

6. High cost-performance ratio.

7. Full digital tuning.

Technical Specifications:

Model:	YT-7872
Power Supply:	AC 220V/50/60 Hz Single Phase
Function:	Wire cutting, single-end stripping, double-end stripping, single-end pressing, double-end pressing
Production Capacity:	4000Stripper hour (length)1Within 00mm
Scope of Processable Wires:	AWG#28-AWG#10 (wires with cross-sectional area below 4 sq. mm)
Cut Length:	45mm----9999mm
Cutting Accuracy:	*Variation Range:1mm+ cut length 0.2 or less**
剥皮 Length:	1.5mm-----10mm
Compression capacity:	2.0T Terminal Machine
Air Pressure:	46 kgf (requires clean, dry air)
Testing Equipment:	Fiber-optic sensingCable availabilityInspectionTerminalPressingYes/NoInspectionLine blockage detection, Low pressure detection
Body dimensions:	700W X 800L X 1500H(mm)
Airframe Weight:	Approx.358kg
