Air Peel Machine

价      格Negotiable

最小起订0 Piece库存0 Piece

Location
Tianjin
有效期至
长期有效
最后更新
2022-05-16 16:59
View Count
13
咨询Floor Price 查看You can contact your customer with the following information

Business Card

  • Your company's名称Tianjin Yatai拓健 Plastic Machinery Equipment Co., Ltd.
  • 联 系 人廖先生 （先生）
  • Your company'sPhone18622972888
  • Mobile号码18622972888
  • Company AddressTianjin Beichen District Jingbao Industrial Park Hongda Garden F Building, 101
收藏商品 分享 扫一扫用手机扫描二维码直达商品手机版

买家正在看

  • Wavy Pipe Cutting Machine

    Negotiable

  • Vertical Injection Molding Machine

    Negotiable

  • Terminal machine

    Negotiable

  • 356 Automatic Double-End Crimping Machine

    Negotiable

猜你喜欢
Servo casting iron body terminal Servo casting iron body terminal Negotiable Fully Automatic Double-Sided Sold Fully Automatic Double-Sided Sold Negotiable Six-Side Crimping Mold Six-Side Crimping Mold Negotiable Cast Iron Silent Terminal Machine Cast Iron Silent Terminal Machine Negotiable Stripper Machine Stripper Machine Negotiable Servo Silent Terminal Machine Servo Silent Terminal Machine Negotiable Oversized Head Cast Iron Silent T Oversized Head Cast Iron Silent T Negotiable Miniature machine series Miniature machine series Negotiable Coaxial Cable剥皮机 YT-5806 Coaxial Cable剥皮机 YT-5806 Negotiable 8-Wheel Coarse Thread Cutting Mac 8-Wheel Coarse Thread Cutting Mac Negotiable
Product Details

Electrical PeelersYT-305\310\315

Type    Number

YT-305

YT-310

YT315

Please provide the Chinese content to be translated.    Cheng

50mm

100mm

150mm

Stripping capability

Max.5mm

Max.15mm

Max.20mm

Electricity    Pressure

AC220 50/60Hz

AC220 50/60Hz

AC220 50/60Hz

Air    Pressure

3-7Kg/cm²

3-7Kg/cm²

3-7Kg/cm²

Out    Power

31-73Kg

49-115Kg

84-196Kg

Gas    Vessel

Φ40

Φ50

Φ60

Heavier    Quantity

22Kg

25Kg

31Kg

Mechanical dimensions

240×280×210mm

350×500×280mm

350×620×370mm

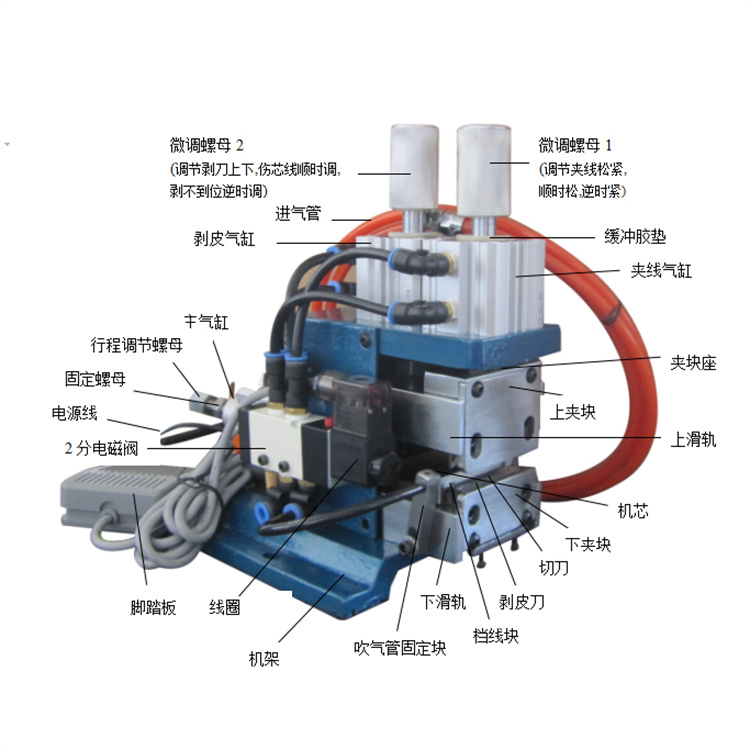

Rucksack design, ergonomic, quick, and stable. Suitable for stripping and peeling of cables like power wire and jacketed wire.


I.Technical Specifications:

1Model:3FAir剥机

2Pressure Application:4.5-7kg/C㎡

3Power Supply:220V50Hz

4Weight:10Kg

5Dimensions:260x150x270mm

6剥皮长度：Skinning Length25mm  Double-blade cutting and peeling1.5-5.0mm
