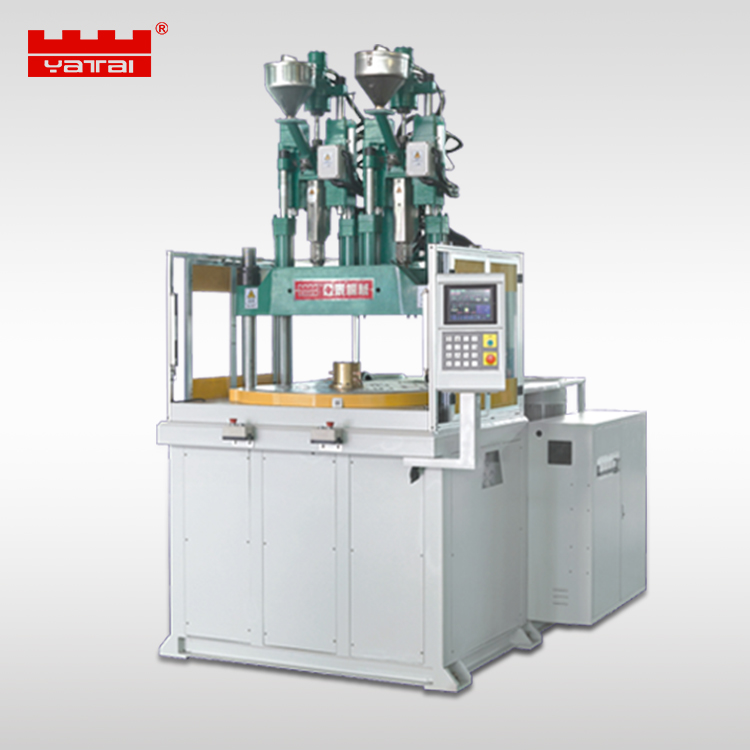

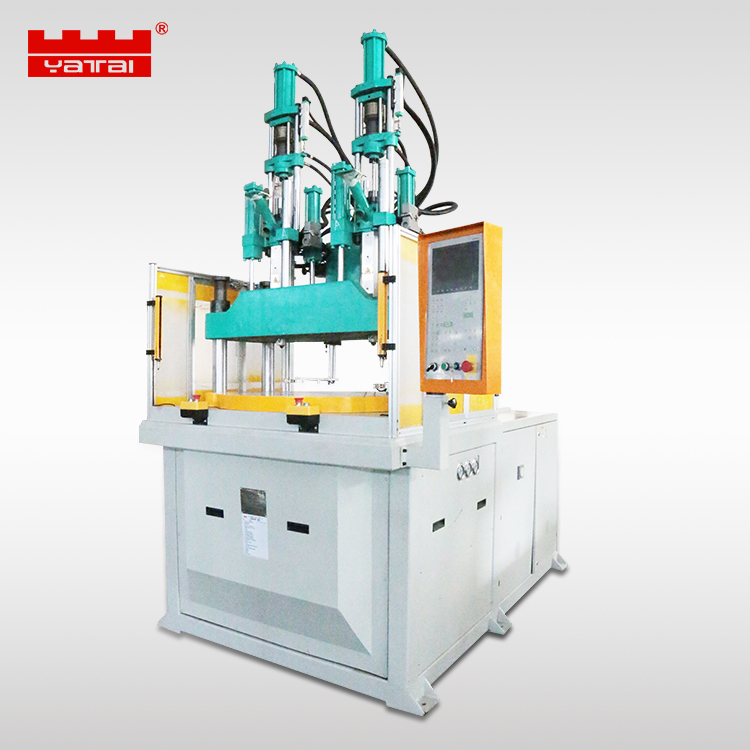

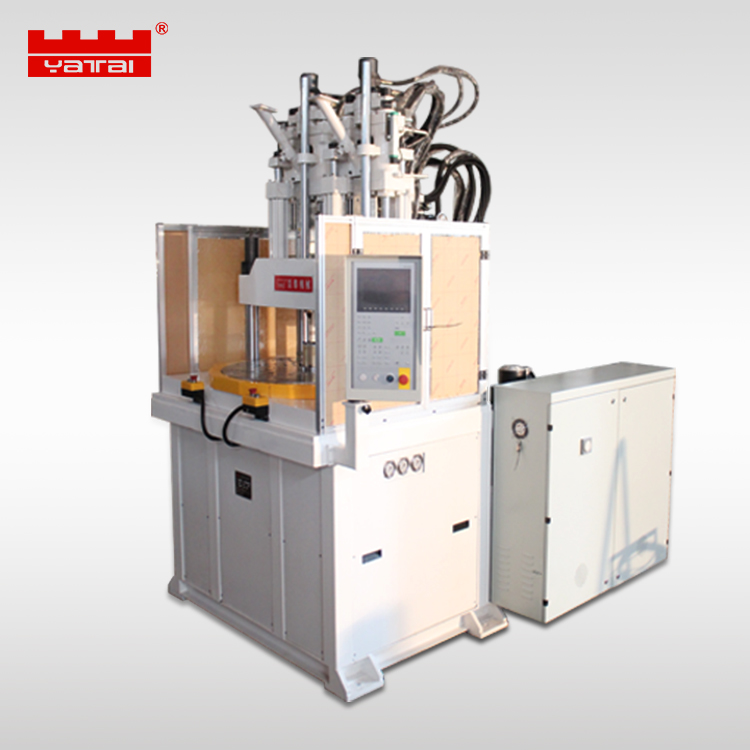

Features:
2-column screw injection unit.
2. 4-segment humidity control, variable shooting speed, back pressure, and screw speed with stepless adjustment, suitable for molding parts of various engineering plastics.
3. Bottom mold fixed and top mold movable, providing excellent positioning for inserted items and featuring an ejection device for finished products.
4. Low-pressure mold closing device protects the mold.
5. The material tube is adjustable, making it easy to clean and easier to secure the mold.
6. Available for installation of single-mode or dual-mode alternating sleds and disc assemblies to enhance operability and efficiency.
Technical Specifications:
ModelModel | Unit | YT-V120T-2R | |||
Injection System | Bolt diameterScrew Diameter | mm | 28 | 32 | 36 |
Theoretical Shot CapacityTheorfical Shot Volume | cm³ | 84 | 110 | 139 | |
Molding Quantity(PS)Max.shot Weight(PS) | g/0z | 78/2.7 | 102/3.6 | 129/4.5 | |
Injection RateInjection Rate | cm²/see | 55 | 72 | 105 | |
Injection PressureInjection pressure | kgf/cm² | 2530 | 1914 | 1512 | |
Screw speedScrew Speed Max | rpm | 0-300 | |||
Electric heating powerElextne Power | kw | 5.4 | |||
Motor PowerHeater Power | kw（bp） | 7.5（10HP） | |||
Select injection systemOption Injection System | series no | Ⅰ Ⅱ | |||
Mold Closing System | Mold closing forceClampieng Force | tf | 120 | ||
Mold Development ProcessOprening Stroke | mm | 280 | |||
Small model, thickMin.Mold Height | mm | 250/350 | |||
Large pitchMax.Mold Height | mm | 530/630 | |||
Template SizePlateu Size | mm | - | |||
Turntable DiameterDiameter Of Rctary Tabel | mm | 980 | |||
Mold column spacingDisitance Betqeen Tie Bare | mm | ||||
Top Travel ItineraryEjector Strke | mn | 60 | |||
Ejection ForceEjector Stroke | tf | 1.75 | |||
Other | High hydraulic pressureMax.Hydaulic Pressure | Kgf/cm² | 140 | ||
Actuating Oil VolumeOil Resservoir Capacity | l | 710 | |||
Motor PowerPump Motor Power | kw | 15（20HP） | |||
Machine dimensionsMachine Dimensions | mm | 2320*2125*3496 | |||
Total Machine WeightMachine Weight | kg | 5800 | |||
