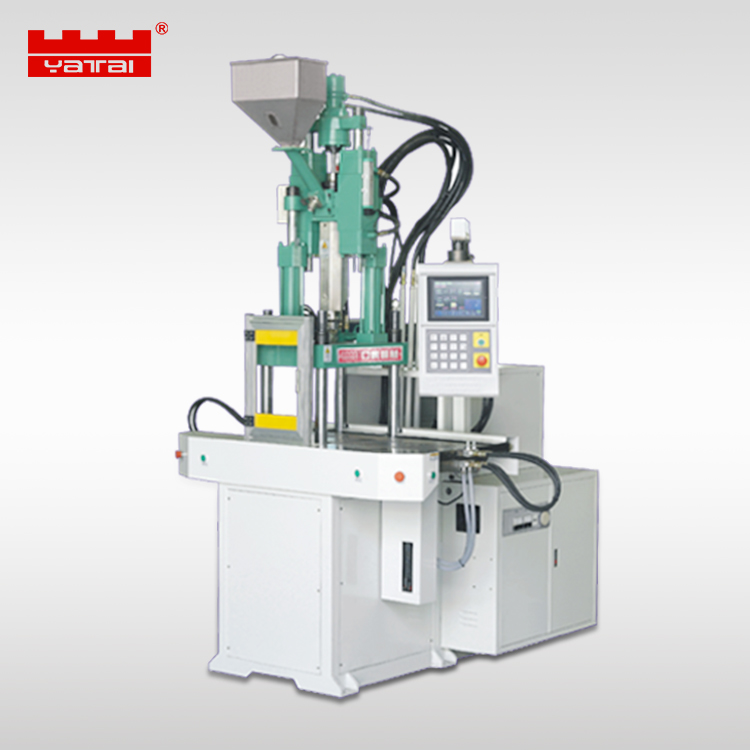

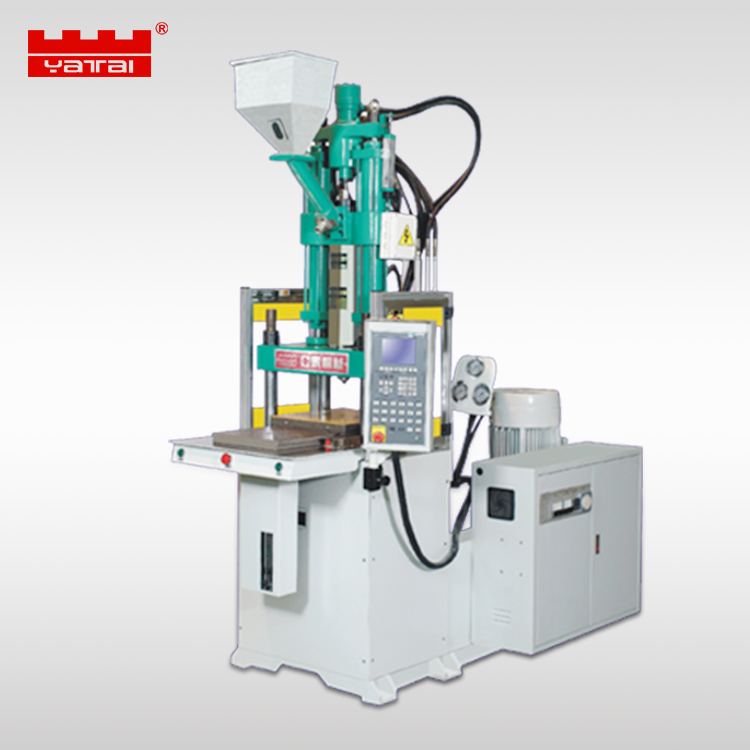

Features:
1. Vertical mold opening, vertical injection molding, suitable for insert molding.
2. Quick mold closing, low-pressure locking, automatic mold opening in case of anomalies, unique design.
3. Automatic fault display, easy and convenient for maintenance.
4. Electric and hydraulic components, quiet and durable.
5. Multi-stage temperature control, multi-stage injection pressure, injection speed, and back pressure non-adjustable, suitable for plastic part molding.

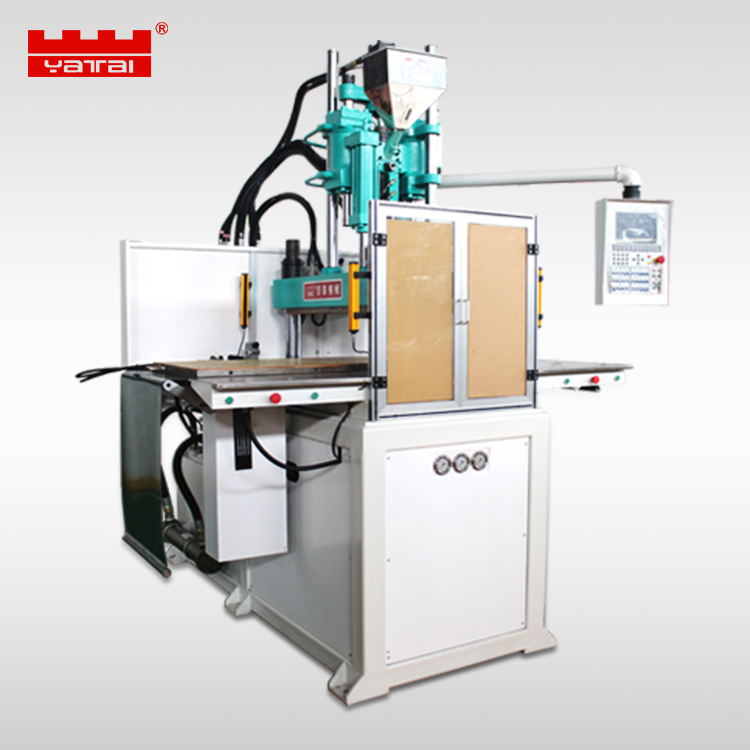

6. This machine is equipped with a dual-mode alternating slider, one-piece molding, and one-piece insertion work, enhancing operational and work efficiency (dual-mode independent top pin).
Technical Specifications:
Model | MODE | UNIT | YT-55T-2S | |
*Injection System | INJECTION UNIT | |||
Bolt Diameter | Screw Poameter | mm | 30 | 38 |
Injection Pressure | Injection Pressure | Kgf/c | 2057 | 1282 |
Theoretical Shot Volume | Injection Capacity | cm³ | 92 | 147 |
Large Injection Weight | Injection Weight(PS) | gr | 83 | 133 |
oz | 2.9 | 4.7 | ||
Injection type | Injection Rate | cm³/s | 55 | 89 |
Screw rotation count | Screw Speed | r.p.m | 0~180 | |
Screw Stroke | Screw Stroke | mm | 130 | |
Nozzle Stroke | Nozzle Stroke | mm | 200 | |
Nozzles Tip Force | Nozzle Contact Force | tf | 3.5 | |
*Bolt Mold System | CLAMPING UNIT | |||
Molding Method | Clamping System | |||
Clamping Force | Clamping Force | tf | 55 | |
Mold Closing Travel | Clamping Stroke | mm | 200 | |
Large space | Max.Nould Space | mm | 380 | |
Mini model thick | Min.Nould Height | mm | 180 | |
Template size | Overall Size Of Platens(HxV) | mm | 650×400 | |
Bushing inner diameter | Space Between Columns(HxV) | mm | 490×240 | |
Hydraulic Piercing Force | Hydraulc Ejector Force | tf | 1.7 | |
Pierce needle stroke | Ejector Stroke | mm | 100 | |
*Sliding Mode System | SLIPFORM | |||
Sliding Stroke | Slidable Journey | mm | 430 | |
Sliding Mold Dimensions | Overall Size Of Slipfotm(HxV) | mm | 900×400 | |
Mold Station Count | Numbe Of Molds | sets | 2 | |
*Electrical machinery, others | ELETRICAL EQUIPMENTGENERAL | |||
Electric Motor | Drive Notor | kw | 7.5（10HP） | |
Electric heating | Heater | kw | 4.9 | |
Mechanical dimensions | Dimenson Of Machine(LxWx) | m | 1.85×1.3×3.2 | |
Mechanical weight | Weight Of Machine | kg | 2900 | |
Packing Dimensions | Shipping Size(LxWx) | m | 2.05×1.5×2.5 | |
Packed Weight | Shipping Weight | kg | 3500 | |
Fuel Tank Capacity | Oil Tark Capacity | l | 220 | |
Cooling Water Volume | Cooling Water | l/hr | 600~800 | |
