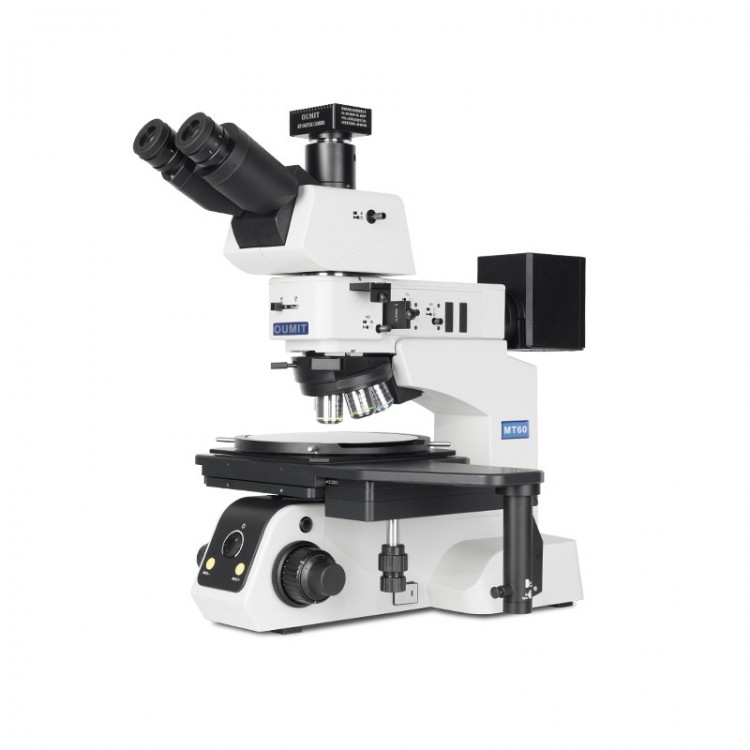

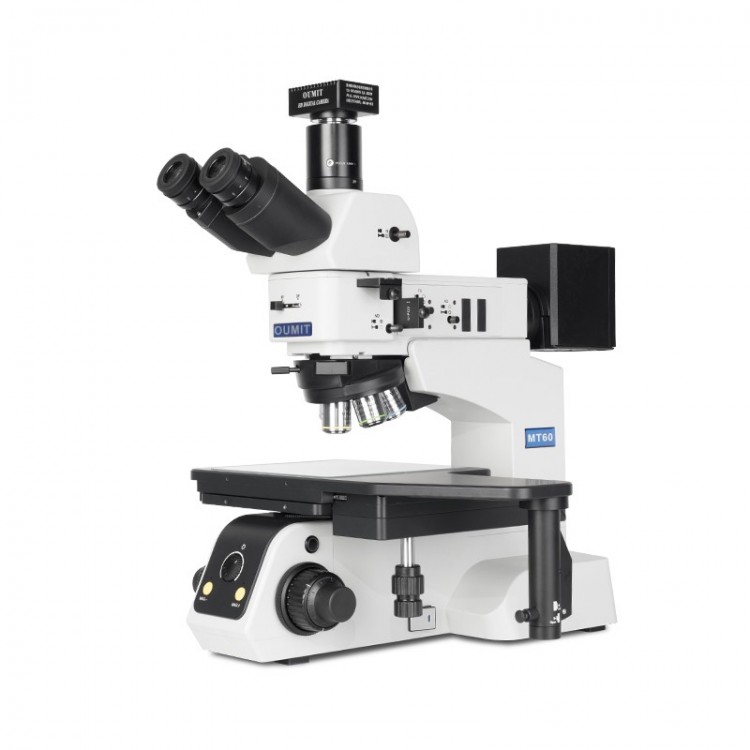

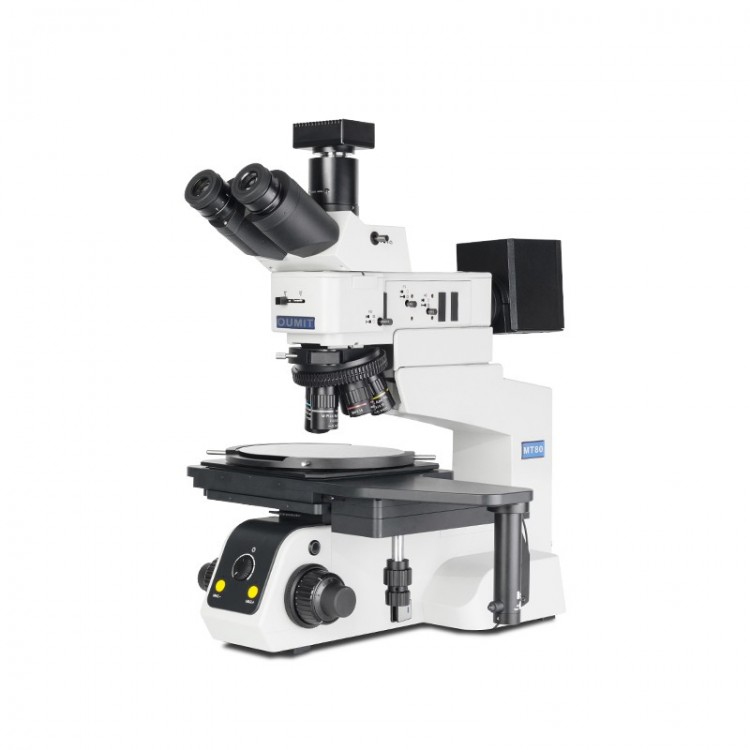

MT60 Series Semiconductor Inspection Microscope
Type Number | MT60-BD-1 |
Optical System | Optical System with Infinite Color Difference Correction |
Optical Magnification Ratio | 50Multiple-500Multiple(Optional1000Multiple) |
Digital Magnification Ratio | 150Multiple-1500Multiple21.54-inch monitor) paired100Magnification up to3000Multiple |
Industrial Camera | 1200Ten1/1.81-inch Color Sony Industrial Chip (optional)630Wanhe200020 Megapixels |
Observation tube | Inverted image, infinite distance hinge elbow observation tube, pupillary distance adjustment:50mm~76mmTwo-stage spectral ratio binoculars:Three-way=100：0 |
Eyepiece | High Eye Point Wide Field Binocular EyepieceSWH10X-H/23mmAdjustable viewing angle |
Objective lens | Infinite working distance, dark and bright field semi-apochromatic metallographic objective 5X NA0.15 WD15 |
Infinite working distance, bright/dark field semi-apochromatic metallurgical objective 10X NA0.30 WD8.4 | |
Infinite working distance, bright/dark field semi-apochromatic metallurgical objective 20X NA0.40 WD10.3 | |
Infinity-corrected, long working distance, achromatic objective for metallographic microscopy 50X NA0.75 WD3.0 | |
Objective lens converter | Light and dark scenes5Hole Converter (with)DICSlot. |
Rack | Transreflective mounting bracket, Low-position coarse fine coaxial focusing mechanism. Coarse adjustment travel.35mm,Fine-tuning precision0.001mmWith adjustable tension device to prevent sliding and a random upper limit device included.100-240VWide voltage system with digital dimming, featuring light intensity setting and reset function |
Loading Platform | 6Inches platform, platform area 450*240mmMobile itinerary:158mmX158mmMechanical platformX、YDirectional coaxial adjustment; includes rapid movement device; |
Converging lens | Tilting achromatic condenser lensN.A.0.9） |
Reflective lighting fixture | Dark and bright field reflector, with variable aperture diaphragm, field stop, center adjustable, with filter slot, and polarizing prism/Prism slot |
Lighting Room | 5WAdjustableLEDLuminaire room, universal transmittance and reflection, reservation center |
Camera Interface | Photography & Video Accessories:0.65X，CAdjustable focus type interface (optional)0.5X/1X） |
Polarized Components | Polarizing Beam Splitter Plate360Rotary misalignment mirror plate |
Computer | Branded Computers and Monitors |
Measurement Software | Measurement SoftwareOMT-1.5DPhotograph, record video, measure, scan and upload, real-time image stitching, depth of field merging |
Ruler | High-precision micrometer caliper, graduation value0.01mm |
Type Number | MT60-BD-2 |
Optical System | Infinite color difference correction optical system |
Optical Magnification Ratio | 50Multiple-500Multiple(Optional1000Multiple) |
Digital Magnification Ratio | 150Multiple-1500Multiple21.54-inch display) paired100Magnification up to x3000Multiple |
Industrial Camera | 1200Ten1/1.81/2 inch color Sony industrial chip (optional)630Wanhe200010 megapixels |
Observation Tube | Positive, Inifinite Distance Swing Arm Three-way Scope, Pupillary Distance Adjustment:50mm~76mmTwo-stage spectral ratio binoculars:Three-way=100：0 |
Eyepiece | High eye point wide field eyepieceSWH10X-H/23mmAdjustable vision range |
Objective lens | Infinite working distance achromatic dark and bright field half-reduction chromatic aberration metallurgical objective 5X NA0.15 WD15 |
Infinite working distance, dark and bright field semi-apochromatic metallurgical objective 10X NA0.30 WD8.4 | |
Infinity-corrected, long working distance, achromatic objective for metallographic microscopy 20X NA0.40 WD10.3 | |
Infinity-corrected, long working distance, achromatic objective with dark field and bright field capabilities 50X NA0.75 WD3.0 | |
Objective Converter | Light and dark scenes5Hole Converter (with)DICSlot. |
Rack | Transreflective Mount, Low-hand position coarse-fine coaxial focusing mechanism. Coarse adjustment stroke.35mm,Fine-tuning precision0.001mmWith anti-slip adjustable tension device and random upper limit device. Built-in100-240VWide voltage system with digital dimming, featuring light intensity setting and reset function |
Loading Platform | 6Inch platform, platform area 450*240mmMobile Itinerary:158mmX158mmMechanical platformX、YDirectional coaxial adjustment; includes rapid movement mechanism; |
Converging lens | Tilt-out Color-Corrected Concentric LensN.A.0.9） |
Reflective illuminator | Dimming and brightening field reflector, with variable aperture diaphragm, field stop, center adjustable, with filter slot, with polarizing beam splitter/Prism slot |
Light Room | 5WAdjustableLEDLuminaire room, transmissive/reflective universal, reservation center |
Camera Interface | Photography and Video Accessories:0.65X，CType interface, adjustable focus (optional)0.5X/1X） |
Polarized Components | Polarizing Beam Splitter Plate360Rotary Offset Prisms Insert Plate |
Computer | Branded computers and monitors |
Measurement Software | Measurement SoftwareOMT-1.5DTake photos, record videos, measure, scan and upload, real-time image stitching, depth of field blending |
Ruler | High-precision micrometer, graduation value0.01mm |
Type Number | MT60-BD-3 |
Optical System | Optical System with Infinite Color Difference Calibration |
Optical Magnification Ratio | 50Multiple-500Multiple(Optional1000Multiple) |
Digital Magnification Ratio | 150Multiple-1500Multiple21.54-inch monitor) paired with100Magnification up to3000Multiple |
Industrial Camera | 1200Ten1/1.81/2 inch color Sony industrial chip (optional)630Wanhe200020 Megapixels |
Observation Tube | Adjustable tilt, forward-facing, infinite focal range hinge elbow observation tube, pupillary distance adjustment:50mm~76mmTwo-level splitting ratio binoculars:Three-way=100：0 |
Eye Lens | High eye point wide field eyepiecesSWH10X-H/23mmAdjustable vision range |
Objective lens | Infinity long working distance, dark field, semi-apochromatic, gold phase objective lens 5X NA0.15 WD15 |
Infinite working distance, bright/dark field, semi-apochromatic, gold phase objective microscope 10X NA0.30 WD8.4 | |
Infinity-corrected, long working distance, achromatic bright/dark field semi-apochromatic metallographic objective 20X NA0.40 WD10.3 | |
Infinity Long Working Distance Bright/Dark Field Semi-Aplanatic Chromatic Aberration Free Metallurgical Objective 50X NA0.75 WD3.0 | |
Objective Converter | Keylight and Filllight5Hole Converter (with)DICSlot. |
Rack | Optical transreflective mounting bracket, Low-position coarse fine coaxial focusing mechanism. Coarse adjustment travel35mm,Fine-tuning precision0.001mmWith anti-slip adjustable tension device and random upper limit device. Built-in100-240VWide voltage system with digital dimming, featuring light intensity setting and reset function |
Loading Platform | 6Inch platform, platform area 450*240mmTravel Itinerary:158mmX158mmMechanical platformX、YAxial alignment adjustment; includes rapid movement mechanism |
Converging lens | Rack-out Color Compensation Gather LensN.A.0.9） |
Reflective light fixture | Dimming and brightening field reflector, with variable aperture diaphragm, field stop, central adjustable, with filter slot, and polarizing prism/Prism slot |
Lamp Room | 5WAdjustableLEDLuminaire room, transmittable and reflective, pre-booking center |
Camera Interface | Photography & Video Accessories:0.65X，CAdjustable focus type interface (optional)0.5X/1X） |
Polarized Components | Polarizing Beam Splitter Insert360Rotary Bias Plate |
Computer | Brand computers and monitors |
Measurement Software | Measurement SoftwareOMT-1.5DTake photos, record videos, measure, scan and upload, real-time image stitching, depth of field merging |
Ruler | High-precision micrometer caliper, graduation value0.01mm |
Type Number | MT60-BT |
Optical System | Infinite Color Difference Correction Optical System |
Optical Magnification Ratio | 50X times-500Multiple(Optional1000Multiple) |
Digital Magnification Ratio | 150Multiple-1500Please provide the Chinese content to be translated into American English.21.57-inch display) paired100Magnification up to3000X2 |
Industrial Camera | 1200Ten1/1.81" Color Sony Industrial Chip (optional)630Wanhe200020 Megapixels |
Observation tube | Inverted image, infinite distance hinge elbow observation tube, interpupillary distance adjustment:50mm~76mmTwo-wavelength split ratio binoculars:Three-color=100：0 |
Eyepiece | High eye point wide field eyepieceSWH10X-H/23mmAdjustable visibility |
Objective lens | Infinity-corrected, long working distance, semi-apochromatic, bright-field metallurgical objective 5X NA0.15 WD14.8 |
Infinite working distance, bright field, semi-apochromatic, metallographic objective lens 10X NA0.30 WD8.5 | |
Infinity-corrected bright-field semi-apochromatic metallographic objective 20X NA0.40 WD11.9 | |
Infinite working distance, bright field, semi-apochromatic, metallographic objective lens 50X NA0.75 WD3.0 | |
Objective lens converter | Open Field5Hole converter (with)DICSocket |
Rack
| Reflective mounting bracket, Low-hand position coarse-fine coaxial focusing mechanism. Coarse adjustment stroke30mm,Fine-tuning precision0.001mmWith anti-slip adjustable tension device and a random upper limit device. Built-in100-240VWide voltage system, featuring digital dimming with light intensity set and reset functions |
Loading Platform | 6Inches platform, platform area 450*240mmTravel Itinerary:158mmX158mmMechanical PlatformX、YDirectional coaxial adjustment; includes rapid movement device; |
Converging lens | Shaker-type achromatic condenser lensN.A.0.9） |
Reflective illuminator | Spotlight reflector with variable aperture diaphragm, field stop, center adjustable, with filter slot, and polarizing prism/Prism slot |
Lighting Room | 5WAdjustableLEDLight room, transmittable and reflective, pre-order center |
Camera Interface | Photography & Video Accessories:0.65X，CAdjustable focus, type interface0.5X/1X） |
Polarized Components | Polarizing Beam Splitter Plate360Rotary-type Deviation Mirror Insert Plate |
Computer | Branded Computers and Monitors |
Measurement Software | Measurement SoftwareOMT-1.5D， |
Ruler | High-precision micrometer, graduation value0.01mm |
