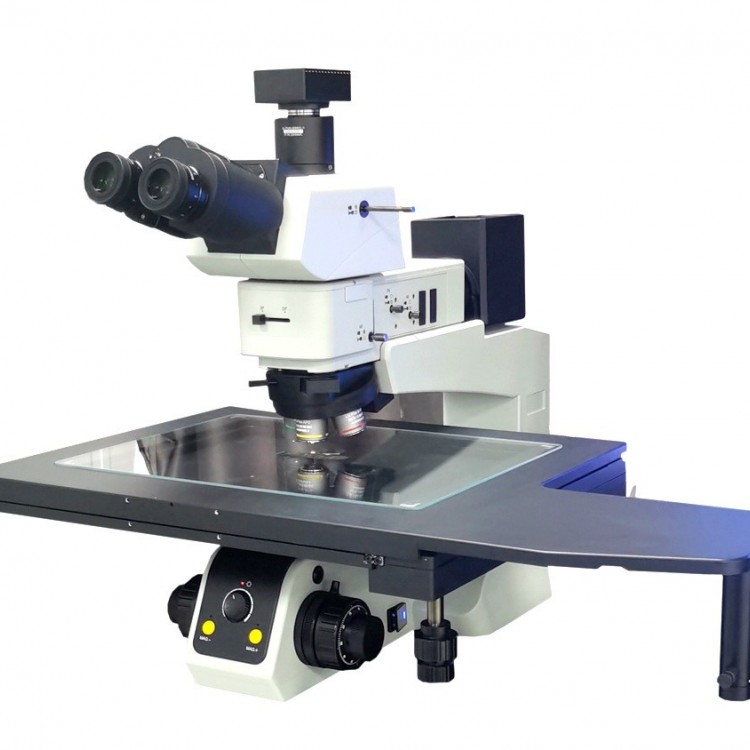

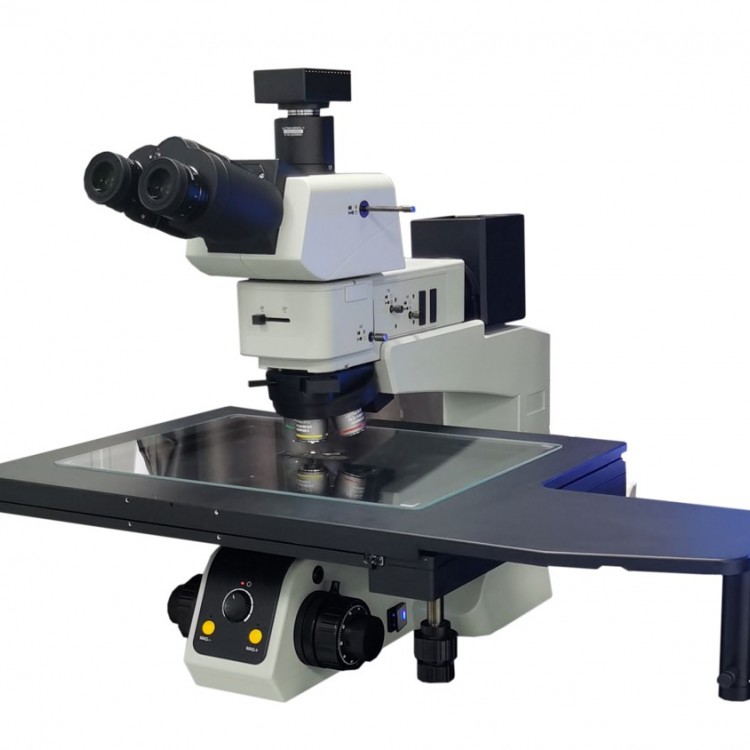

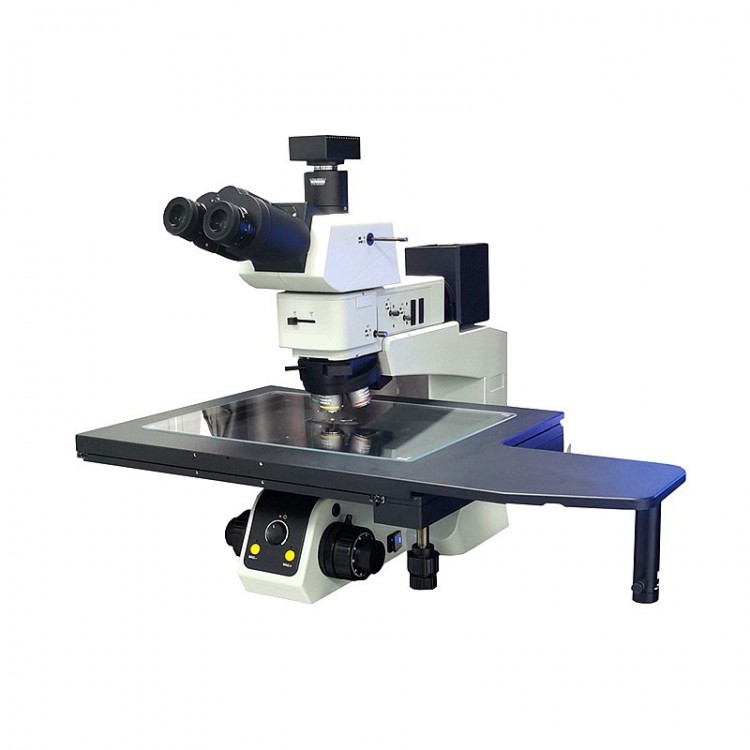

12-inch Large Platform Semiconductor Inspection Microscope MT12-BD

Optical System

Optical System with Infinite Color Difference Calibration

Optical Magnification Factor

50x - 500x (optional 1000x)

Digital Magnification Ratio

150x to 1500x (for a 21.5-inch monitor) paired with a 100x objective magnification can reach up to 3000x.

Industrial Camera

12 million 1/1.8-inch color Sony industrial chip (optional 6.3 million and 20 million pixels)

Observation Tube

Adjustable angle, erect image, infinite focal length swivel adapter eyepiece, interpupillary distance adjustment: 50mm ~ 76mm, two-stage split ratio binocular: trinocular = 100:0

Eyepiece

High Eye Point Wide Field Eyepiece SWH10X-H/23mm, adjustable diopter

Objective lens

Infinite working distance, bright/dark field semi-apochromatic metallographic objective, 5X, NA 0.15, WD 15

Infinity long working distance darkfield semi-apochromatic metallographic objective 10X NA0.30 WD8.4

Infinity-corrected long working distance achromatic objective lens, 20X, NA 0.40, WD 11.9

Infinity-corrected long working distance achromatic field semi-apochromatic metallographic objective 50X, NA 0.75, WD 3.0

Infinite working distance, bright and dark field semi-apochromatic metallurgical objective, 100X, NA 0.90, WD 1.0 (optional)

Infinite working distance, dark and bright field, fully corrected chromatic aberration, metallographic objective, 50X, NA 0.55, WD 8.0 (optional)

Infinity-correct long working distance achromatic metallurgical objective 100X, NA 0.80, WD 2.8 (optional)

Objective Converter

Manual dark and bright field 5-hole objective turret // Electric dark and bright field 5-hole changer (with DIC slot), physical button and software dual control. // Encoded objective changer

Rack

Reflective stand for use with machines, featuring a low-hand positioning coarse and fine coaxial focusing mechanism. Coarse adjustment stroke of 35mm, fine adjustment accuracy of 0.001mm. Equipped with a tension adjustment device to prevent sliding and a random upper limit device. Integrated with a 100-240V wide voltage system, utilizes digital dimming with light intensity setting and reset function.

Loading platform

14" x 12" platform, platform area 710mm x 420mm, travel range: 356mm x 305mm mechanical platform, coaxial adjustment in X and Y directions; includes quick movement device

Converging lens

Axial Color Compensating Aperture Lens (N.A. 0.9)

Reflective illuminator

Bright/dark field reflector with variable aperture diaphragm, field stop, central adjustable, with filter slot, and polarizer/analyser slot.

Lighting room

5W adjustable LED light room, transmissive and reflective universal, pre-order center

Camera Interface

Photography & Video Accessories: 0.65X, Type C Interface, Adjustable Focus (optional 0.5X/1X)

Polarized Components

Polarizing prism insert plate, 360° rotating polarizing prism insert plate

Computer

Branded computers and monitors

Measurement Software

OMT-1.5D Measurement Software, controls electric diaphragm rotation, photo-taking, video recording, measurement, scanning and uploading, real-time image stitching, depth of field merging

Ruler

High-precision micrometer caliper, graduation value 0.01mm
