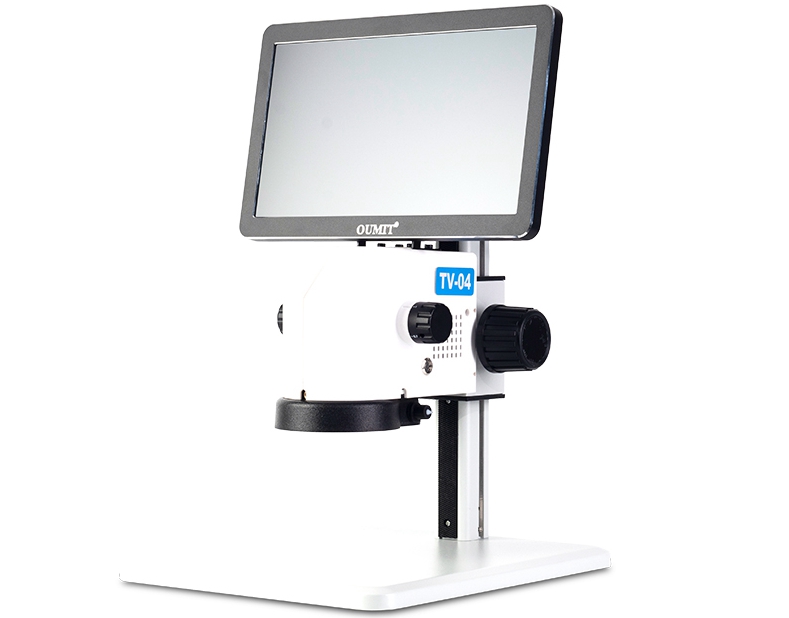

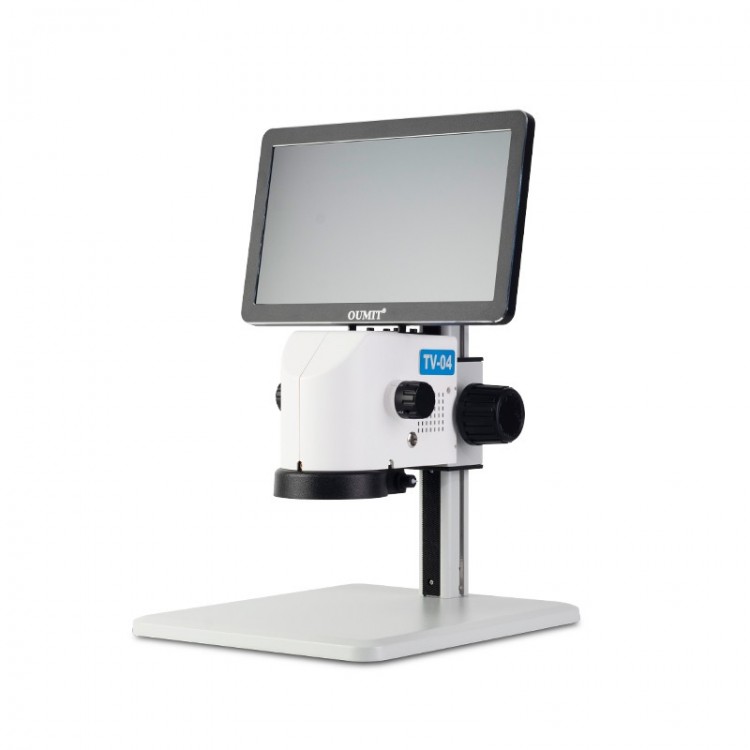

TV-04 High-Definition Measurement Video Integrated Microscope

TV-04 High-definition Measurement Video Integrated Compound Microscope

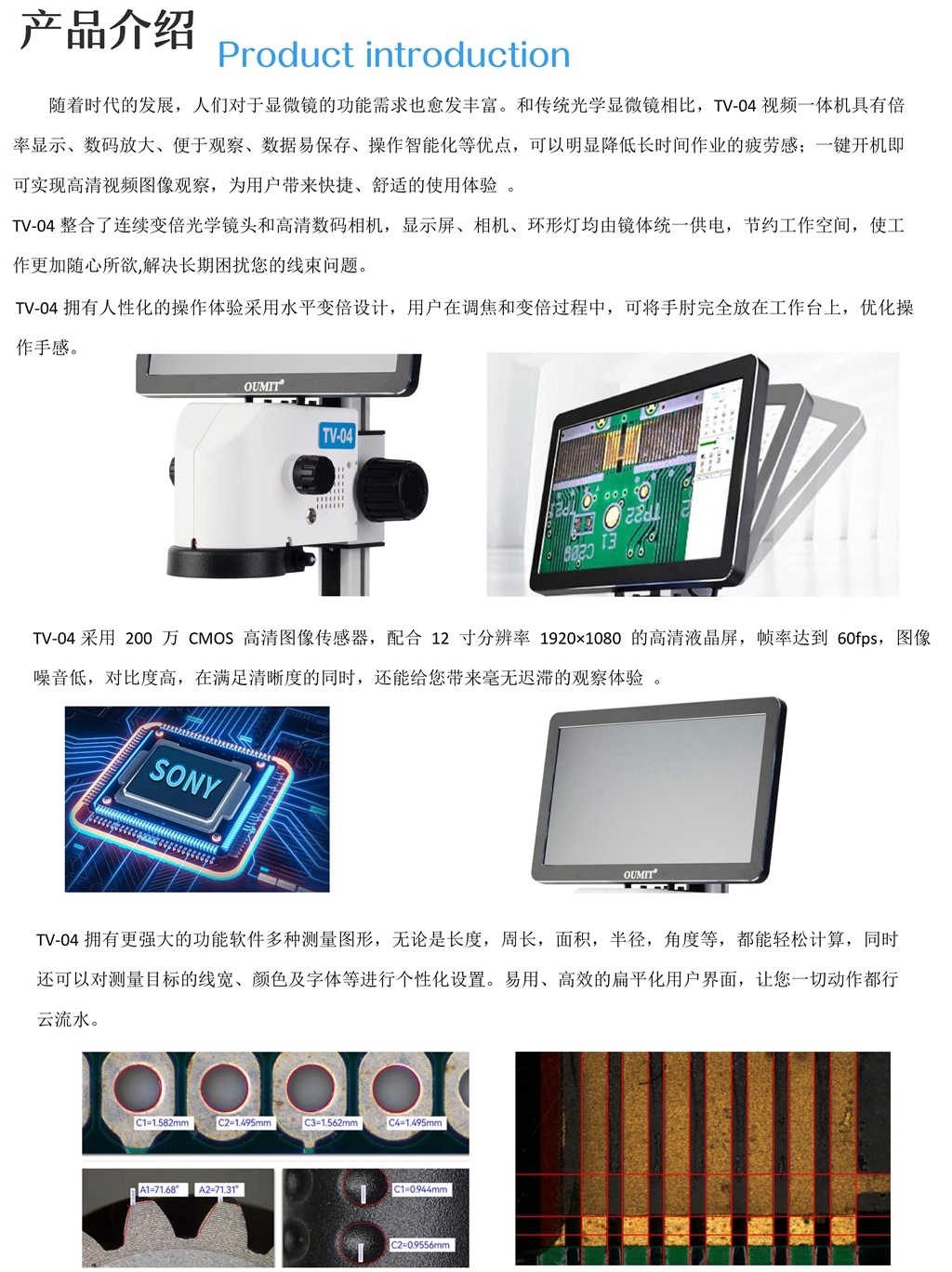

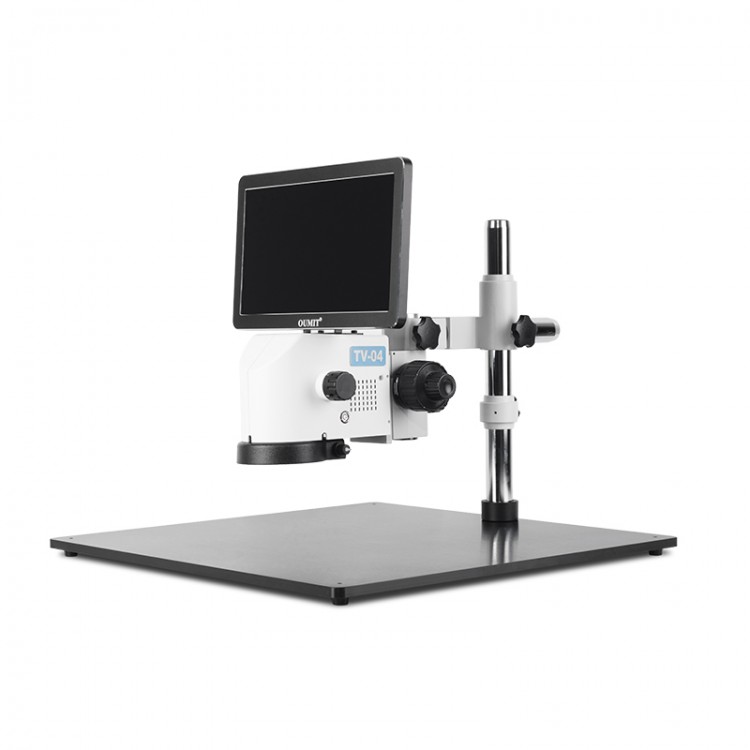

The TV-04 Digital Microscope features a compact and aesthetically pleasing design, integrating continuous zoom optics with a high-definition digital camera. All functions are concentrated in a single body, making it ideal for modern devices with limited installation space. The independent lens design allows for various base options to be selected according to customer preference.

The video all-in-one unit boasts a compact and aesthetically pleasing design, integrating a continuous zoom optical lens and a high-definition digital camera. The display, camera, and ring light are all powered by a single housing, solving the long-standing wire harness issues you've been facing. You can freely choose between a screen-equipped or screenless option based on your needs.

Multi-functional digital camera

2 million pixel high-definition CMOS image sensor, imaging excellence, capable of accurately reproducing the color, sharpness, and contrast of images; with a frame rate of over 60FPS in full HD, it ensures clarity while providing a lag-free observation experience.

Continuous zoom adjustable

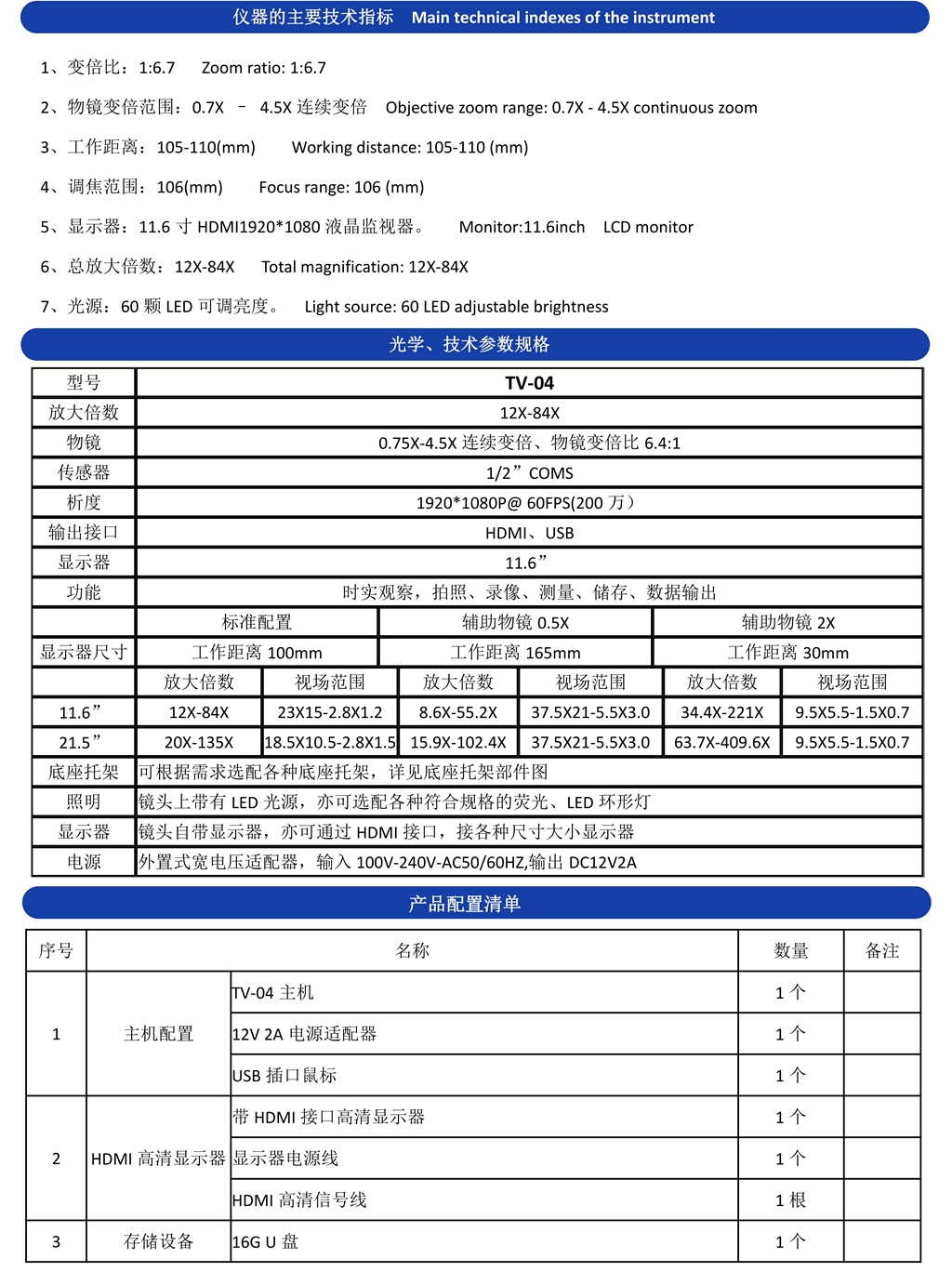

TV-04 offers a continuous zoom ratio of 6.4:1, with a zoom range of 0.7X to 4.5X. The large travel focusing mechanism allows for a wider working space, with a focusing travel of 225mm and a working distance up to 170mm, catering to sample measurement needs at different heights.

Advantages:

Our Omit products are meticulously controlled from design concept, processing technology, to assembly techniques. We provide high-quality products to our customers. We offer a complete industrial automation 4.0 design and processing solution, ensuring project success and final acceptance.

Omit has processing equipment: 12 CNC machines, 8 lathes, 11 milling machines, 3 drill presses, and 2 grinding machines. We have a team of experienced, high-quality processing technicians.

Our Omitt products are regularly sent to metrological institutions for random inspections each year, and inspection reports are issued.

Our Omite boasts designers with superior industry-level skills and experienced assembly technicians who strictly control the design and processing accuracy of products.

Service:

1. To ensure high reliability and advanced technology in our products, Omit systems are made with materials sourced from top domestic or international brands.

2. Under the same competitive conditions, our company, Omitt, sincerely offers you favorable prices without compromising the technical performance of the products or altering the product components.

3. Service Efficiency: In case of equipment failure during or after the warranty period, the supplier will provide a solution within 12 hours upon receiving notification.

4. Service Principles: The product warranty period is twelve months. Within the warranty period, Omnit will provide free repair and replacement for parts damaged due to quality issues. For parts damaged outside the warranty period, only cost price for the parts provided. For equipment damage caused by the buyer's human factors, the supplier's repair or provided parts are charged at cost price.
