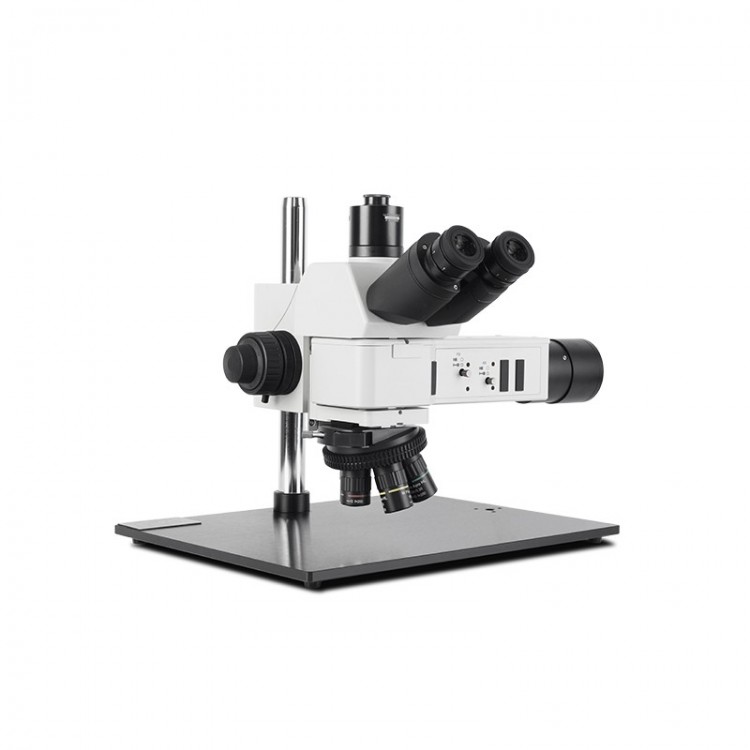

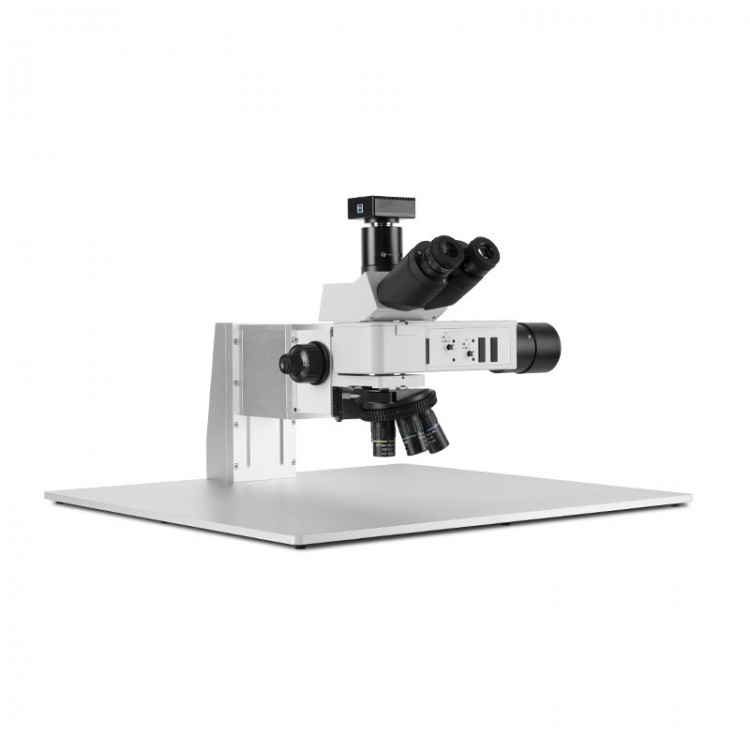

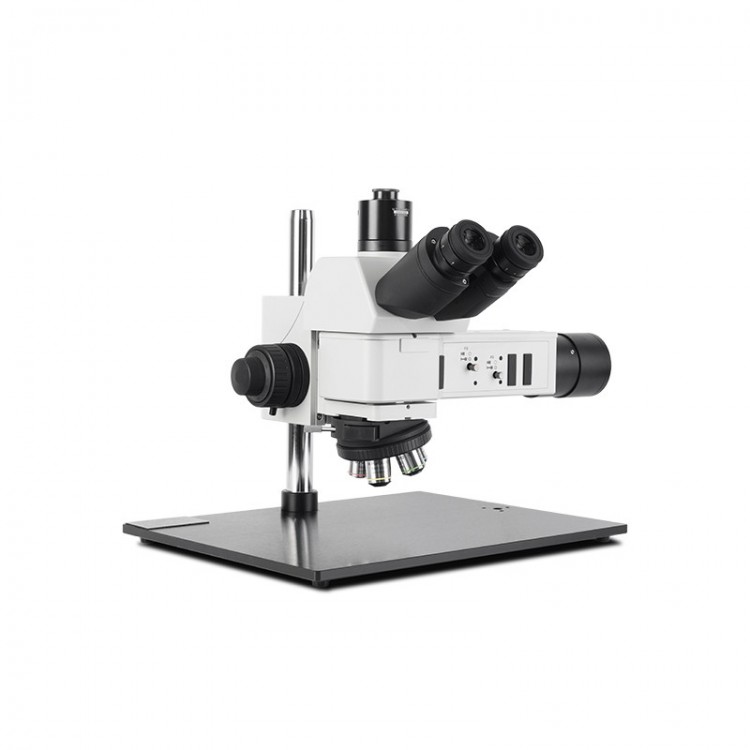

MT-B Series Long Axis Clear Field Metallographic Microscope
Model | MT-B | MT-BL | MT-BZ | MT-BLZ | |
Inverted long-axis bright field | Retrofitted Long Axis Apo | Just like the bright field of the long axis. | Just like the long shaft APO | ||
Observation tube | M-SWTR-1Reversed image three-eye viewing scope with a compact inverted optical path design. Lightweight structure for easy installation and weight reduction. | M-SWETR-2 is a three-eye sight tube similar to a hinge, with the imaging direction aligning with the actual orientation of the object. The direction of the object's movement is the same as the direction of the image plane's movement, making it convenient for observation and operation. | |||
Eyepiece | SWH10X-H/23High eye point wide field eyepieces, adjustable diopter | SWH10X-H/25High eye point wide field eyepieces, adjustable diopter | |||
Objective lens | Infinity-long working distance achromatic half-field optical microscope objective | 95MMVisible LightAPOObjective lens2X/5X/10X/20X | Infinity-corrected long working distance achromatic metallographic objective | 95MMVisible LightAPOObjective lens2X/5X/10X/20X | |
Converter | 5Inclined bore field converterDICSlot | 5Bored inclined26MMConverter, withDICSlot | 5Inclined bore field converterDICSlot | 5Bored-inclined type26MMConverter, withDICSlot | |
Optical Magnification Factor | 50Multiple-500Multiple(Optional1000Multiple) | 20Multiple-200Multiple(Optional500Multiple) | 50Multiple-500Multiple(Optional1000Multiple) | 20Multiple-200Multiple(Optional500Multiple) | |
Digital Magnification Ratio | 150Multiple-1500Multiple21.57-inch display Matching100Magnification up to3000Multiple | 60Multiple600Multiple21.54-inch monitor Matching50Magnification up to1500Multiple | 150Multiple-1500Multiple21.54-inch display Pairing100Magnification up to3000Multiple | 60Multiple600Multiple21.54-inch display Pairing50Magnification up to x1500Multiple | |
Optical System | Optical System with Infinite Color Difference Correction | ||||
Observation Method | Open Market/Oblique lighting/Adjustable Field Stop/Adjustable aperture diaphragm/Polarized Light/DIC | ||||
Base | B3Large flat base, base320mmX260mmX16mmColumn height280mmComma, diameter32mm | ||||
Focus Adjustment Bracket | Coarse fine-tuning coaxial, coarse adjustment stroke32mmFine-tuning precision0.002mm,With adjustable drawstring featuring anti-slip device | ||||
Reflective light fixture | Variable field stop and aperture stop with adjustable centers; with filter holder and polarizer slot; with inclined lighting switch rod | ||||
Light Source | 5W LEDAdjustable light source | ||||
Photography and Video Accessories | 0.35X/CTV，0.65X/CTVAll adjustable focus, digital cameras and relay mirrors | ||||
PolarizedEstablish | U-PO3Polarizing filter panelU-AN360-3Rotary360°Polarizing beam splitter plate | ||||
DICAttachment | DICPlug-in | ||||
